Product Information

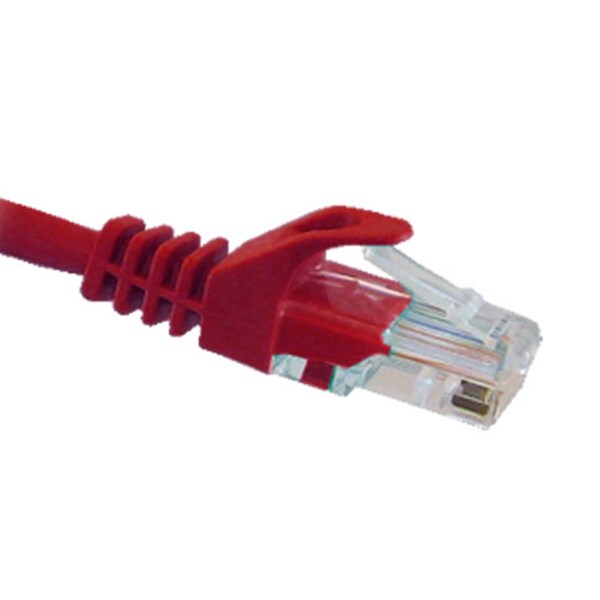

10ft Red Cat5e Snagless Patch Cable
Specifications
Technical Specification:
- Test: 100% open short & miss wire test
- Insulation Resistance: DC 300V 3MΩ
- Contactor Resistance: 3Ω
- Cable: CAT5E 7/0 19*4P
- Jacket: PVC
- PVC: 75A PVC UL 80°C
- OD: 5.4 ± 0.2mm
- 8P8C Plug: RJ45 8P8C Plug, CAT5E, Gold Plated Pin, Circle Type
Physical Characteristics:
| Conductor Size | 24AWG |
| Conductor Material | Stranded Bare Copper |
| Number of Conductors | 8 Conductors |
| Number of Pairs | 4 Pairs |
| Outer Jacket Material | PVC (Complies RoHS) |
| Contact Material | Copper |
| Contact Plating | Gold Plated |
