LightSaber Optics LSO-SIDEBOX-201611-AL
- SKU: LSO-SIDEBOX-201611-AL
$418.88 $699.00
+ $112.20 Tariff
- Manufacturer: LightSaber Optics
- Drawing Sheet: Download
Product Information

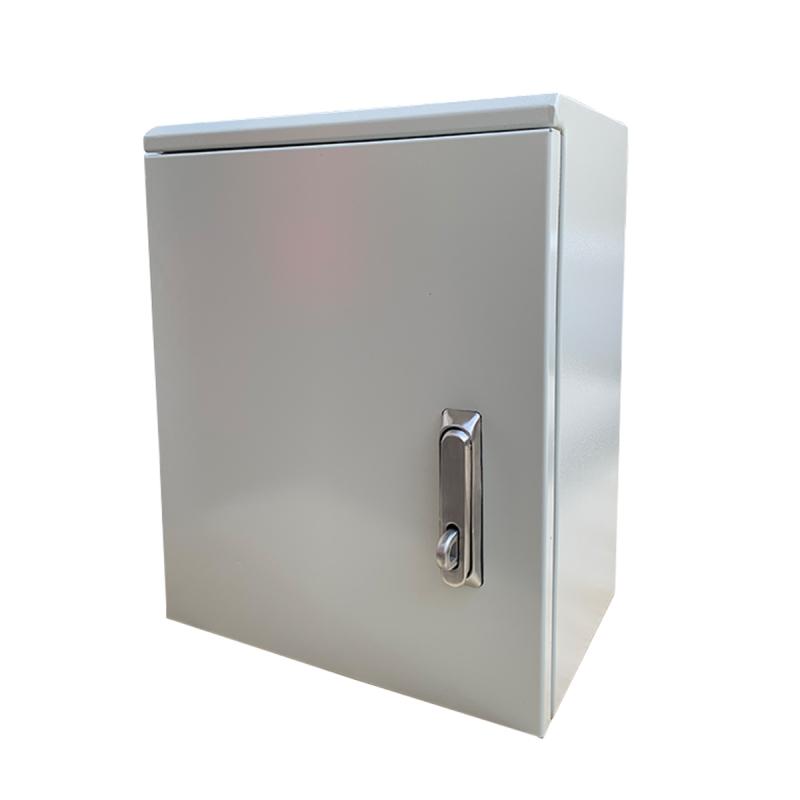

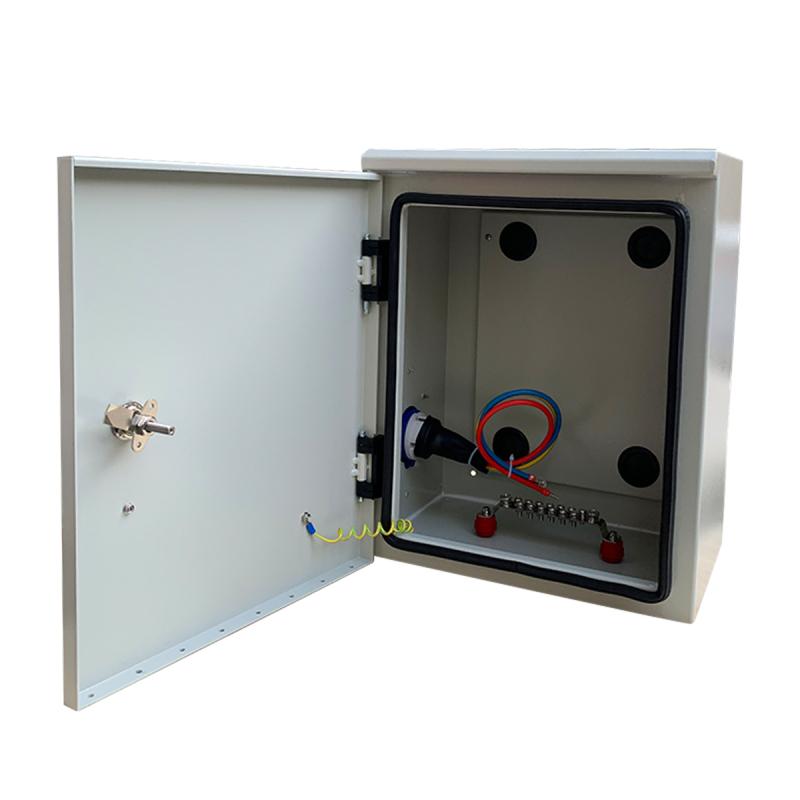

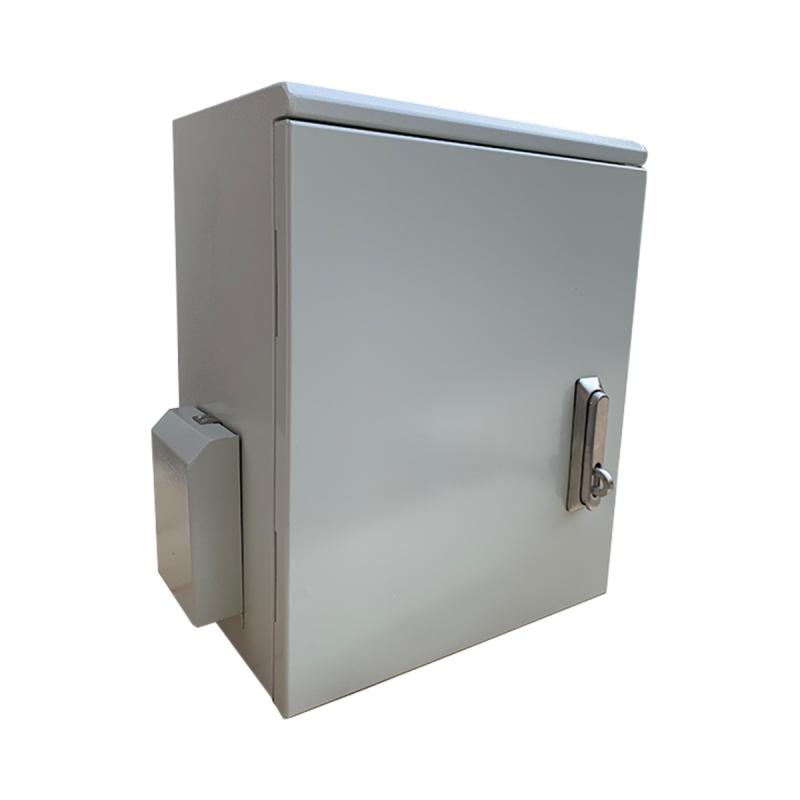

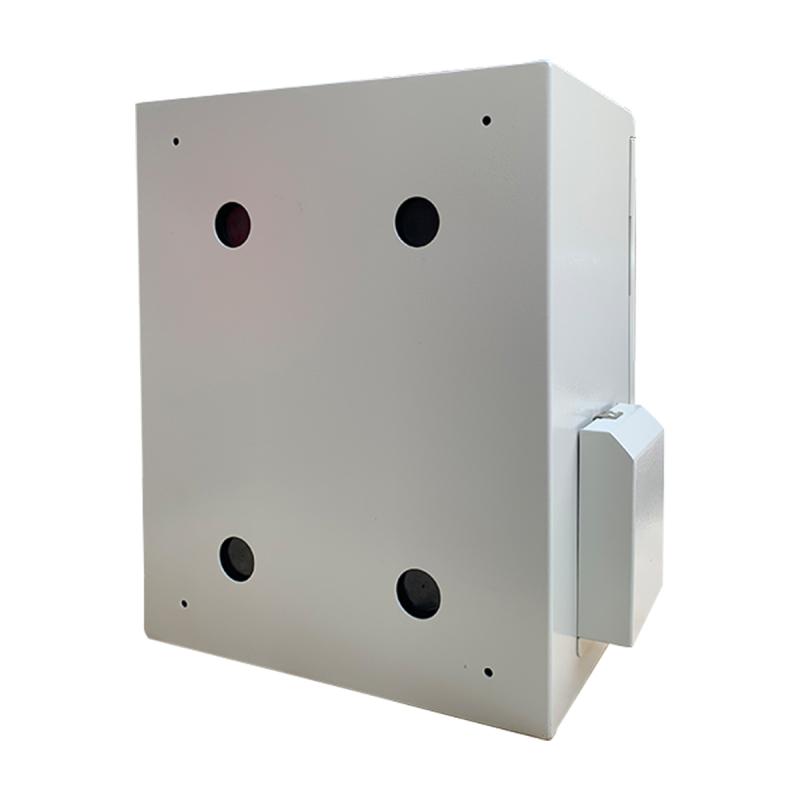

20 in Height x 15.74 in Wide x 10.79 in Deep Side Box Outdoor Enclosure, IP55 Rated
Specifications
Specifications SIDEBOX201611-AL
| Protection Class | NEMA 4X |
| Rack Unit Size | N/A |
| Cabinet Type | N/A |
| Color | Grey RAL7035 |
| Material | Aluminum |
| Unit Dimension(WxDxH) | 15.74 x 10.79 x 19.68 inches |
| Unit Weight(lbs.) | 19.84 |
| Internal Depth (Front Rail to Back Door) | N/A |
| Rail to Rail Depth | N/A |
| Shipping Dimension(WxDxH) | 24 x 14.57 x 27.95 inches |
| Shipping Weight(lbs.) | 22.04 |
| Electrical | |
| Cooling | N/A |
| Heating | N/A |
| Grounding | Earthing Copper Bar,Grounding Wires |
| Other | Single Phase 60AMP generator socket |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1 Year |
