MikroTik Cloud Core Router CCR1016-12S-1S+
- SKU: CCR1016-12S-1S+
$815.00
- Manufacturer: MikroTik
- MikroTik-Cloud-Core-Router-CCR1016-12S-1S+-Datasheet: Download
Product Information

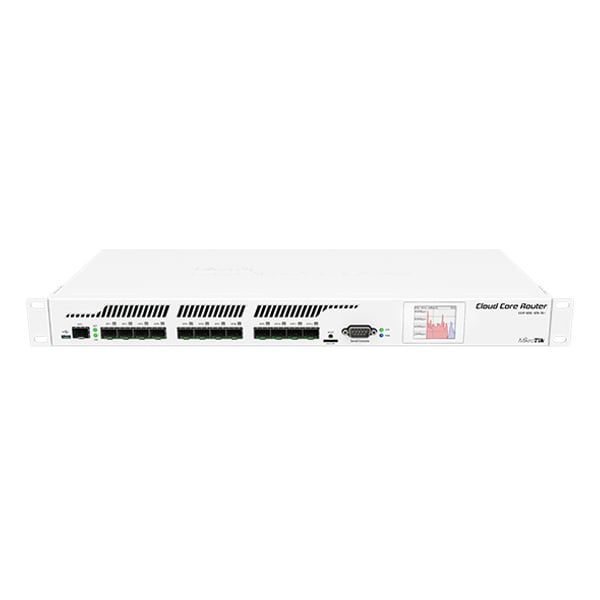

The MikroTik CCR1016-12S-1S+ industrial grade cloud core router with cutting edge 16 core CPU. This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and has a serial console port, a touchscreen LCD, and a USB port. The CCR1016-12S-1S+ has redundant power supplies and one RJ45 SFP 10/100/1000M copper module.
Product Features
- 12x SFP ports for 1 Gigabit connectivity
- SFP+ port for 10 Gigabit connectivity
- 16-core Tilera CPU, 1.2 GHz clock per core
- 12Mbs total on-chip cache
- State-of-the-art TILE GX architecture
- Ports directly connected to the CPU
- 1U rackmount case
- Color touchscreen LCD

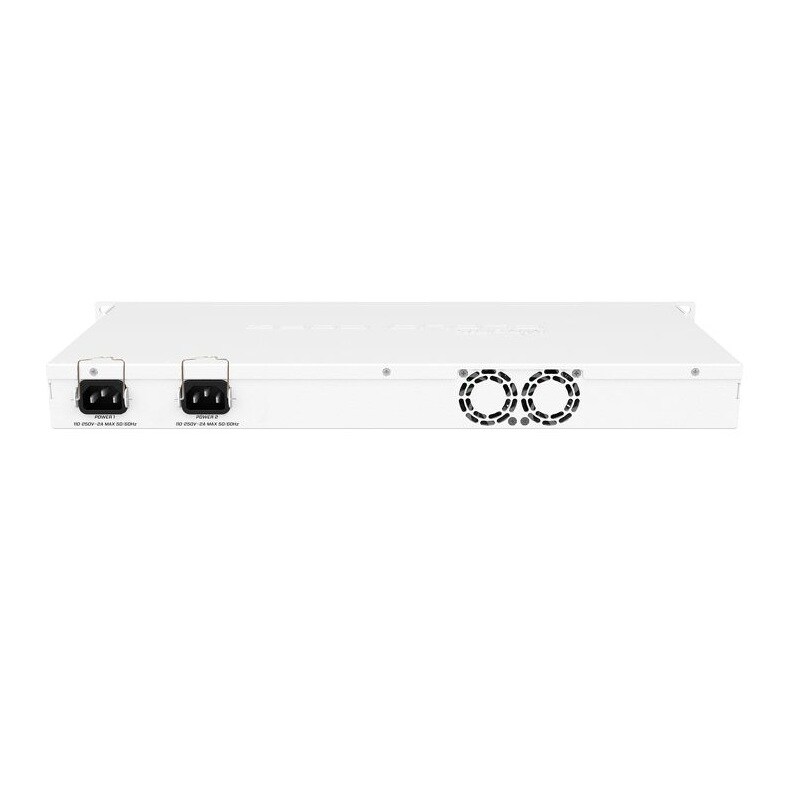

- Two power supplies for redundancy
Specifications
Specifications CCR1016-12S-1S+
| Product code | CCR1016-12S-1S+ |
| CPU nominal frequency | 1.2 GHz |
| SFP DDMI | Yes |
| CPU core count | 16 |
| Architecture | TILE |
| Size of RAM | 2 GB |
| Number of USB ports | 1 |
| Power Jack | 2 |
| Supported input voltage | 24 V - 24 V |
| PoE in | Yes |
| Voltage Monitor | Yes |
| CPU temperature monitor | Yes |
| Tested ambient temperature | -20C .. +60C |
| Operating System | RouterOS v6 |
| CPU temperature monitor | Yes |
| License level | 6 |
| Current Monitor | Yes |
| CPU | TLR4-01680CG-12CE-A3a |
| Max Power consumption | 44W |
| SFP ports | 1 |
| SFP+ ports | 1 |
| USB slot type | microUSB type AB |
| Serial port | RS232 |
| Storage type | NAND |
| Storage size | 128 MB |
