MikroTik 2GHz MiniPCI-Express Card
- SKU: R11e-2HnD
$37.83 $39.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information

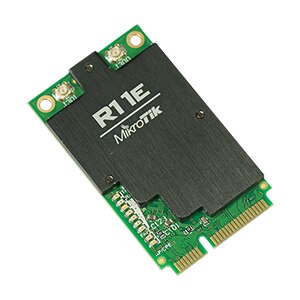

The MikroTik R11e-2HnD 2GHz miniPCI-express card. It is a Low-profile Lower power version of MikroTik's 2.4GHz miniPCIe card and has a small heat-sink, u.Fl connectors and less output power. Low profile is useful if you need to install the card in device like a laptop.
Specifications
Specifications R11e-2HnD
| Chipset | AR9580 |
| Frequency Range | 2192-2732 MHz |
| Standards | 802.11b/g/n |
| Max Output Power | 800mW |
| Format | miniPCIe |
| Dimensions | 51x30x6mm |
| Connectors | 2x uFL |
| MAX Power Consumption | 5W |
| TX/RX at MCS0 | 29dBm / -96dBm |
| TX/RX at MCS7 | 24dBm / -76dBm |
| TX/RX at 6Mbit | 29dBm / -96dBm |
| TX/RX at 54Mbit | 25dBm / -80dBm |
