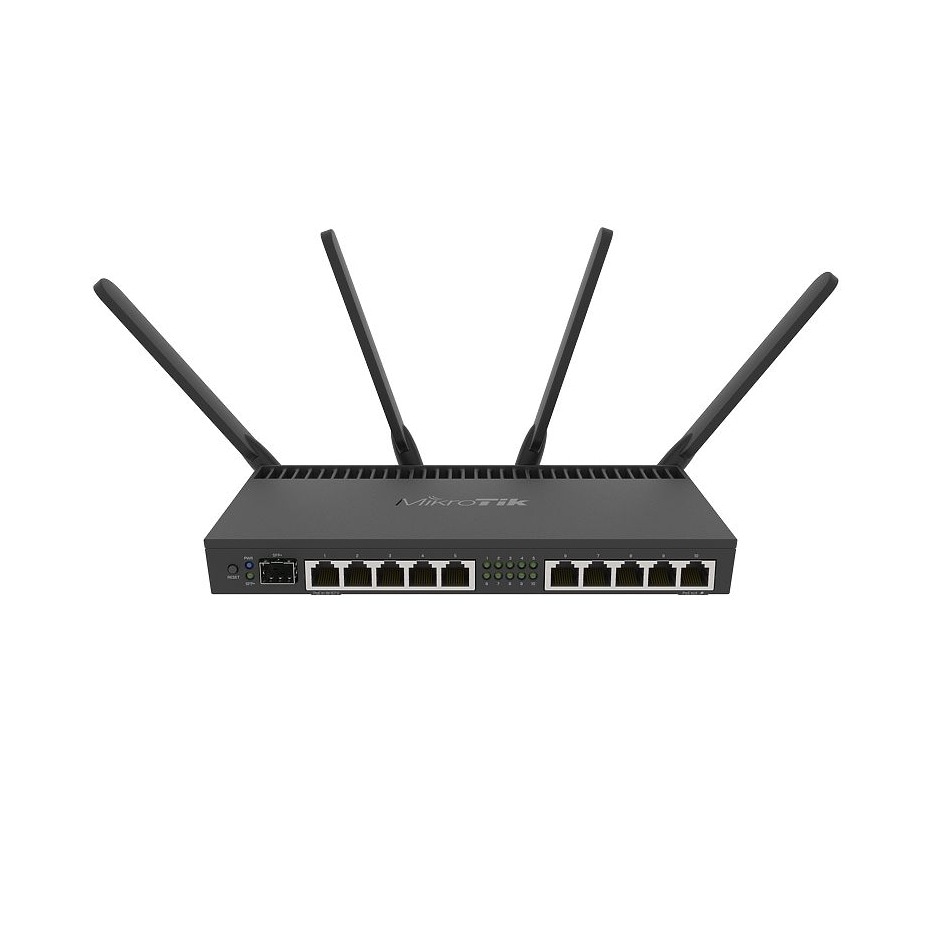

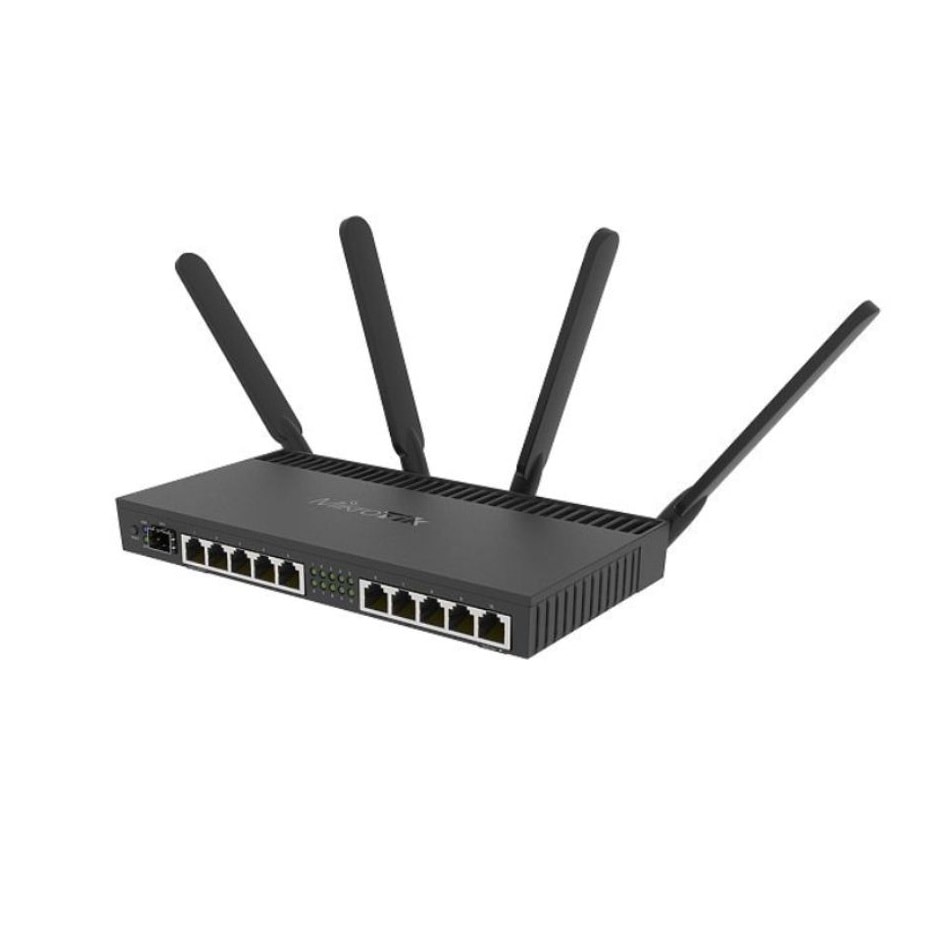

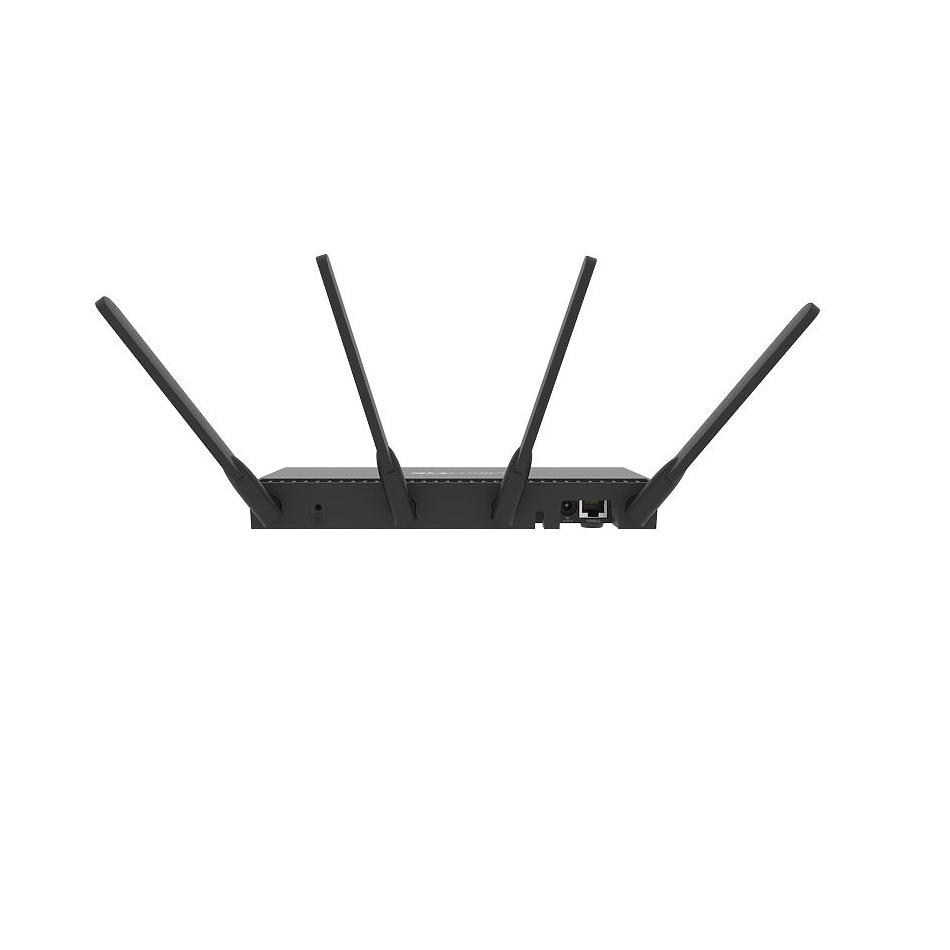

MikroTik RouterBOARD 4011iGS+5HacQ2HnD-IN
- SKU: RB4011iGS+5HacQ2HnD-IN
Product Information
WAV supplies the MikroTik RouterBOARD 4011iGS+5HacQ2HnD-IN, a powerful 10xGigabit port router with a quad-core 1.4GHz CPU, 1GB RAM, SFP+ 10Gbps cage, and dual band 2.4GHz / 5GHz 4x4 MIMO 802.11a/b/g/n/ac wireless.
The RB4011 uses a quad core Cortex A15 CPU, same as in MikroTik's carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.
This version, RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range. (Specific frequency range can be limited by country regulations).
Specifications
Specifications RB4011iGS+5HacQ2HnD-IN
| CPU | 4 core AL21400 1.4 GHz |
| Size of RAM | 1 GB |
| Storage | NAND 512 MB |
| 10/100/1000 Ethernet ports | 10 |
| SFP+ port | 1 |
| Switch chip model | RTL8367SB |
| Wireless | 2.4 GHz radio 5 GHz radio |
| Wireless regulations | Specific frequency range may be limited by country regulations |
| Operating frequency | 2412 - 2484 MHz 5150 - 5875 MHz |
| Wireless interface model | R11e-2HnD QCA-9984 |
| Supported protocol | 802.11b/g/n 802.11a/n/ac |
| Chains | 2 4 |
| Antenna beam width | 360° |
| Antenna gain | 3 dBi (2 antennas dual band, 2 antennas single 5 GHz band) |
| Power Jack | 1 |
| PoE in | Yes (port 1), passive, 18 - 57 V |
| PoE out | Yes (port 10), passive, up to 57 V |
| Max power consumption | 23 W without PoE out, 44 W with PoE out |
| Supported input voltage | 12 V - 57 V (jack) |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Operating temperature | -40 C .. +45 C |
| Dimensions | 228 x 120 x 30 mm |
| Serial port | RJ45 |
| License level | 5 |
| Operating System | RouterOS |
