Primus Cable K52-159/L90/RD
- SKU: K52-159/L90/RD
$2.69
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information

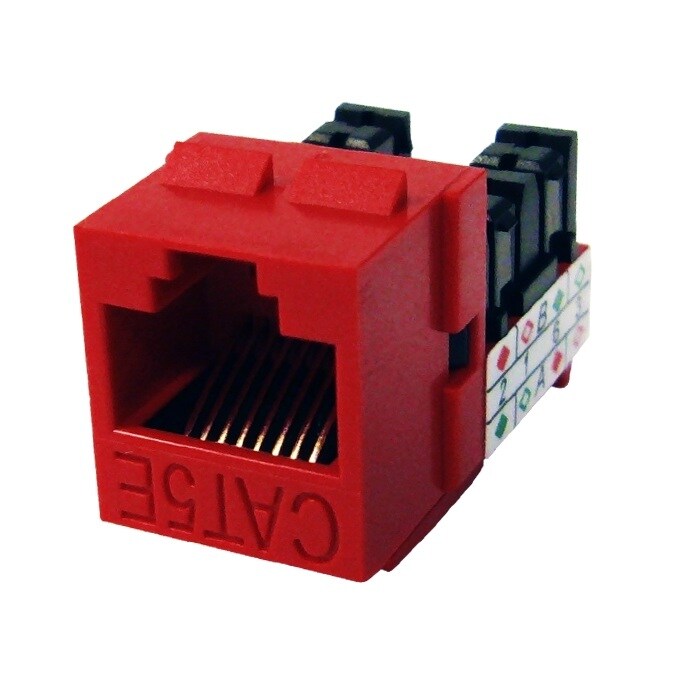

Keystone Jack - CAT5E, MIG+, Data Grade, P-fit High Density, 90 Degree, RJ45, 8x8 - Red
Specifications
Specifications K52-159/L90/RD
Jack Construction
| Jack Housing | ABS High-Impact UL94V-0 Thermoplastic |
| Spring Wire | Bronze Gold Plated Over Nickel |
| IDC Housing | Polycarbonate High-Impact UL94V-0 |
| IDC Contacts | 0.4mm Phosphor Bronze, 200u” Tin Over 50u Nickel |
| IDC Wire Range | Solid 24 AWG - 26 AWG |
| Number of Prongs | 8 |
| Number of Conductors | 8 |
| Dimensions | |
| Width | 14.60 mm |
| Height: | 19.50 mm |
Electrical Characteristics
| Insulation Resistance | 500MΩ |
| Dielectric Withstanding Voltage | 1000v |
| DC Current Rating | 1.5 amps |
| DC Resistance | 0.1Ω |
| Contact Resistance | 20Ω |
| Minimum Temperature | -10°C |
| Maximum Temperature | 60°C |
| Standard Verification | |
| TIA/EIA-568-B.2-1 | |
| UL 1863 | |
| UL Certifi ed Cat 5E | |
| ACA Compliant (N13181) | |
| RoHS Complaint | |
