Shireen Outdoor CAT5e FTP Shielded Cable 1000FT Spool
- SKU: DC-1021
$237.30 $248.00
- Manufacturer: Shireen
- Data Sheet: Download
Product Information
Product Applications
- Best usage for outdoor applications of networking, data trasfer, and phone lines

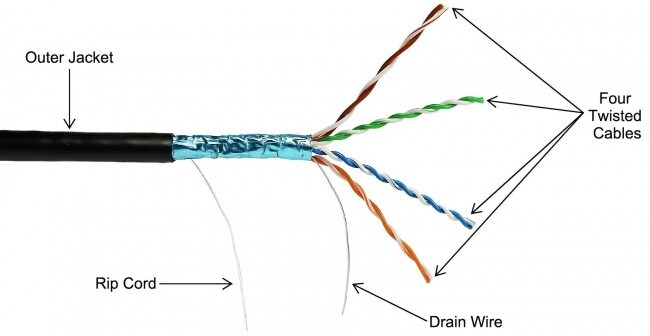

- Features 4 twisted pairs of 24 AWG wire with Alluminum Foil Shielding and Drain Wire
- Supports CAT5e cables

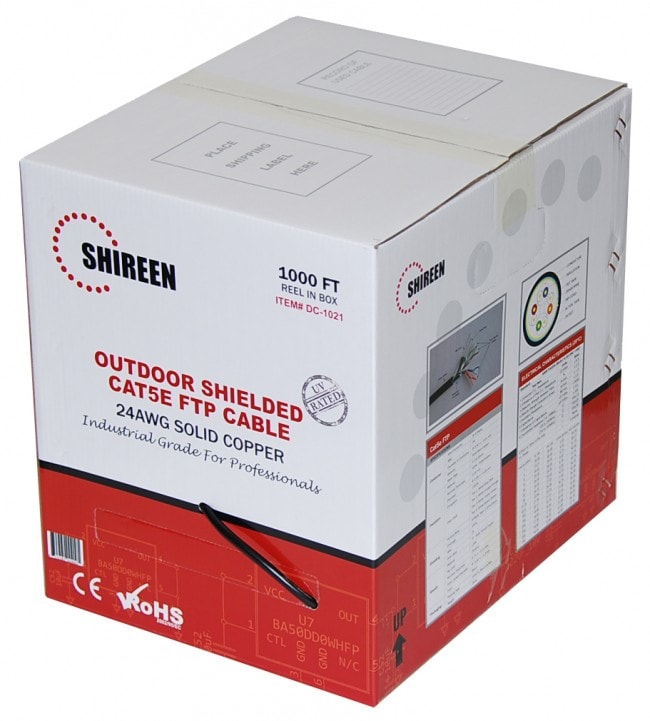

- Shireen Outdoor CAT5e FTP Shielded 1000 Ft Spool
Specifications
Specifications DC-1021
Conductor
| Pairs | 4 |
| Total Conductor | 8 |
| AWG | 24 |
| Dia. of Conductor | Φ 0.50±0.01mm |
| Material | Solid Bare Copper |
| Elongation | ≥15% |
Insulation
| Material | HDPE |
| Nom. Thickness | 0.24mm |
| Dia. | Φ 0.95±0.05mm |
| Elongation | ≥300% |
| Length of Lay | < 30 mm |
Shielding
| Vertical Wrap | Al-Mylar Tape 0.055×18mm |
| Coverage % | 100% |
| AWG | 24 |
| Drain Wire | TC - Solid Tinned Copper |
Sheath
| Material | Inner: PVC Outer: LDPE |
| Rip Cord | 200D×3 |
| Nom. Thickness | 0.75±0.03mm |
| O.D. | Φ 6.50±0.3mm |
| Color | Black |
