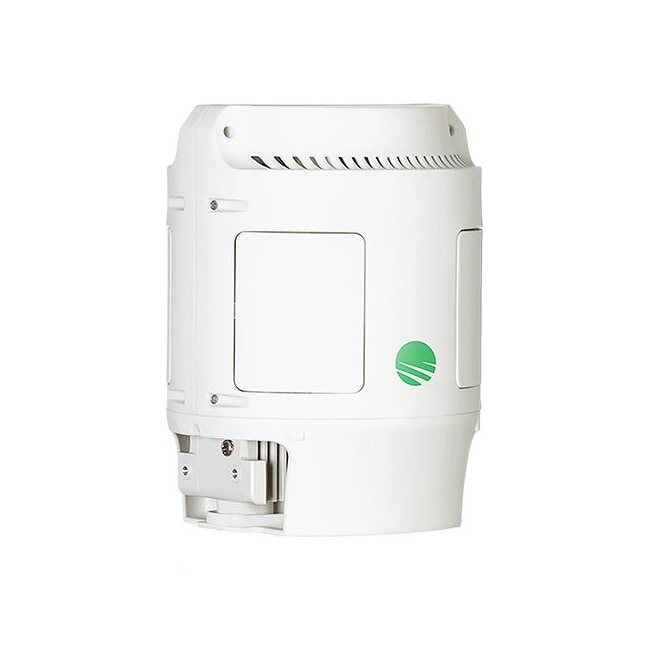

MultiHaul TG Node 360° 3800Mbps 35W PoE-Out
- SKU: MH-N366-CCP-PoE-MWB
$3,384.00
- Manufacturer: Siklu
- Data Sheet: Download
Product Information
Product Applications
- Fixed Wireless Access, Gigabit to the Home, the MDU and Enterprise
- Security / Safe City Networks
- Wi-Fi hotspot backhaul
- Smart City Business Services, Municipal Networks
- Small Cell backhaul

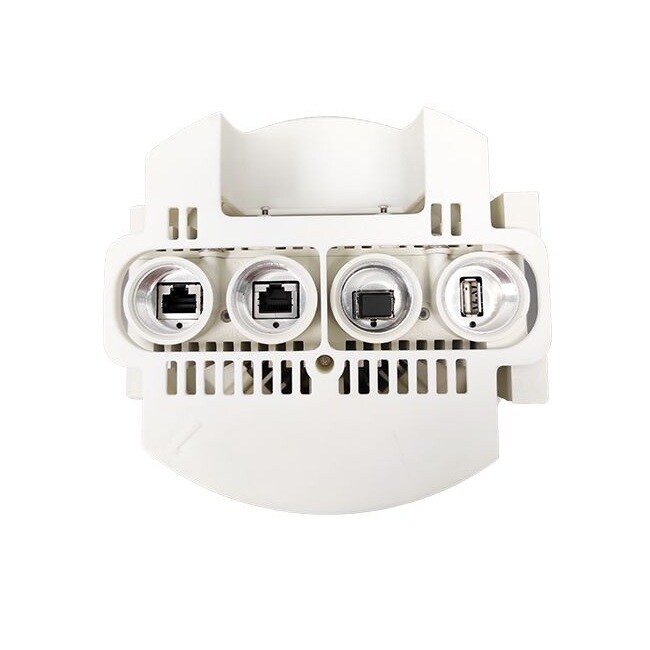

- 1x 10/5/2.5/1Gbps copper port (PoE-In, 65/90W)
- 1x 1Gbps copper port (PoE-Out 35W)
- 1x SFP+ port 10GbE
- 360° MultiHaul Terragraph (TG) Node

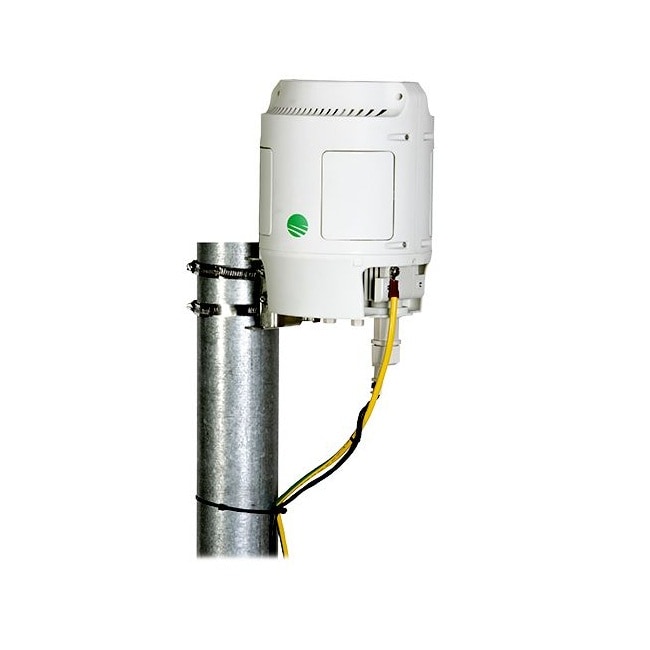

- Mounting kit
Specifications
Specifications MH-N366-CCP-PoE-MWB
| Ethernet Features | • IEEE 802.1d transparent bridging • Provider bridge - VLAN & VLAN stacking |
| Security | AES 128-bits OTA, GUI over HTTPS, CLI over SSH |
| Management & Provisioning | In-band, Out-of-band management, Web GUI (one-pane configuration of local and remote units) & Embedded CLI, NETCONF |
| Conformance | |
| Radio | US FCC 47 CFR Part 15.255; EN 302 567 |
| EMC | US FCC 47 CFR Part 15; EN 301 489 |
| Safety | UL/IEC 62368-1; UL/IEC 60950-22 |
| Terragraph | Terragraph certified |
| Power | PoE, 55W no POE-Out, 90W with 35W POE-Out (PoE-In: IEEE 802.3bt or passive; PoE-Out: IEEE 802.3bt) |
| Operating Temperature | -49° - +131°F (-45° - +55°C) |
| Ingress Protection Rating | IP67 |
| Dimensions | 9.4 x 7.3 in. / 236 x 186 mm. (height x diameter). |
| Weight | 7.9 lbs. / 3.6 Kg. |
