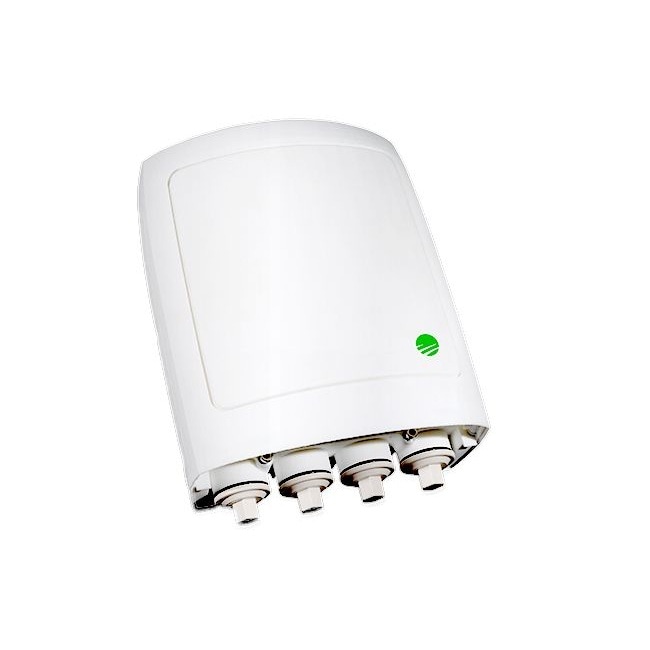

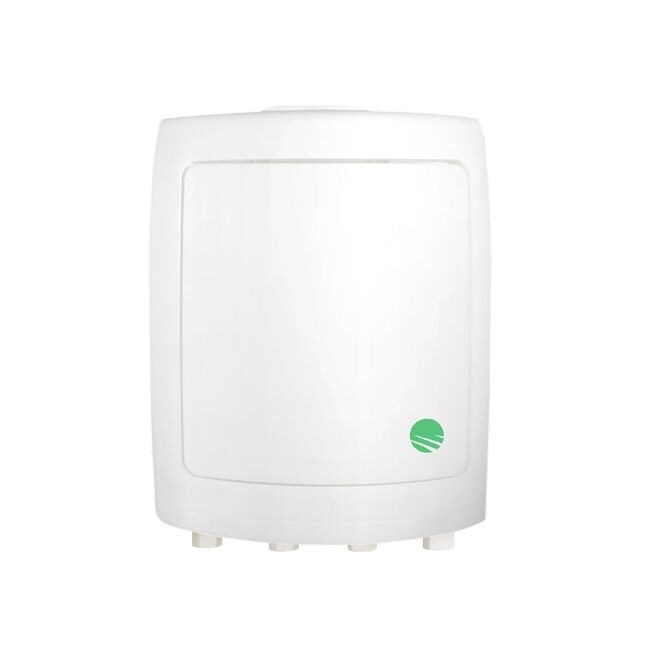

Siklu MultiHaul Terragraph Terminal Unit
- SKU: MH-T265-CCP-PoE-MWB
$1,485.00
- Manufacturer: Siklu
- Data Sheet: Download
Product Information
The Siklu MultiHaul TG system marks the release of Siklu’s 3rd generation point to multipoint 60GHz products, this one with Terragraph certification. The Terragraph network solution consists of Nodes operating over millimeter waves in a redundant mesh topology which also connect to Terminal Units (TU). The Siklu T265 communicates to the N366 Terragraph Distribution Node using the Terragraph protocol, acting as an endpoint in a fully meshed MH Terragraph topology. The T265 is Siklu’s first Terragraph Terminal Unit and incorporates several features from our standard MH TU. The T265 offers up to 3 ports with copper and fiber interfaces and a PoE out port to power third-party devices such as video cameras.
Product Applications- Fixed 5G Wireless Access, Gigabit to the Home, the MDU, and the Enterprise
- Wi-Fi Hotspot Backhaul
- Security / Safe City Networks
- Smart City Business Services, Municipal networks
- Small Cell Backhaul
- Fiber hand-off
Specifications
Specifications MH-T265-CCP-PoE-MWB
| Ethernet Features | • IEEE 802.1d transparent bridging • Provider bridge - VLAN & VLAN stacking |
| Security | AES 128-bits OTA, GUI over HTTPS, CLI over SSH |
| Management & Provisioning | In-band, Out-of-band management, Web GUI (one-pane configuration of local and remote units) & Embedded CLI, NETCONF |
| Conformance | |
| Radio | US FCC 47 CFR Part 15.255; EN 302 567 |
| EMC | US FCC 47 CFR Part 15; EN 301 489 |
| Safety | UL/IEC 62368-1; UL/IEC 60950-22 |
| Terragraph | Terragraph certified |
| Power | PoE, 35W no POE-Out 90W with 65W PoE-Out |
| PoE-In | IEEE 802.3bt or passive PoE-Out: IEEE 802.3bt |
| Operating Temperature | -49° - +131°F (-45° - +55°C) |
| Ingress Protection Rating | IP67 |
| Dimensions | 6.9 x 8.6 x 4.9 in. / 175 x 220 x 125 mm. (W x H x D). |
| Weight | 4.84 lbs. / 2.2 Kg. |
