TP-Link BE11000 Wall Plate Wi-Fi 7 Access Point
- SKU: EAP775-Wall
$179.99
- Manufacturer: TP-Link
Product Information
BE11000 Wall Plate Wi-Fi 7 Access Point
Features:
- 6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 4324 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz
- Paintable Cover & Versatile Mounting Design: Seamless integrated into any indoor environment.
- 1× 2.5G Uplink Port: Ensures fast connectivity throughout the network.
- Multiple Downlink with PoE Flexibility: One 2.5G and three Gigabit ports, with two Gigabit ports supporting dual PoE output or single PoE+ output.
- Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
- Easy Setup: Work with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.
Specifications
Specifications EAP775-Wall
| HARDWARE FEATURES | |

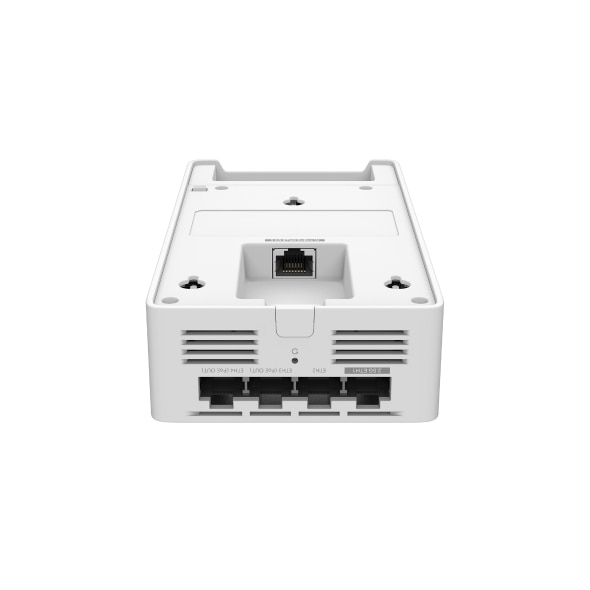

| Interface | • Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two of the Gigabit ports support flexible PoE Out, offering either two PoE Out ports or one PoE+ Out port. The PoE pass-through feature requires 802.3at/bt input.) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3at/bt PoE |
| Dimensions ( W x D x H ) | 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm) |
| Antenna | 6× Internal Antennas • 2.4 GHz: 2× 5 dBi • 5 GHz: 2× 5 dBi • 6 GHz: 2× 6 dBi |
| Bluetooth | V5.2 |
| Mounting | Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Concurrent Clients | 380+§ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Signal Rate | • 6 GHz: Up to 5765 Mbps • 5 GHz: Up to 4324 Mbps • 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | • MLO‡ • 4K-QAM‡ • Multi-RUs‡ • 240 MHz Bandwidth‡ • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming△ • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Certification | FCC, RoHS |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
