TP-Link BE15000 Ceiling Mount Wi-Fi 7 Access Point
- SKU: EAP787
$249.99
Product Information
BE15000 Ceiling Mount Wi-Fi 7 Access Point

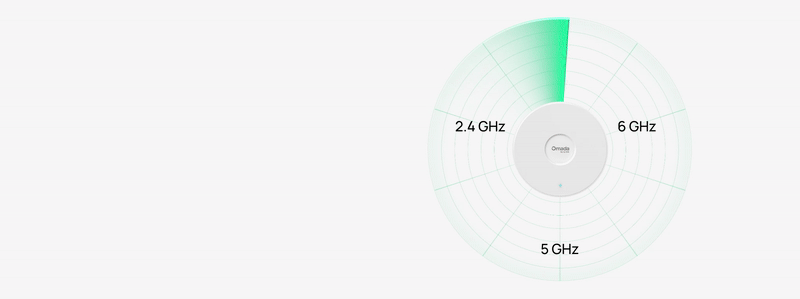

Dedicated RF Scanning for Higher Efficiency in O&M
- Real-Time Tri-Band Scanning and Spectral Analysis
- Over-the-Air Packet Capture
- Continuous Scanning without Disrupting Data Transmissions
- Interference Source Identification
Optimized Wired Performance with 10G PoE++ Port
With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment.
Boosted Network Security
- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection
Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

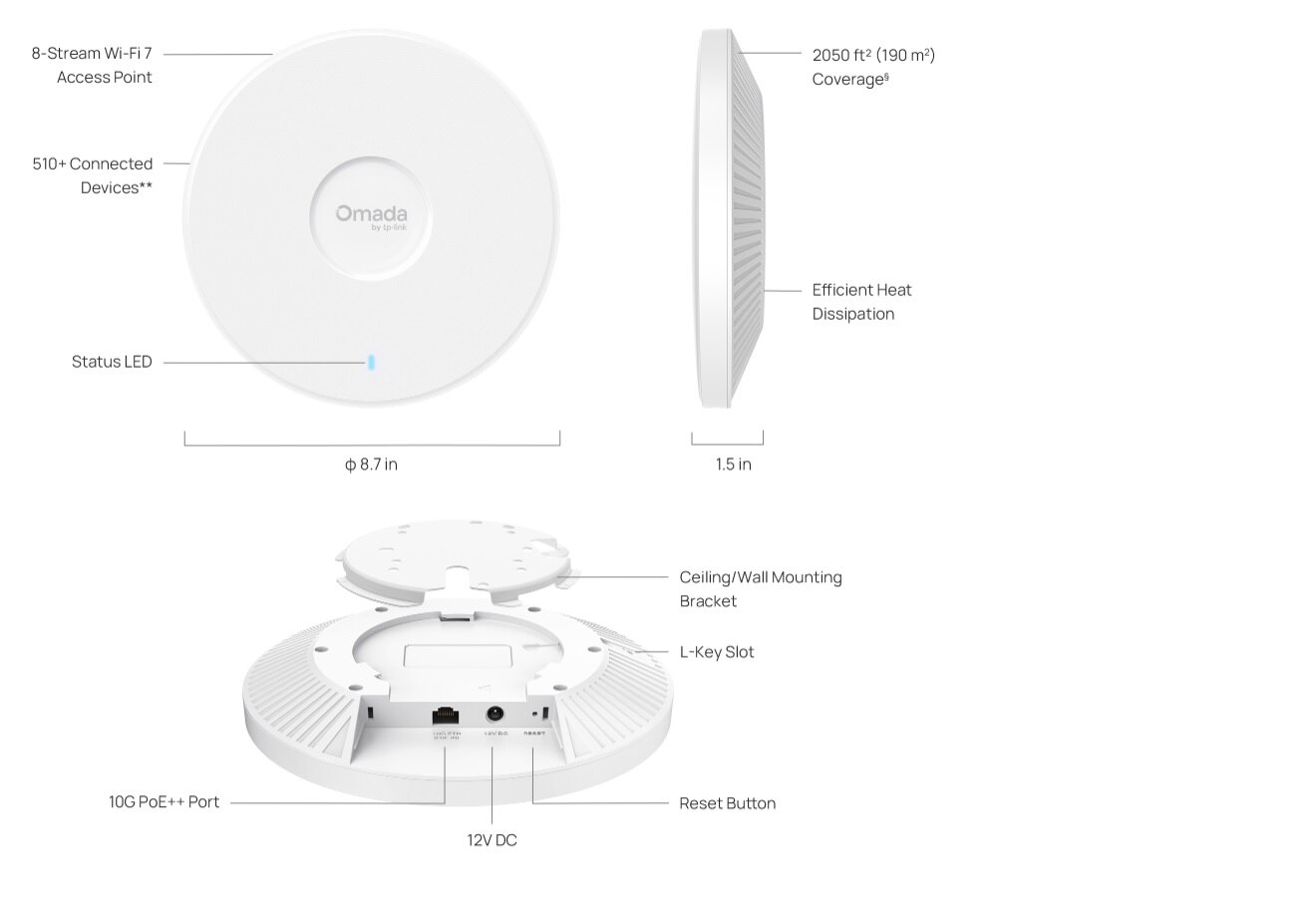

Features:
- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
- Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance#
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 2050 ft² (190 m²)* for reliable and extensive wireless connectivity.
Specifications
Specifications EAP787
| Wi-Fi Standards | 6 GHz: IEEE 802.11ax/be 5 GHz: IEEE 802.11a/n/ac/ax/be 2.4 GHz: IEEE 802.11b/g/n/ax/be |
| Spatial Streams | 2.4 GHz: 2×2 Uplink/Downlink with 2 spatial streams • 5 GHz:4×4 Uplink/Downlink with 4 spatial streams • 6 GHz: 2×2 Uplink/Downlink with 2 spatial streams • Support MU-MIMO |
| Frequency Bands | 2.400 to 2.4835 GHz ISM 5.150 to 5.250 GHz U-NII-1 5.250 to 5.350 GHz U-NII-2A 5.470 to 5.725 GHz U-NII-2C 5.725 to 5.850 GHz U-NII-3/ISM 6.105 to 6.425 GHz U-NII-5 6.425 to 6.525 GHz U-NII-6 6.525 to 6.875 GHz U-NII-7 6.875 to 7.125 GHz U-NII-8 *Note: Country-Specific Restriction Apply |
| Bandwidth | 2.4 GHz: 20 MHz/40 MHz 5 GHz: 20 MHz/40 MHz/80 MHz/160/240 MHz 6 GHz: 20 MHz/40 MHz/80 MHz/160 MHz/320 MHz *Note: Country-Specific Restriction Apply |
| Wireless Data Rate | 2.4 GHz + 5 GHz + 6 GHz:15101 Mbps • 2.4 GHz: 8.6 Mbps to 688 Mbps (MCS0-MCS13, NSS=1 to 2, EHT20/40) • 5 GHz: 8.6 Mbps to 8648 Mbps (MCS0-MCS13, NSS=1 to 4, EHT20/40/80/160/240) • 6 GHz: 8.6 Mbps to 5765 Mbps (MCS0-MCS13, NSS=1 to 2, EHT20/40/80/160/320) |
| Radio Technology | Uplink/downlink OFDMA (Orthogonal Frequency-Division Multiple Access) |
| Modulation Type | 4096-QAM, 1024-QAM, 256-QAM. 64-QAM, 16-QAM, QPSK, BPSK |
| Frame Aggregation | A-MPDU (Aggregate MAC Protocol Data Unit) for Tx/Rx • A-MSDU (Aggregate MAC Service Data Unit) for Tx/Rx |
| Others | • Preamble Puncturing • BSS Coloring • Multi-Link Operation (MLO) • TWT (Target Wake Time) • Maximal Ratio Combining (MRC) • Transmit Beamforming (TxBF) • Wi-Fi Protect Access 3 (WPA3) • Dynamic Frequency Selection (DFS) • Cycle Delay Diversity (CDD) • Cycle Shift Diversity (CSD) • Space-Time Block Coding (STBC) • Low-Density Parity Check (LDPC) |
| Spatial Streams | 2.4 GHz: 2×2 Uplink/Downlink with 2 spatial streams • 5 GHz:4×4 Uplink/Downlink with 4 spatial streams • 6 GHz: 2×2 Uplink/Downlink with 2 spatial streams • Support MU-MIMO |
| Frequency Bands | 2.400 to 2.4835 GHz ISM 5.150 to 5.250 GHz U-NII-1 5.250 to 5.350 GHz U-NII-2A 5.470 to 5.725 GHz U-NII-2C 5.725 to 5.850 GHz U-NII-3/ISM 6.105 to 6.425 GHz U-NII-5 6.425 to 6.525 GHz U-NII-6 6.525 to 6.875 GHz U-NII-7 6.875 to 7.125 GHz U-NII-8 *Note: Country-Specific Restriction Apply |
| Bandwidth | 2.4 GHz: 20 MHz/40 MHz 5 GHz: 20 MHz/40 MHz/80 MHz/160 MHz 6 GHz: 20 MHz/40 MHz/80 MHz/160 MHz *Note: Country-Specific Restriction Apply |
| Wireless Data Rate | • 2.4 GHz: 8.6 Mbps to 573 Mbps (MCS0-MCS11, NSS=1 to 2, HE20/40) • 5 GHz: 8.6 Mbps to 4804 Mbps (MCS0-MCS11, NSS=1 to 4, HE20/40/80/160) • 6 GHz: 8.6 Mbps to 2402 Mbps (MCS0-MCS11, NSS=1 to 2, HE20/40/80/160) *Note: Country-Specific Restriction Apply |
| Radio Technology | Uplink/downlink OFDMA (Orthogonal Frequency-Division Multiple Access) |
| Modulation Type | 1024-QAM, 256-QAM. 64-QAM, 16-QAM, QPSK, BPSK |
| Frame Aggregation | A-MPDU (Aggregate MAC Protocol Data Unit) for Tx/Rx • A-MSDU (Aggregate MAC Service Data Unit) for Tx/Rx |
| Others | • TWT (Target Wake Time) • MRC (Maximal Ratio Combining) • TxBF (Transmit Beamforming) • WPA3 (Wi-Fi Protect Access 3) • DFS (Dynamic Frequency Selection) • CDD (Cycle Delay Diversity) • CSD (Cycle Shift Diversity) • STBC (Space-Time Block Coding) • LDPC (Low-Density Parity-Check) |
| Spatial Streams | 5 GHz: 4×4 Uplink/Downlink MU-MIMO with 4 spatial streams |
| Frequency Bands | 5.150 to 5.250 GHz U-NII-1 5.250 to 5.350 GHz U-NII-2A 5.470 to 5.725 GHz U-NII-2C 5.725 to 5.850 GHz U-NII-3/ISM *Note: Country-Specific Restriction Apply |
| Bandwidth | 5 GHz: 20 MHz/40 MHz/80/160 MHz |
| Wireless Data Rate | 5 GHz: 6.5 Mbps to 3467 Mbps (MCS0-MCS9, NSS=1 to 4, VHT20/40/80/160) |
| Radio Technology | OFDM (Orthogonal Frequency-Division Multiplexing) |
| Modulation Type | 256-QAM. 64-QAM, 16-QAM, QPSK, BPSK |
| Frame Aggregation | • A-MPDU (Aggregate MAC Protocol Data Unit) for Tx/Rx • A-MSDU (Aggregate MAC Service Data Unit) for Tx/Rx |
| Others | • MRC (Maximal Ratio Combining) • TxBF (Transmit Beamforming) DFS (Dynamic Frequency Selection) • CDD (Cycle Delay Diversity) • CSD (Cycle Shift Diversity) • STBC (Space-Time Block Coding) • LDPC (Low-Density Parity-Check) |
| Spatial Streams | • 2.4 GHz: 2×2 MIMO with 2 spatial streams • 5 GHz: 4×4 MIMO with 4 spatial streams |
| Frequency Bands | 2.400 to 2.4835 GHz ISM 5.150 to 5.250 GHz U-NII-1 5.250 to 5.350 GHz U-NII-2A 5.470 to 5.725 GHz U-NII-2C 5.725 to 5.850 GHz U-NII-3/ISM *Note: Country-Specific Restriction Apply |
| Bandwidth | 20 MHz/40 MHz |
| Wireless Data Rate | • 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0-MCS7, NSS=1 to 2, HT20/40) • 5 GHz: 6.5 Mbps to 600 Mbps (MCS0-MCS7, NSS=1 to 4, HT20/40) |
| Radio Technology | OFDM (Orthogonal Frequency-Division Multiplexing) |
| Modulation Type | 64-QAM, 16-QAM, QPSK, BPSK |
| Frame Aggregation | • A-MPDU (Aggregate MAC Protocol Data Unit) for Tx/Rx • A-MSDU (Aggregate MAC Service Data Unit) for Tx/Rx |
| Others | • MRC (Maximal Ratio Combining) • TxBF (Transmit Beamforming) • DFS (Dynamic Frequency Selection) • CDD (Cycle Delay Diversity) • CSD (Cycle Shift Diversity) • STBC (Space-Time Block Coding) • LDPC (Low-Density Parity-Check) |
| Wi-Fi | • 2.4 GHz: 2 × 4 dBi (peak gain), Internal antenna module • 5 GHz: 4 × 5 dBi (peak gain), Internal antenna module • 6 GHz: 2 × 5 dBi (peak gain), Internal antenna module *Note: The gains above are the single-antenna peak gains. |
| IoT | Bluetooth: 1 × 5 dBi (peak gain), Internal antenna module |

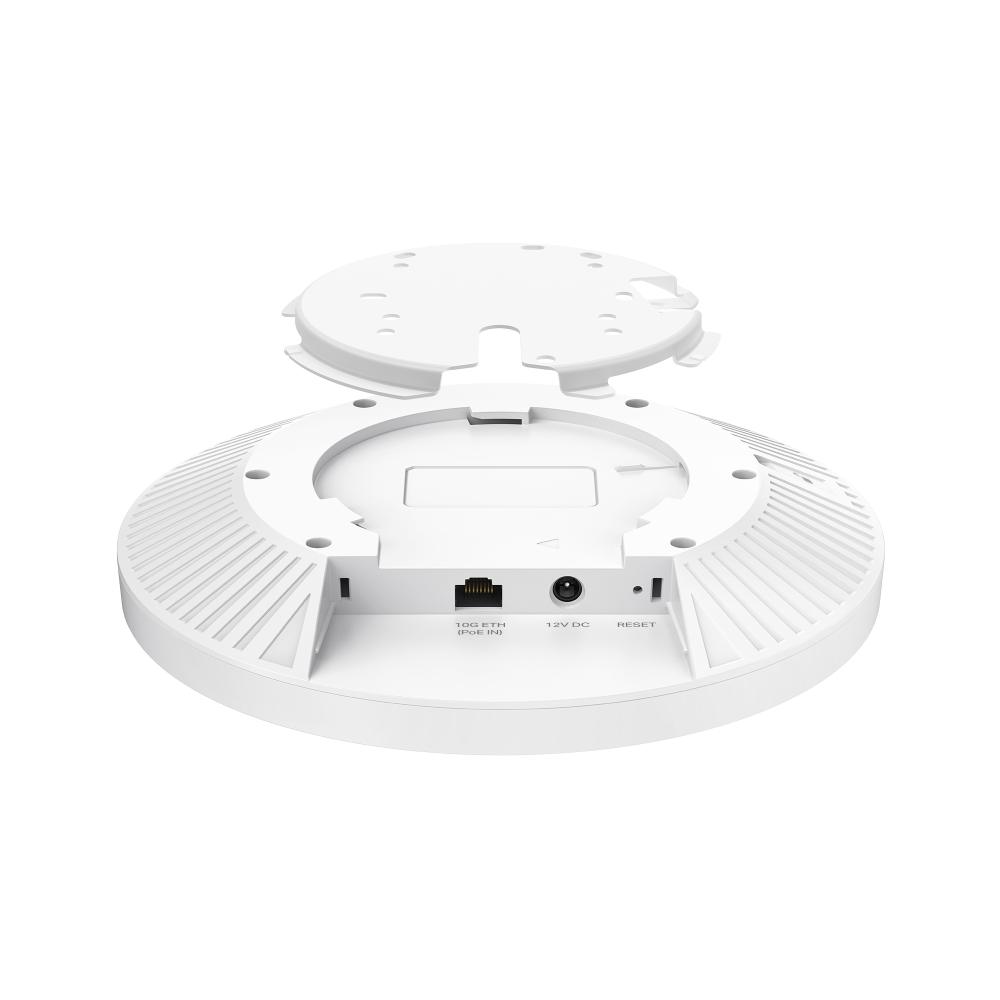

| Interfaces | • 1 x 10M/100M/1000M/2.5Gbps/5Gbps/10Gbps Multigigabit Ethernet Port (RJ45); PoE in • 1 x 1 DC power interface: 12VDC |
| IoT | BLE 5.2, 1Mbps |
| Memory | • Flash: 1024Mbit • DRAM: 8192Mbit |
| Button | 1 × Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. |

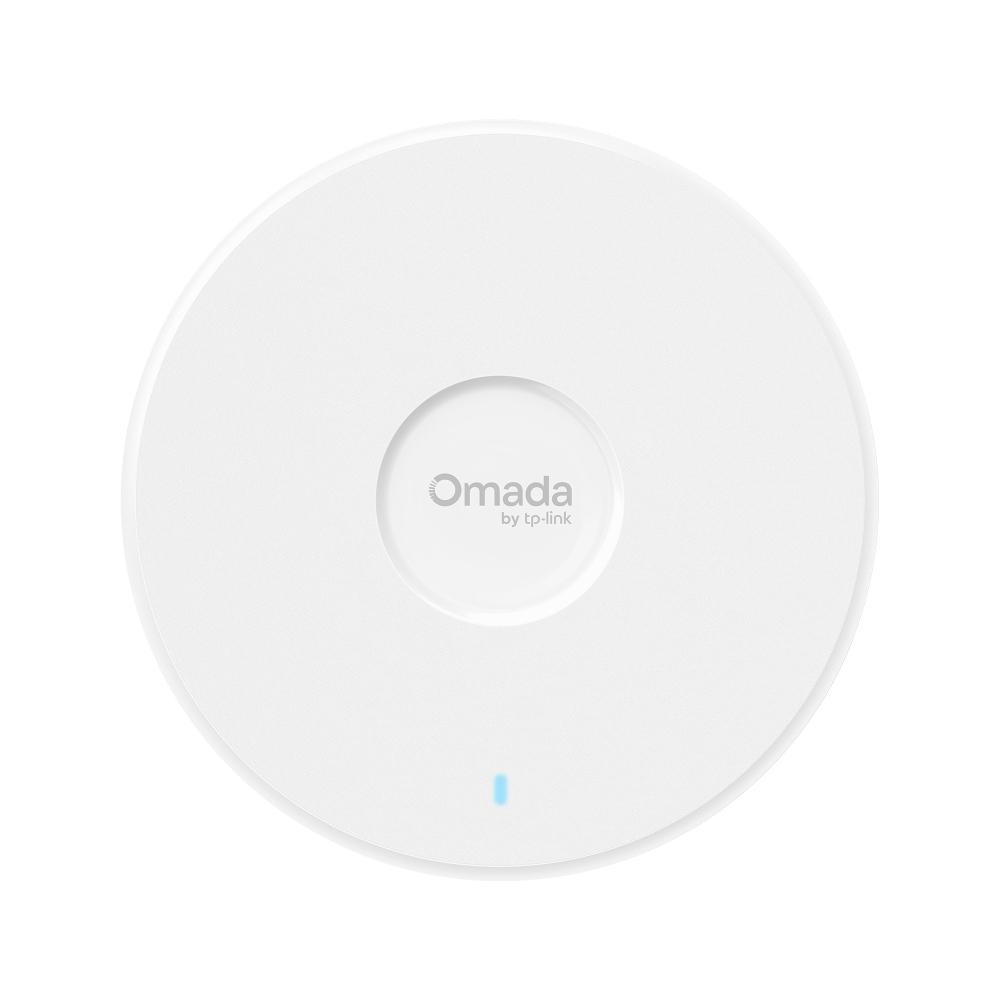

| Indicator | 1 × multi-color system LED indicates on the front: Blue: Normal power supply (DC or 802.3bt) Orange: Insufficient power supply (802.3at or 802.3af) Flashing status under normal power supply condition: Slowly Flashing blue and orange once, then stay blue: Power-on status. Flash twice and then stay blue: Initialization is completed. Flashing blue: Firmware update. Flashing blue 5 times: Reset the device. Quickly flashing blue: Locate the device. Slowly flashing blue: The device is in an isolated state. |
| MTBF (Mean Time between Failure) | - hours at the operating temperature of 25℃ (77℉) |
| Input | 802.3bt PoE++: 42.5 - 57 V=1.2A 12VDC/2.5A |
| Output | / |
| Surge/Lightning Protection | Ethernet Ports: ±4 kV |
| ESD/EMP Protection | • Air discharge: ±8 kV • Contact discharge: ±4 kV *Note: ESD/EMP Protection means Electrostatic Discharge/Electromagnetic Pulse Protection independently. |
| Tx Power | |
| Maximum transmit power | CE (ERIP) • 2.4 GHz: 20 dBm • 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C • 6 GHz: 23 dBm FCC (Conducted Power) • 2.4 GHz: 25 dBm • 5 GHz: 29 dBm in U-NII-1, 26 dBm in U-NII-2A, 24 dBm in U-NII-2C, 29 dBm in U-NII-3 • 6 GHz: 23 dBm *Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations. |
| Minimum transmit power | CE (ERIP) • 2.4 GHz: 6 dBm • 5 GHz: 9 dBm in U-NII-1, 9 dBm in U-NII-2A, 9 dBm in U-NII-2C, 7 dBm in U-NII-3 • 6 GHz: 6 dBm FCC (Conducted Power) • 2.4 GHz: 4 dBm • 5 GHz: 7 dBm in U-NII-1, 7 dBm in U-NII-2A, 4 dBm in U-NII-2C, 7 dBm in U-NII-3 • 6 GHz: 4 dBm *Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations. |
| Adjustable power increment | 1 dBm |
| Environment | |
| Temperature | • Operating: 0℃ to +40℃ (33.8℉ to +104℉) • Storage: -30℃ to +70℃ (-22℉ to +158℉) |
| Humidity | • Operating: 10% to 90% (non-condensing) • Storage: 5% to 90% (non-condensing) |
| Altitude | • Storage: up to + 2000 m (6561 feet) • Operating: up to + 2000 m (6561 feet) |
| Dimensions (W×D×H) | • Main Unit: 220 × 220 × 38.8 mm (8.7 × 8.7× 1.5 in.) • Shipping Unit: 540 × 300 × 300 mm (21.3 × 11.8 × 11.8 in.) |
| Weight | • Main Unit: 0.885 kg (1.95 lb) • Mounting Bracket: 0.05 kg (0.11 lb) • Shipping Unit: 9.53 kg (21.01 lb) |

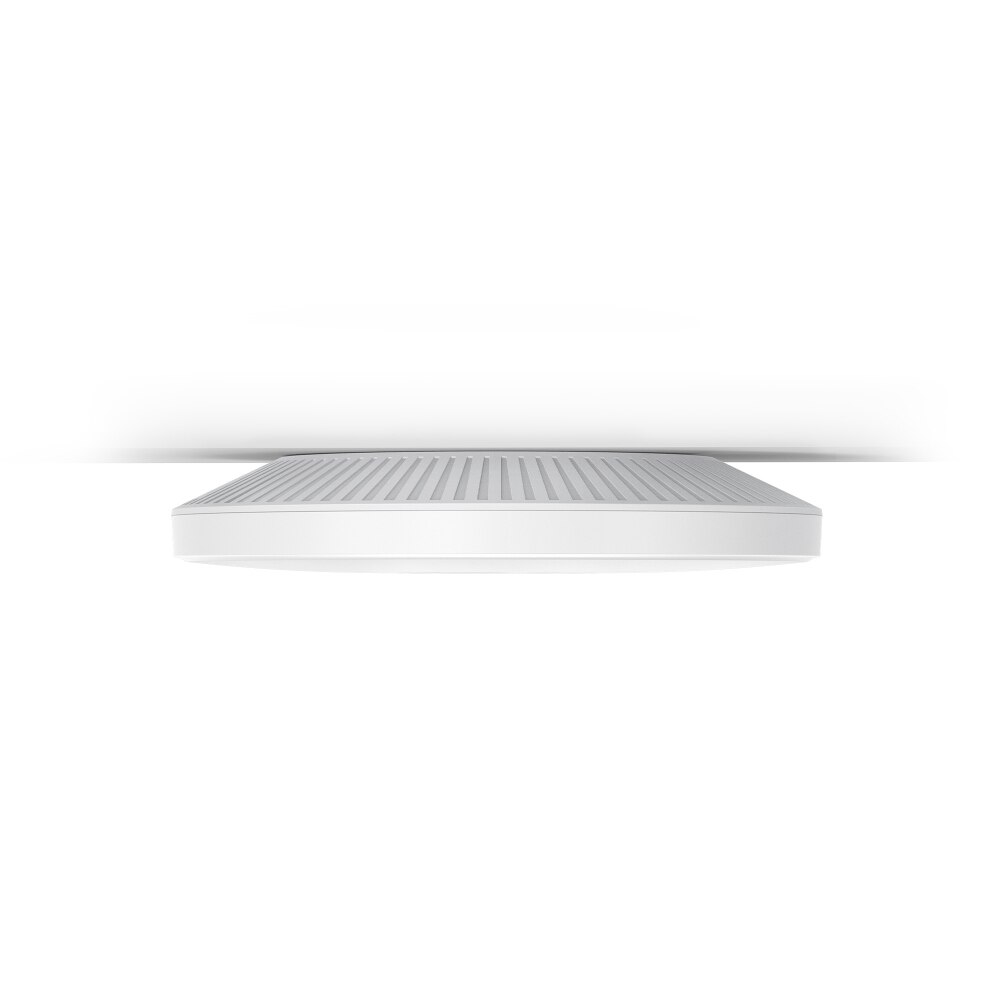

| Mounting | • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting (Kits included) • T-Bar Mounting (Kits included) |
