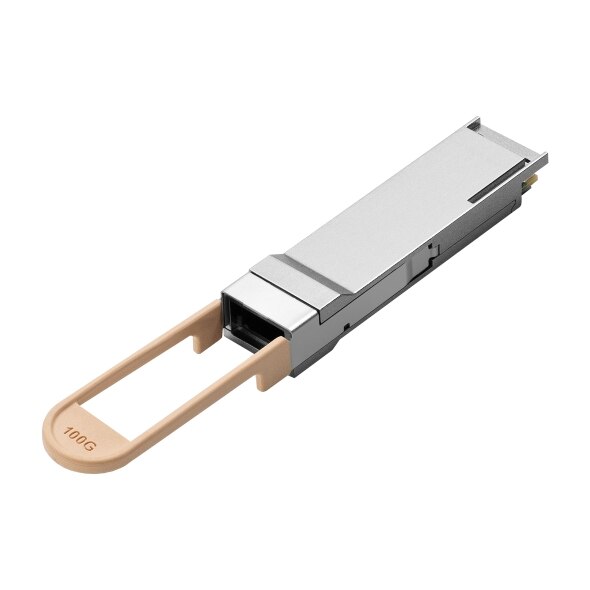

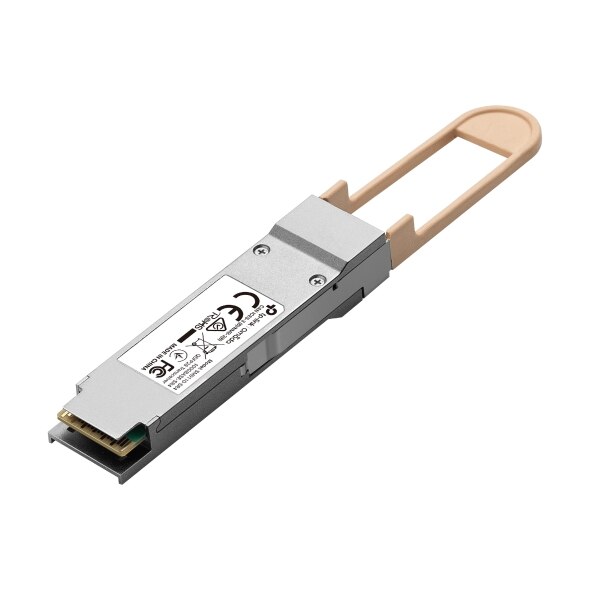

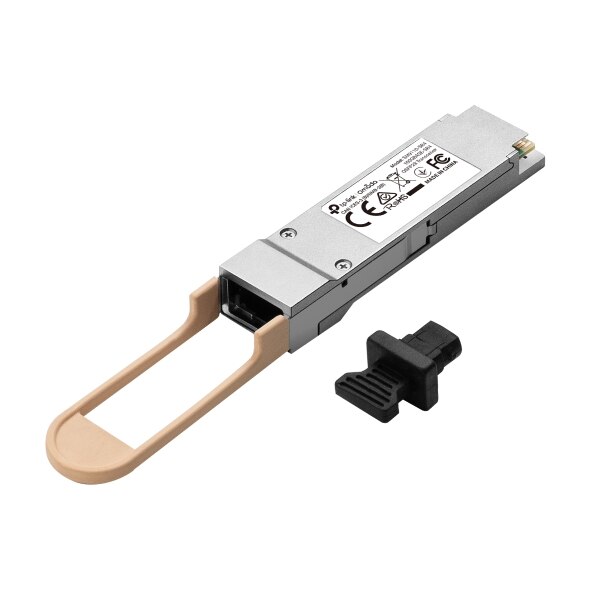

TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver
- SKU: SM9110-SR4
$64.99
Product Information
Omada 100GBASE-SR4 QSFP28 Transceiver
The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).
Features:
- 100GBASE-SR4 multi-mode QSFP28 Transceiver
- Supports Digital Diagnostic Monitoring (DDM)
- Up to 100 m transmission distance
- Hot-Pluggable with maximum flexibility
- Wide operating temperature
- Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)
Specifications
Specifications SM9110-SR4
| Form Factor | QSFP28 |
| Standards and Protocols | • IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA, • SFF-8665, SFF-8636, SFF-8436, • CPRI, eCPRI • TCP/IP |
| Wave Length | 850 nm |
| Power Supply | 3.3 V |
| Max. Power Consumption | Max 1.8 W at 100 Gbps Max 1.54 W at 40 Gbps |
| Fiber Type | 50/125um MMF (Multimode) |
| Max. Cable Length | 70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78Gbps) 100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps) |
| Data Rate | Dual Rate 103.125 Gbps and 41.2 Gbps |
| Connector | MTP/MPO-12 |
| Transmission power | -8.4 dBm to 2.4 dBm @103.125 Gbps -7.6 dBm to 2.4 dBm @41.2 Gbps |
| Transmitter Type | VCSEL 850 nm |
| Receiver Type | PIN |
| Receiver Sensitivity | <-10.3 dBm @103.125 Gbps <-9.5 dBm @41.2 Gbps |
| Receiver Overload | >2.4 dBm @103.125 Gbps >2.4 dBm @41.2 Gbps |
| Extinction Ratio | >2 dB @103.125 Gbps >3 dB @41.2 Gbps |
| Regulatory Compliance | CE, FCC, RoHS |
| HARDWARE FEATURES | |
| DDM | Yes |
| QSFP28 MSA | Yes |
| Hot Swappable | Yes |
| Dimensions ( W x D x H ) | 4.88*0.72*0.46 in (124*18.35*11.7 mm) |
| ENVIRONMENT | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 0 to 85% RH Non-condensing |
| Storage Humidity | 0 to 85% RH Non-condensing |
