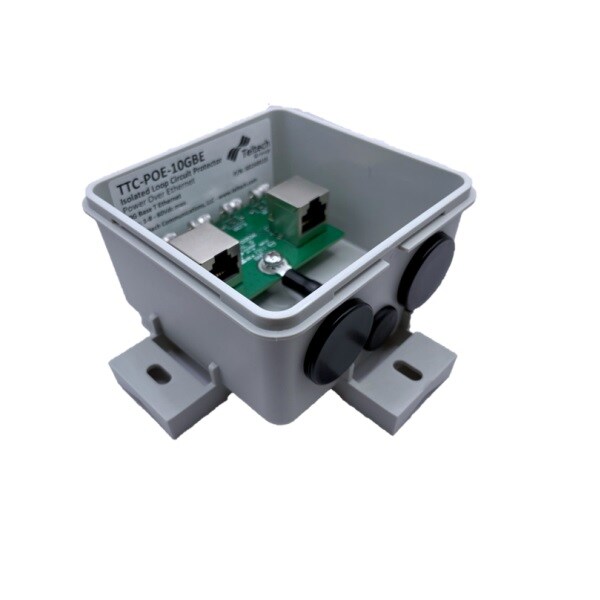

10GB POE Surge Protective Device, POE++ Compatible
Specifications
Specifications TTC-POE-10GBE-SPD
| Dimension | 4X6X4 inches |
| Weight | .3 lbs |
| MAX VOLTAGE ON PINS (1-2) (3-6) (4-5) (7-8) | 60 (V) |
| AC/DC/DC PV/RF | DC |
| WIRES | 8W+Shield+Ground |
| LINE CURRENT MAX | 2 (A) |
| POWER RATING | 100 (W) |
| AMBIENT MIN | -35 (C) |
| AMBIENT MAX | 85 (C) |
| MODES | Line/Line, Line/Ground (Per Line), Lines/Ground (Itotal) |
| RESIDUAL VOLTAGE | 70 (V) |
| IMAX8/20µs | 16 (kA) |
| Iimp10/350µs | 500 (A) |
| DATA SPEED | up to 10Gbps (bps) |
| IMPEDANCE | <1Ω |
| Installation | |
| Wiring type | Shielded RJ45 |
| Operating Relative HumidityMax | 95% RH |
| Operating AltitudeMax | 6500 Ft |
| Installation Location | Indoor/Outdoor |
| Mechanical | |
| Outdoor application | Yes |
| TECHNOLOGY | GDT |
| NETWORK CONFIGURATION | Single POE Line |
| CONNECTION METHOD | Shielded RJ45 |
| MOUNTING | Surface/Pole Mount |
| MATERIAL | UV rated Thermoplastic |
| FLAMMABILITY RATING | UL94-V0 |
| NEMA RATING (IP RATING) | IP65 |
| DIMENSIONS | See diagram |
| Standards | |
| Certification | UL 497B (pending) |
