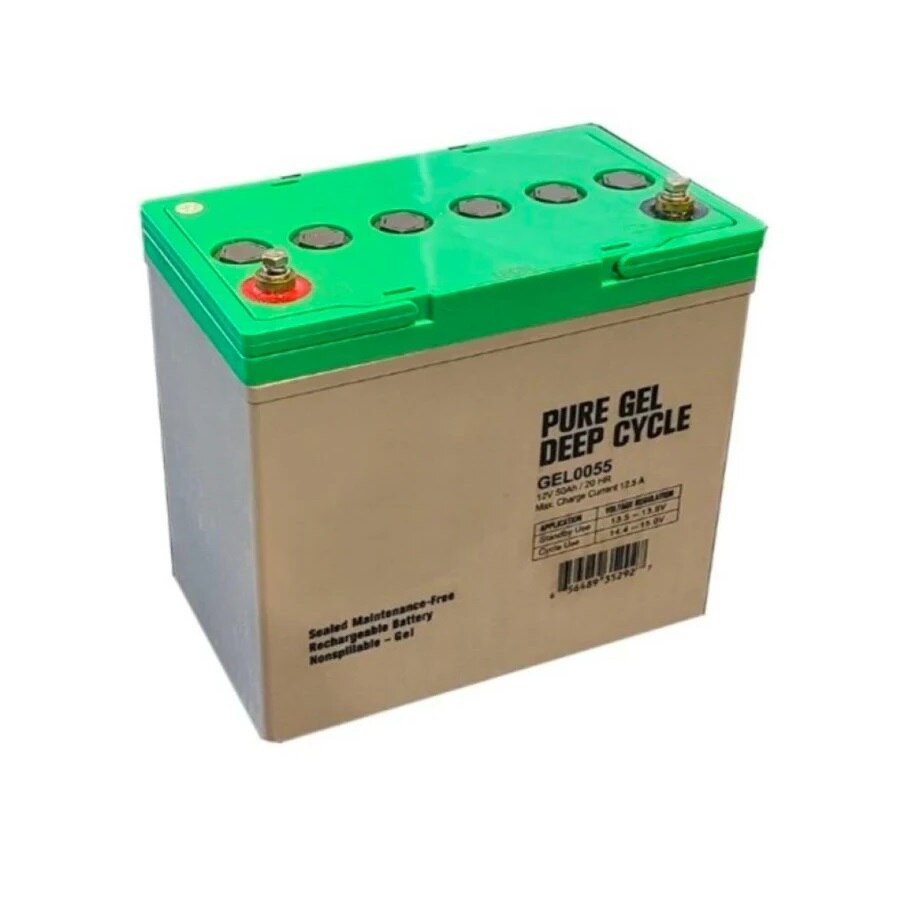

Tycon Power 12V 50AH Non-Spillable Sealed Lead Acid GEL Battery
- SKU: TPBAT12-50
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
12V 50AH Non-Spillable Sealed Lead Acid GEL Battery
The TPBAT12-50 high-rate valve-regulated sealed lead acid (VRLA) AGM battery from Tycon Systems® excels in long-term operation within harsh environments. Its robust design makes it ideal for various demanding applications, ensuring reliable power supply wherever needed.
High Cycle Life: This battery boasts a high cycle life, performing through numerous charge and discharge cycles without significant degradation. Consequently, it remains reliable and efficient over an extended period.
Impressive Float Life: The TPBAT12-50 battery offers an impressive float life of up to 8 years. Therefore, it can provide consistent and stable power for many years, making it a cost-effective solution for long-term applications.
Wide Temperature Range: Designed to operate over a wide temperature range, this battery suits outdoor equipment applications. Whether faced with extreme heat or cold, the TPBAT12-50 battery maintains its performance and reliability, ensuring optimal functionality.
Versatile Installation
Flexible Positioning: You can install the TPBAT12-50 battery in any position without affecting its performance or reliability. This flexibility makes it an ideal choice for various applications, as it adapts to different installation requirements and constraints.
Durability and Construction
Robust Design: Built to withstand harsh environments, the TPBAT12-50 battery features a durable construction that ensures long-term reliability. The valve-regulated design prevents leaks and reduces maintenance, providing a hassle-free power solution.
Features:
- Lead Acid Battery
- Sealed and Maintenance Free
- Safety Valve for Ultimate Safety; Prevents Overpressure
- Exceptional Deep Discharge Recovery Performance
- Low Self Discharge Characteristics
- Highly Resistant to Vibration and Shock
Applications:
- Remote Equipment Power
- Surveillance Cameras
- Wireless Base Stations
- Medical Equipment
- Remote Sensors
- Backup Power Systems
Specifications
Specifications TPBAT12-50
| Voltage | 12V |
| Capacity (amp hours; 20hr) | 50 |
| Typical Float Life | 5 Years |
| 30% Discharge Cycle Life | 2400 Cycles |
| Type / Technology | Valve Regulated Sealed Lead Acid GEL |
| Self-Discharge (25°C) | <3% per month |
| Charge Voltage (-30mV / °C) | 14.4 to15V ; Max Current 12.5A |
| Float Voltage (-20mV / °C) | 13.5 to 13.8V |
| Internal Resistance | 9mΩ |
| Operating Temperature | -40C (-40F) to +60C (140F) |
| Housing | ABS (UL94HB) |
| Certifications | UL |
| Compliances | REACH, RoHS |
| Dimensions (L x W x H) | 229 x 138 x 205 (9 x 5.4 x 8.1”) |
| Weight | 16.6kg (36.6lb) |
| Warranty | 2 Years |
