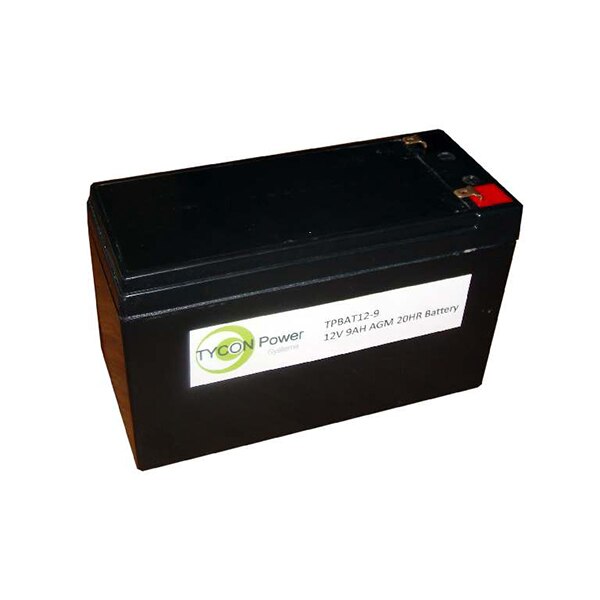

12V 8.5Ah AGM SLA Battery. 5.94 x 2.56 x 3.9
- SKU: TPBAT12-9
$29.40 $30.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
12V 8.5Ah AGM SLA Battery. 5.94 x 2.56 x 3.9
Specifications
Specifications TPBAT12-9
| Voltage | 12V |
| Capacity (amp hours; 20hr) | 9 |
| Type / Technology | Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
| Capacity vs Temperature | 40°C=102%; 0°C=85%, -15°C=65% |
| Self Discharge (25°C) | <3% per month |
| Charge Voltage (-30mV / °C) | 14.4 to15V ; Max Current 2.7A |
| Float Voltage (-20mV / °C) | 13.6 to 13.8V |
| Operating Temperature | -40C (-40F) to +60C (140F) |
| Housing | ABS (UL94HB) |
| Dimensions | 151 x 65 x 95mm (5.9 x 2.6 x 3.7”) |
| Weight | 2.5kg (5.5lb) |
