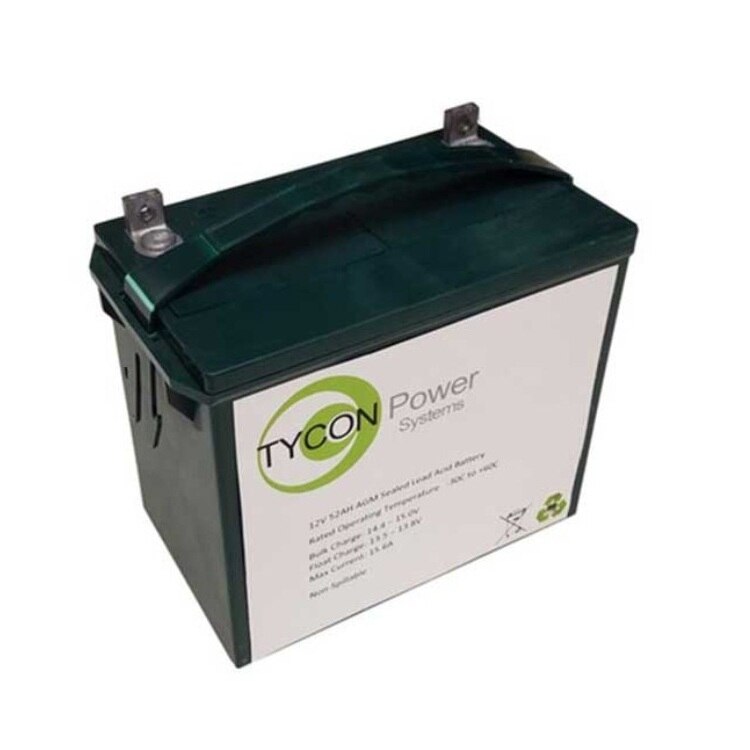

Tycon Solar 12V 52Ah AGM SLA Battery with 1/4" Connection
- SKU: TPBAT12-52
$208.95 $219.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
9.8 x 5.4 x 8.6", 40.3lbs
Specifications
Specifications TPBAT12-52
| Voltage | 12V |
| Capacity (amp hours; 20hr) | 52 |
| Typical Float Life | 8 Years |
| 30% Discharge Cycle Life | 1800 Cycles |
| Type / Technology | Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
| Self-Discharge (25°C) | <3% per Month |
| Charge Voltage (-30mV / °C) | 14.4 to 15V ; Max Current 15.6A |
| Float Voltage (-20mV / °C) | 13.5 to 13.8V |
| Internal Resistance | 5.5mΩ |
| Operating Temperature | -40 to 60°C (-22 to 140°F) |
| Housing | ABS (UL94HB) |
| Certifications | ISO 9001: 2000, ISO 14001, ISO 5001, UL, IEC, VdS |
| Compliances | JIS C 8704-2: 1999, BS6290 Part 4 1987, TL9000, EUROBAT, OHSAS, NEBS, REACH, RoHS |
| Dimensions | 248 x 138.4 x 219mm (9.8 x 5.4 x 8.6") |
| Weight | 18.3kg (40.3lbs) |
