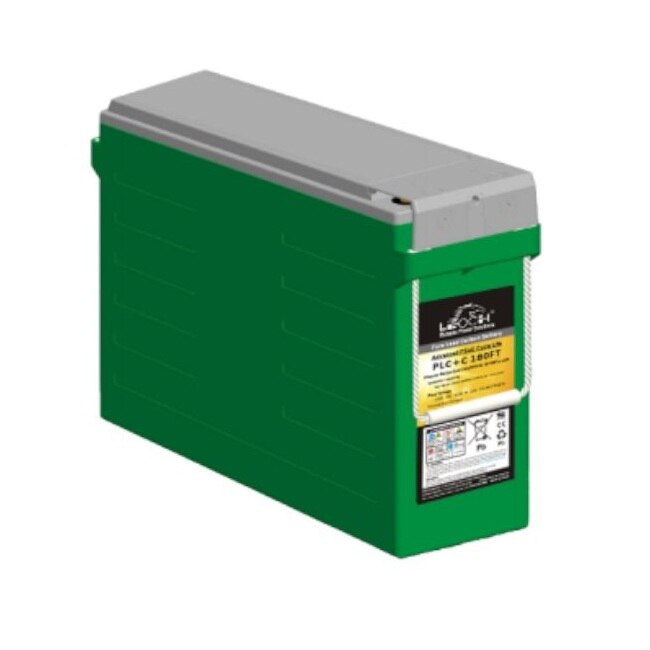

12V 180Ah Pure Lead Carbon SLA Battery with 6mm/0.25" Stud. L22 x W5 x H12.6"
- SKU: TPBAT12-180
$699.15 $735.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
12V 180Ah Pure Lead Carbon SLA Battery with 6mm/0.25" Stud. L22 x W5 x H12.6"
Specifications
Specifications TPBAT12-180
| Voltage | 12V |
| Capacity (amp hours; 20hr) | 180 |
| Typical Float Life | 8 Years |
| 30% Discharge Cycle Life | 5000 Cycles |
| Type / Technology | •Valve Regulated Pure Lead Carbon Sealed •Lead Acid / Absorbent Glass Mat (AGM) |
| Self-Discharge (25°C) | <5% per month |
| Charge Voltage (-3mV / °C) | 14.1 to14.4V ; Max Current 180A |
| Float Voltage (-2mV / °C) | 13.5 to 13.8V |
| Internal Resistance | 3.5mΩ |
| Operating Temperature | -40C (-40F) to +55C (131F) |
| Housing | ABS (UL94V-0) |
| Certifications ISO 9001 | 2000, ISO 14001, OHSAS 18001, IATF16949 |
| Compliances | IEC 60896 |
| Warranty | 2 Years |
| Weight | 57.6kg (127lb) |
| Crate Outside Dimensions | 559 x 125 x 320 (22 x 4.92 x 12.6”) |
