Ubiquiti UISP Fiber GPON OLT
- SKU: UF-OLT
$1,799.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

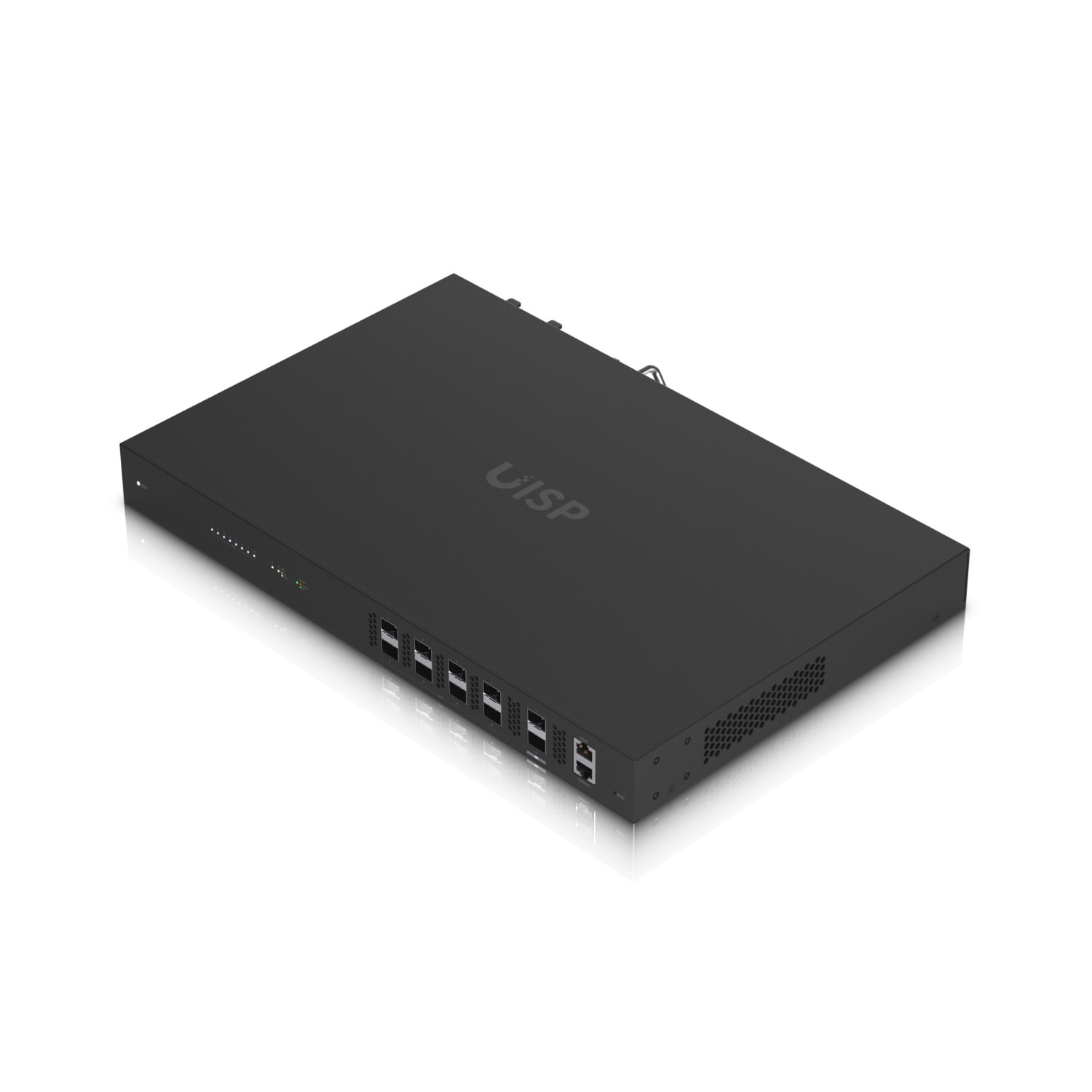

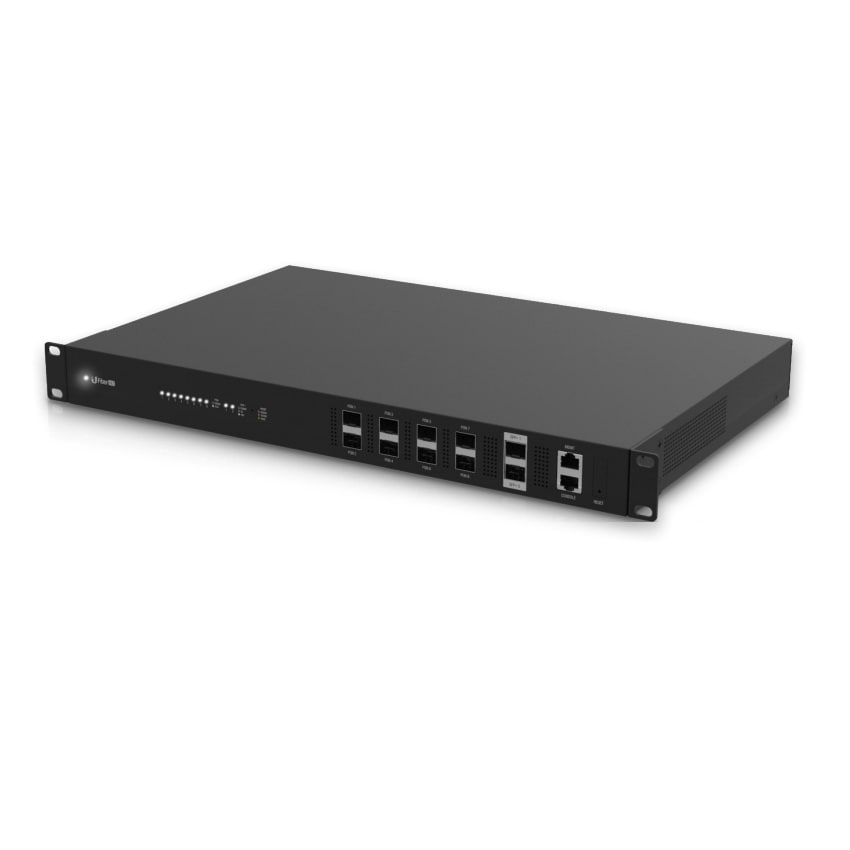

Eight-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to 1,024 clients (128 per port).
Specifications
Specifications UF-OLT
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight | (with Mount Brackets) 4.40 kg (9.7 lb) 4.495 kg (9.91 lb) |

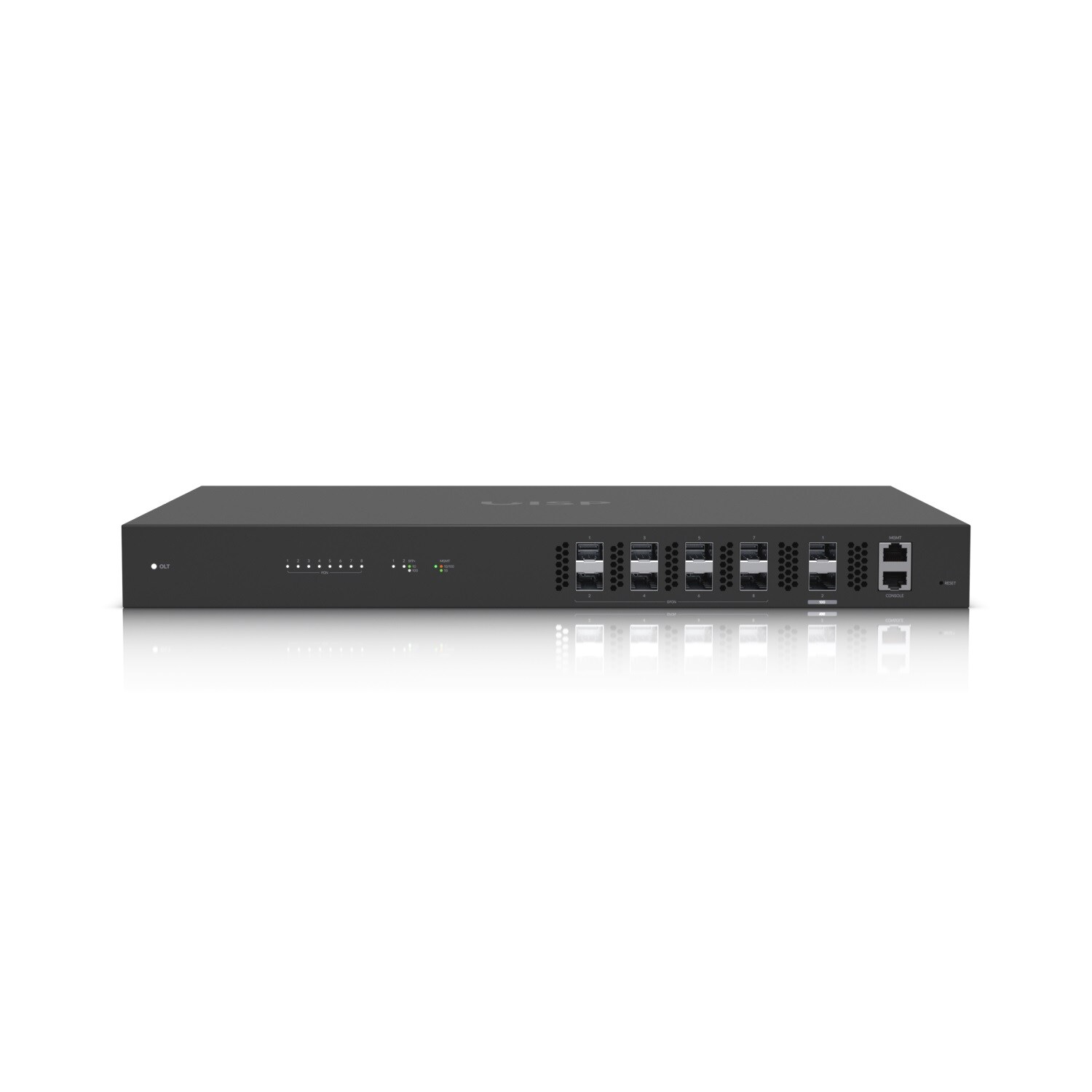

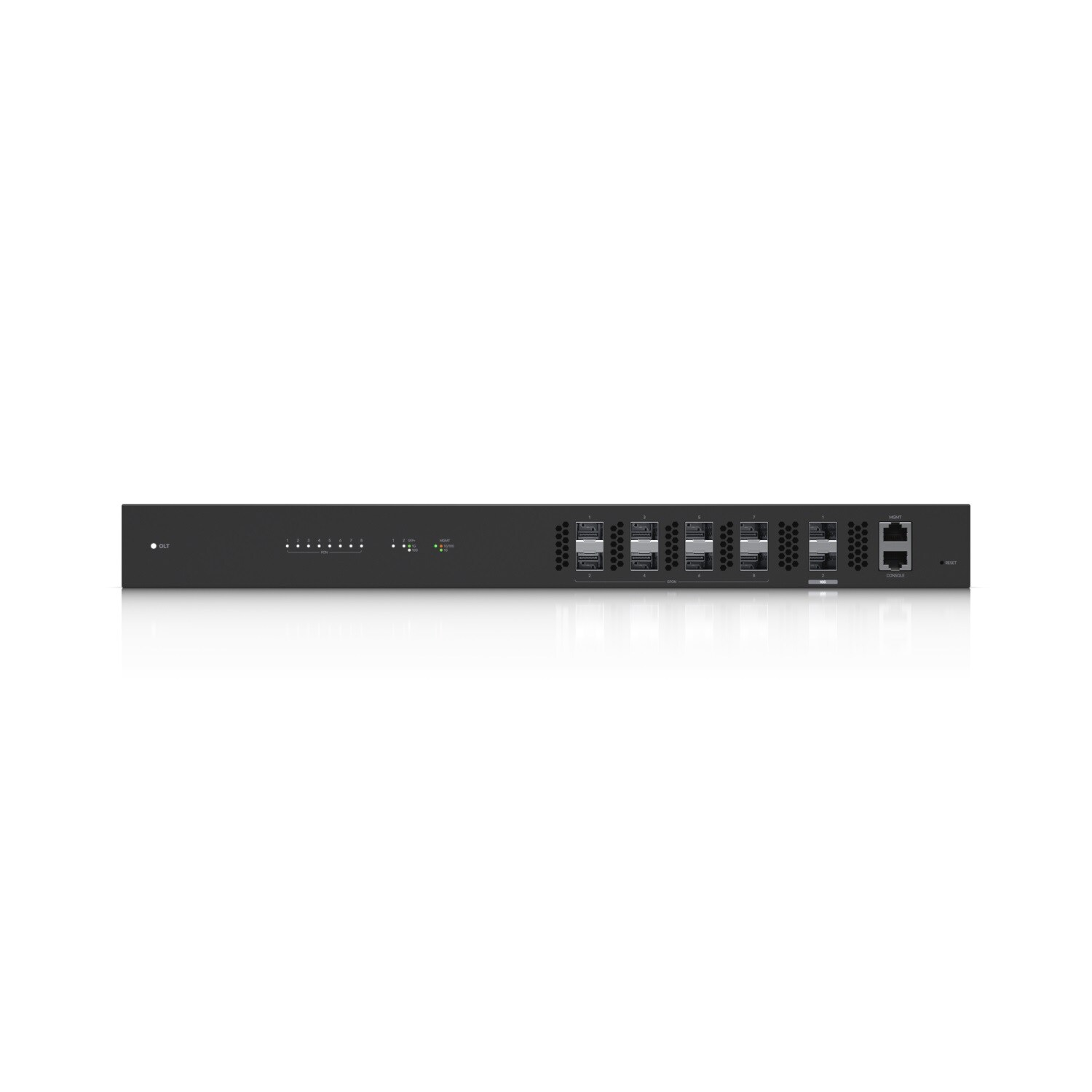

| Networking Interfaces | (8) GPON OLT SFP (2) 1G/10G SFP+ |
| Concurrent Clients | 1024 Registered ONUs/ONTs (128 per GPON Port) |
| Management Interfaces | (1) Ethernet for Out-of-Band Management, (1) RJ45 Serial Console Port |
| GPON Speeds | 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX) |
| Operating Wavelengths | 1490 nm TX, 1310 nm RX |
| Normal Optical Power Range | TX (Class B+): 1.5 dBm to 5 dBm RX: -8 dBm to -28 dBm |
| Range Physical Reach Logical Reach Max. Differential Fiber Distance | 20 km 60 km 20 km (B+) /40 km (C+) |

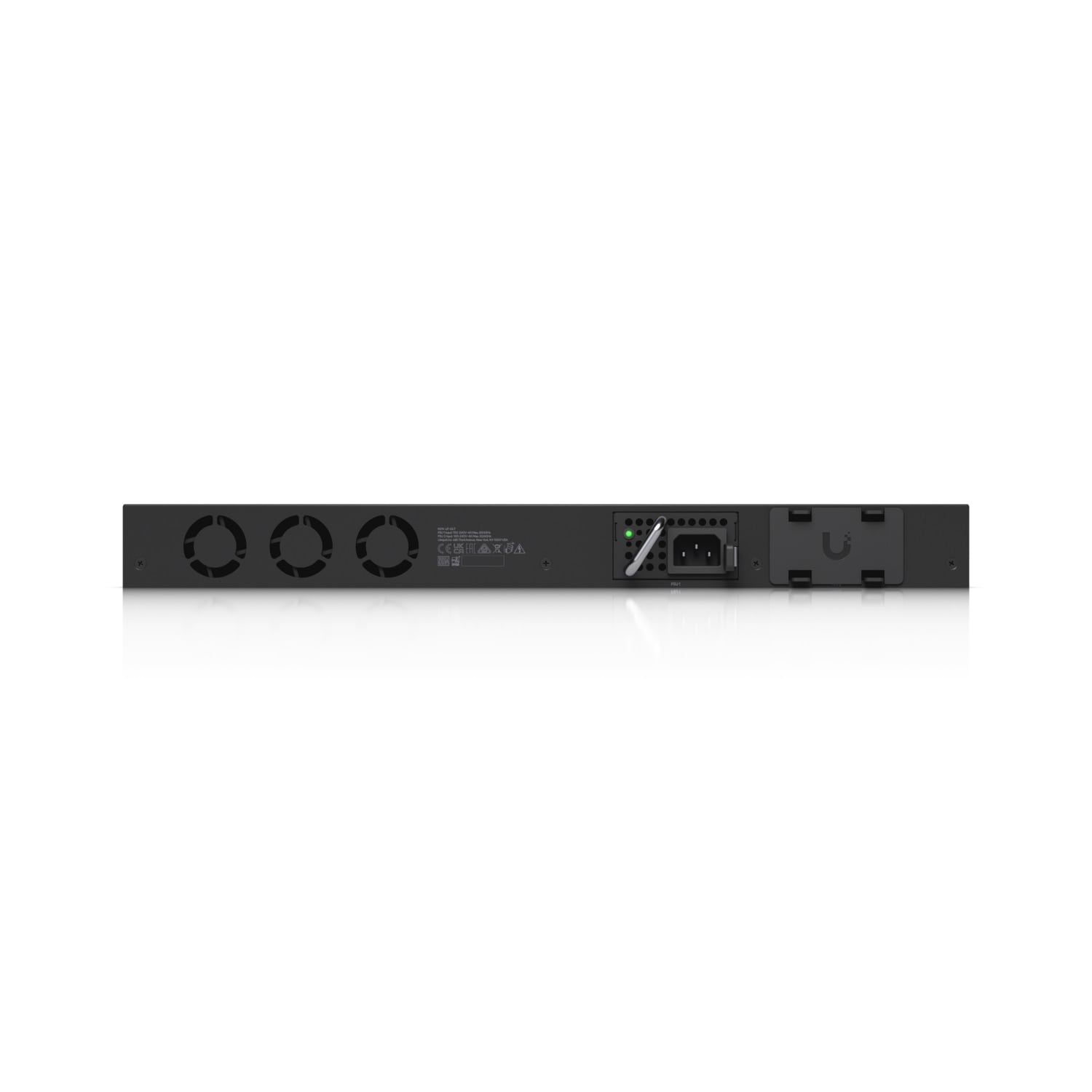

| Power Method | (2) PSU Module Bays |
| Power Supply | (1) 54V 100W AC/DC PSU Module (Included) |
| Max. Power Consumption | 40W (Excluding SFP Modules) |
| Operating Mode | OLT 2/3 Ethernet Switch and GPON Core |
| Advanced QoS | Supports 8 Priority Queues per User Port and Traffic Classification |
| Processor Specs | MIPS 1004kc 880 MHz Dual Core |
| Memory Information | 512 MB DDR3, 512 MB NAND |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
