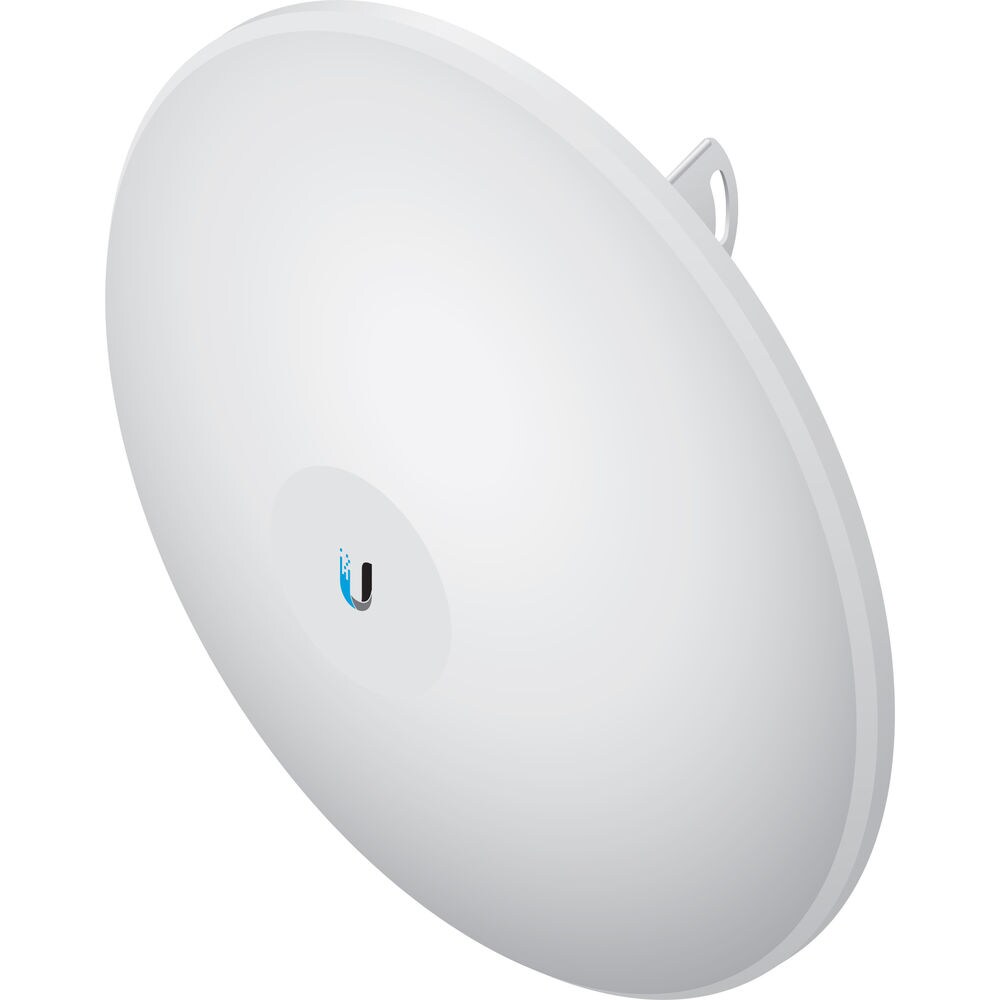

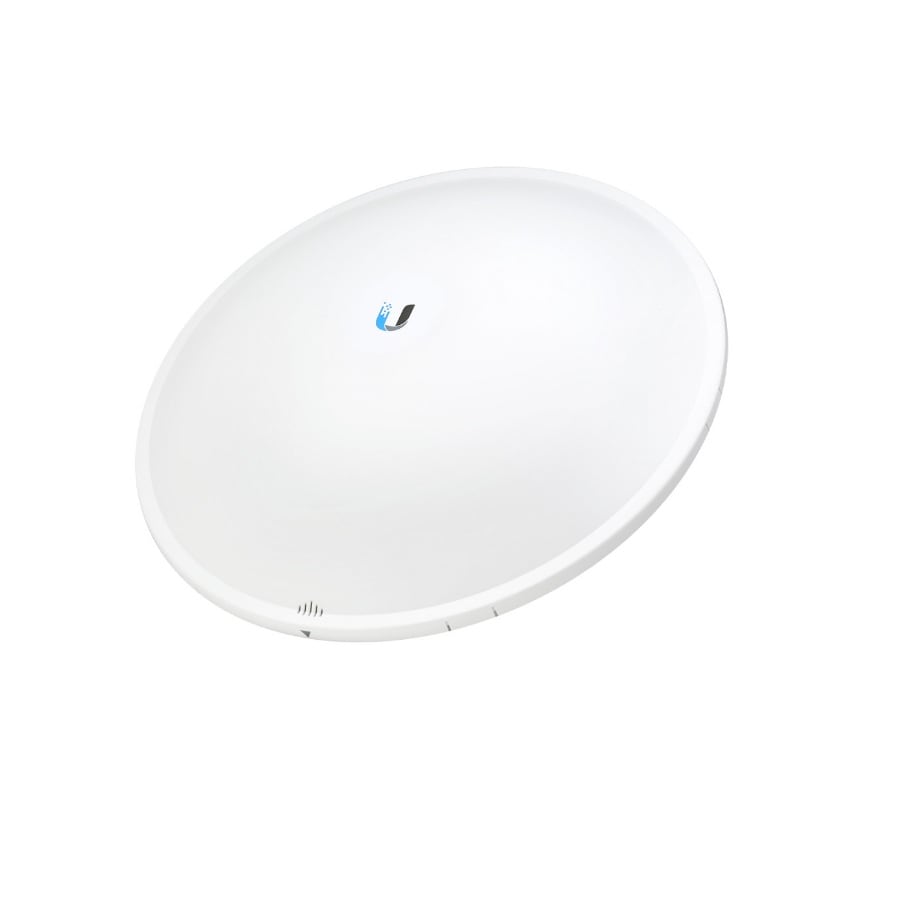

Ubiquiti UISP airMAX PowerBeam 5AC 500mm Antenna (US)
- SKU: PBE-5AC-500-US
$159.00
Product Information
5GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate. 2-Pack
Specifications
Specifications PBE-5AC-500
| Processor Specs | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 16 MB Flash |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Dimensions | 520 x 520 x 308 mm (20.47 x 20.47 x 12.13") |
| Weight | 2.35 kg (5.18 lb) |
| Power Supply | 24V, 0.5A Gigabit PoE |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Votlage Range | 20-26VDC |
| Max. Power Consumption | 8.5W |
| Gain | 27 dBi |
| Operating Frequency Wordlwide USA | 5150 - 5875 MHz 5150 - 5250 MHz |
| Wind Loading | 264.6 N @ 96 km/h (60 lbf @ 60 mph) |
| Wind Survivability | 96 km/h (60 mph) |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Channel Sizes PtP Mode PtMP Mode | 10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount Kit Included |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5` |
| Vibration Ttest | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
