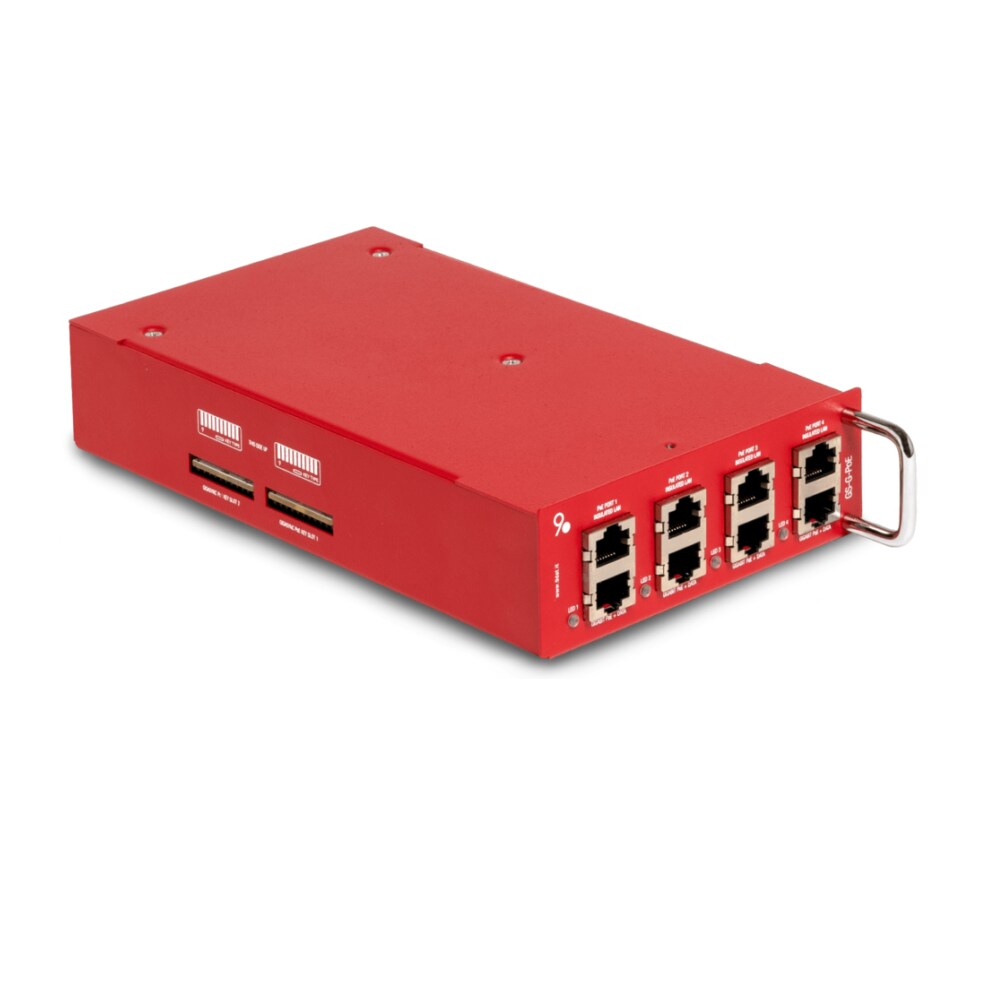

9Dot PoE cartridge for GS-B. 4 Eth. Ports, 150W max per port. For the configuration of each port a GigaKey hardware key is needed.
- SKU: GS-G-POE
- Manufacturer: 9Dot
- Data Sheet: Download
Product Information
PoE cartridge for GS-B. 4 Eth. Ports, 150W max per port. For the configuration of each port a GigaKey hardware key is needed.
This cartridge has 4 gigabit, galvanic isolated ports and is compatible with every kind of PoE device. Pinout is defined by hardware key. Each port is protected against short circuits with automatic recovery and is suitable with every kind of devices, even high power ones, up to 3A typical load.
Manages every kind of PoE
Every single port can be configured to handle a different type of injection map, with or without synchronization pulse, The configuration is simple and does not require any information technology skill: just plug the specific electronic Gigakey and the port is configured.
Modular
The Gigasync Base Unit can host up to 3 cartridges. Each cartridge has 4 ports that can be PoE injectors or Power Terminals. The Cartridges can be chosen based on the setup requirements and are hot-swappable.
Easy integration
The Controller Module can be integrated in every management system using SNMP.
Specifications
Specifications NCORE-LITE-ADJ
| Electrical | |
| Operating Voltage | 21,4-57 VDC |
| Typical power | up to 3A per port. 6A per cartridge (12A peak) |
| Power Connector | Not applicable |
| Ethernet connectors | 8x shielded RJ45 (4x data in, 4x PoE + data) |
| GND connectors | Not present |
| PoE mode | PoE output mapping selectable via GigaKey |
| Transmission Speeds | 10BaseT |
| LED Indicator | Power status, port status, GigaKey status, sync type |
| Active Protection | Short circuit protection, over voltage control, overload control |
| Synchronization Method | Canopy Sync, Cambium Sync |
| SPD | |
| Spark Over Voltage | 90V |
| Peak Surge Current | 15 kA |
| Modes of Protection | All Lines (1-2) Protected (L-L) and (L-G) |
| SPD Technology | 2 stages: TVS, GDT |
| Environmental | |
| Operating Temperature | -20°C to +45°C |
| Humidity | 5% - 90% non-condensing |
| Mechanical | |
| Dimensions (LxWxD) | 126 x 235 x 45 mm (4.96" x 9.25" x 1.77" inch) |
| Weight | 1,5 kg (3.30 lbs) |
| Material | Varnished Iron |
| Compliance & Warranty | |
| Certifications | CE-FCC |
| Conformità RoHS | Yes |
| Warranty | consult with the nearest distributor |
