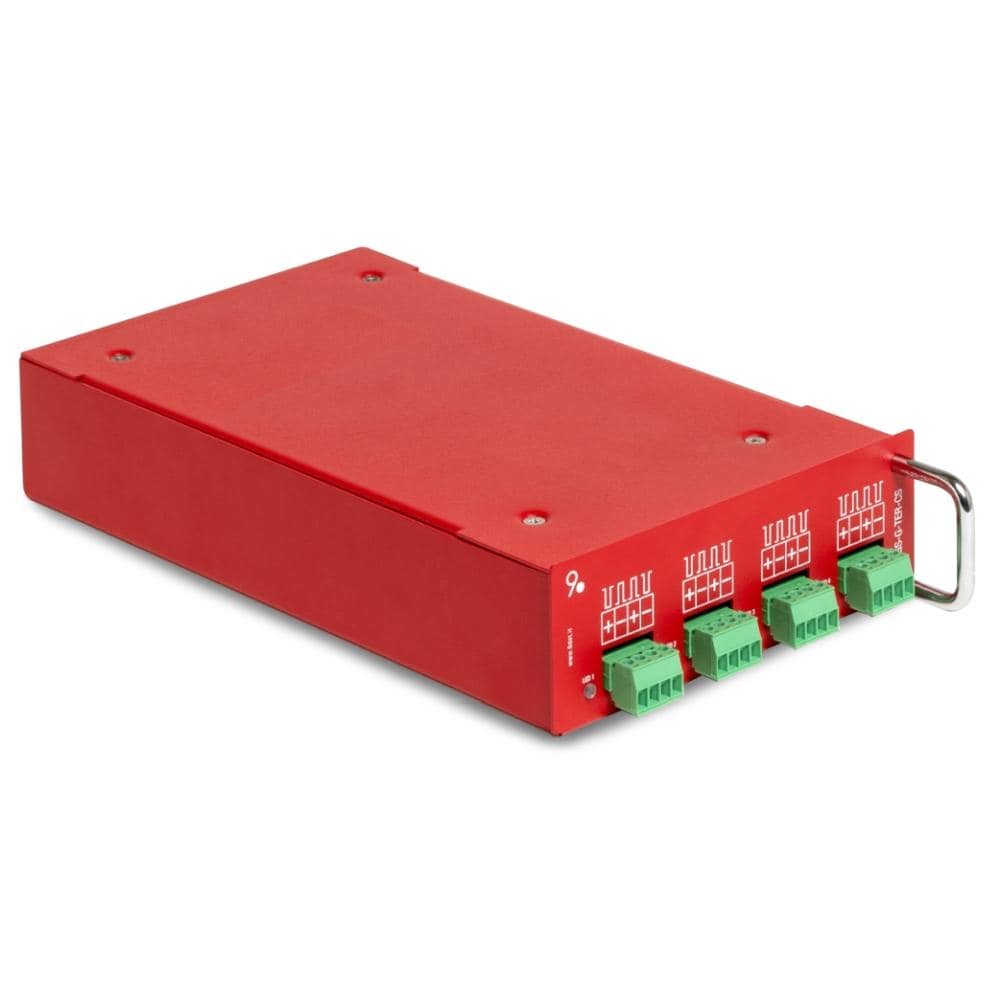

9Dot Terminal Cartridge with 4 Poles Terminal Blocks
- SKU: GS-G-TER-CS
$994.00
- Manufacturer: 9Dot
- Data Sheet: Download
Product Information
PoE cartridge for GS-B. 4 Eth. Ports, 150W max per port. For the configuration of each port a GigaKey hardware key is needed.
Terminal Cartridge with 4 poles Terminal Blocks and Cambium Sync compliant on the same connectors. High power: 4.5A per port simultaneously with GigaSync V3.
Seamlessly compatible with cnWave 5G Fixed Base Transceiver Station by Cambium Networks, the 28 GHz cnWave 5G NR-based solution is tailor-made for fixed wireless access.
Features:
- 150V Overvoltage Protection
- Cambium Sync cnWave 5G Fixed Base
- 2 StagesTVS-GDT
- 3A per Port Simultaneously
Specifications
Specifications GS-G-TER-CS
| Electrical | |
| Operating Voltage | 21,4-57 VDC |
| Typical power | Up to 3A per port. 6A per cartridge (12A peak) |
| Power Connector | 2x3.3 mm2 |
| Ethernet connectors | Not applicable |
| GND connectors | Not applicable |
| PoE mode | Not applicable |
| Transmission Speeds | Not applicable |
| LED Indicator | Power status, port status |
| Active Protection | Short circuit protection, over voltage control, overload control |
| Synchronization Method | Not applicable |
| SPD | |
| Spark Over Voltage | 90V |
| Peak Surge Current | 15 kA |
| Modes of Protection | All Lines (1-2) Protected (L-L) and (L-G) |
| SPD Technology | 2 stages: TVS, GDT |
| Environmental | |
| Operating Temperature | -20°C to +45°C |
| Humidity | 5% - 90% non-condensing |
| Mechanical | |
| Dimensions (LxWxD) | 126 x 235 x 45 mm (4.96" x 9.25" x 1.77" inch) |
| Weight | 1,5 kg (3.30 lbs) |
| Material | Varnished Iron |
| Compliance & Warranty | |
| Certifications | CE-FCC |
| RoHS compliant | Yes |
| Warranty | consult with the nearest distributor |
