9Dot NCore Output Module 12V, 4 Ports
- SKU: NCORE-OUT-12V
- Manufacturer: 9Dot
- Data Sheet: Download
Product Information

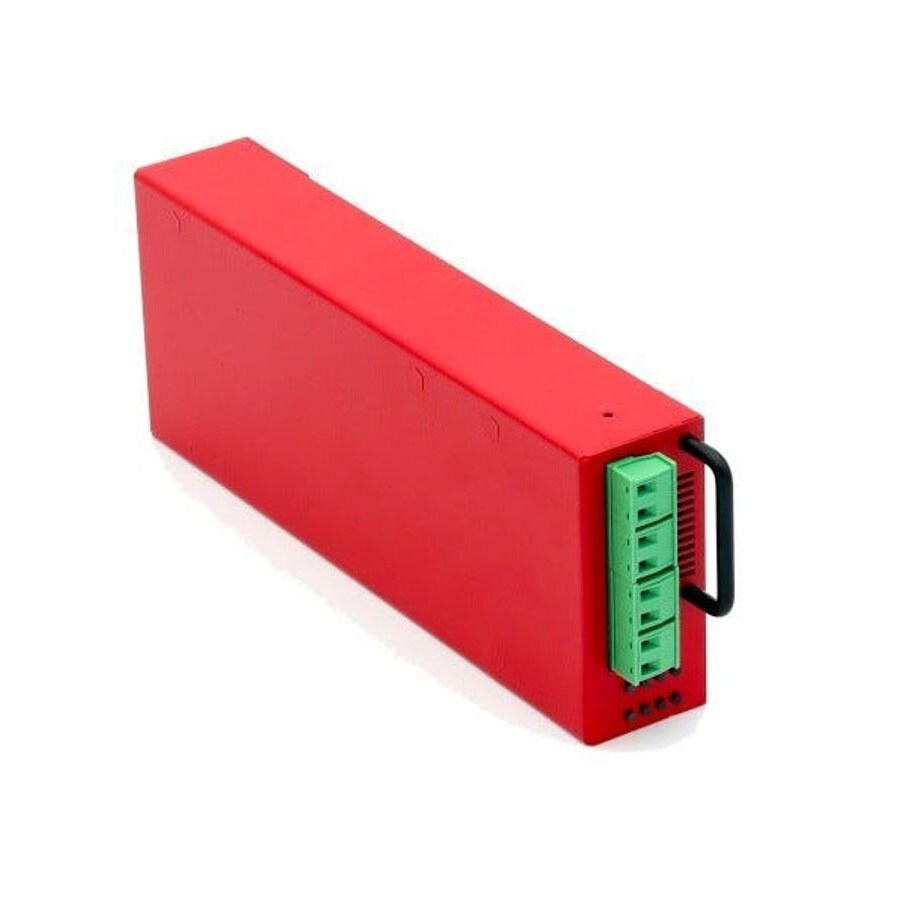

NCore Output Module 12V, 4 Ports
The 9dot NCore Output Module 12V features 4 ports with current sensors and short circuit protection, ideal for power over ethernet applications.
The NCore Output Module 12V is designed for efficient power management and control, providing 4 independent ports that can be enabled or disabled as needed. Each port is equipped with a current sensor for enhanced monitoring.
This versatile output module is capable of drawing power directly from the main rail, whether from a battery or fixed voltage sources. With options for 12V, 24V, or variable voltage settings (29/48/54V selectable via software), it is perfect for various network setups including access points and routers. The automatic reset feature ensures reliable operation, making it an essential component for any power over ethernet network.
Features:
- 4 Independent Ports
- Current Sensors on Each Port
- Short Circuit Protection
- Automatic Reset Functionality
- Compatible with Various Voltage Sources
Specifications
Specifications NCORE-OUT-12V
| Electrical | |
| Operating Voltage | Rail or Battery Voltage / 36 - 72 V DC |
| Max Power | Check table |
| Power Connector | 3.3 mm2 wires terminal blocks, 4 connectors |
| Indicators | Voltage / Load percentage |
| Active Protection | Overvoltage control, Overload control |
| I/O isoltation | 1500V |
| Output | Rail or Battery Voltage / 12 V DC / 24 V DC/ 28 - 48 - 54V DC software selectable |
| Efficiency | 94% Typ |
| Environmental | |
| Operating Temperature | -10°C to +55°C |
| Humidity | 0 - 95% non condensing |
| Mechanical | |
| Dimensions (LxWxD) | 227 x 86 x 40 mm (8.93" x 3.38" x 1.57" inch) |
| Weight | 1.7 Kg (3.74 lb) |
| Material | Varnished Iron |
| Compliance & Warranty | |
| RoHS compliant | Yes |
| Certifications | CE - FCC |
| Warranty | consult with the nearest distributor |
