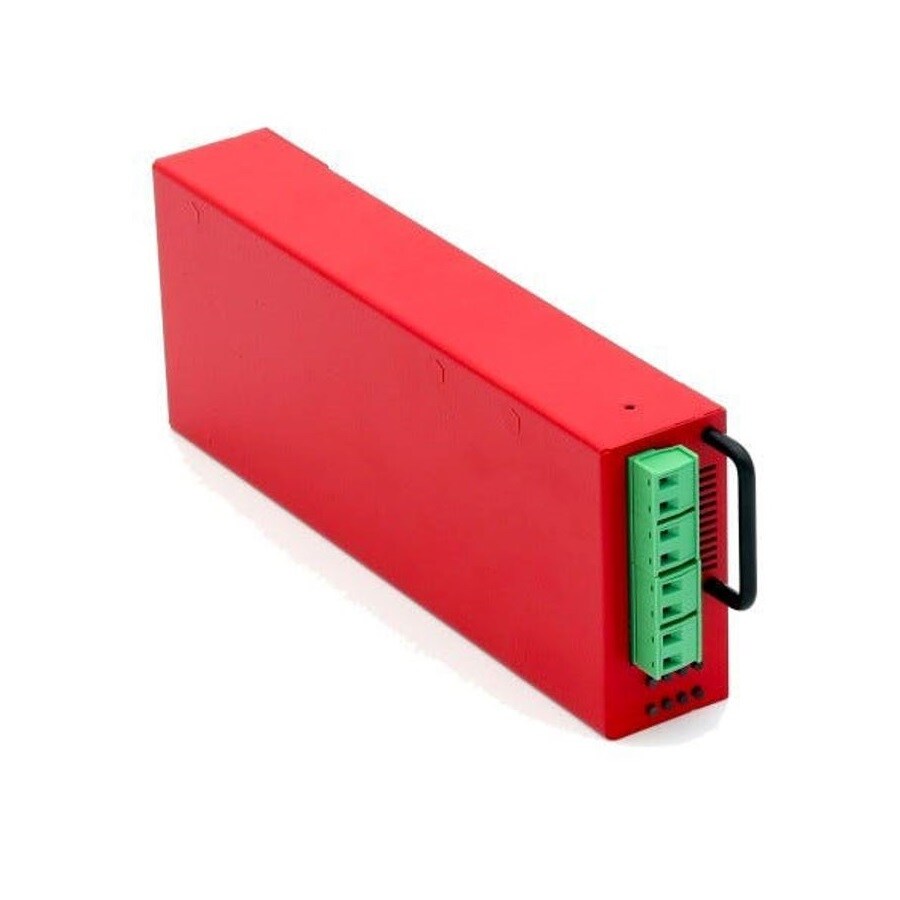

9Dot NCore Output Module 24V, 4 Ports
- SKU: NCORE-OUT-24V
$900.00
- Manufacturer: 9Dot
- Data Sheet: Download
Product Information
NCore Output Module 24V, 4 Ports
Specifications
Specifications NCORE-OUT-24V
| Electrical | |
| Operating Voltage | Rail or Battery Voltage / 36 - 72 V DC |
| Max Power | Check table |
| Power Connector | 3.3 mm2 wires terminal blocks, 4 connectors |
| Indicators | Voltage / Load percentage |
| Active Protection | Overvoltage control, Overload control |
| I/O isoltation | 1500V |
| Output | Rail or Battery Voltage 24 V DC |
| Efficiency | 94% Typ |
| Environmental | |
| Operating Temperature | -10°C to +55°C |
| Humidity | 0 - 95% non condensing |
| Mechanical | |
| Dimensions (LxWxD) | 13" x 3.94" x 5.91" inch |
| Weight | 2.21 lbs |
| Material | Varnished Iron |
| Compliance & Warranty | |
| RoHS compliant | Yes |
| Certifications | CE - FCC |
| Warranty | consult with the nearest distributor |
