Product Information

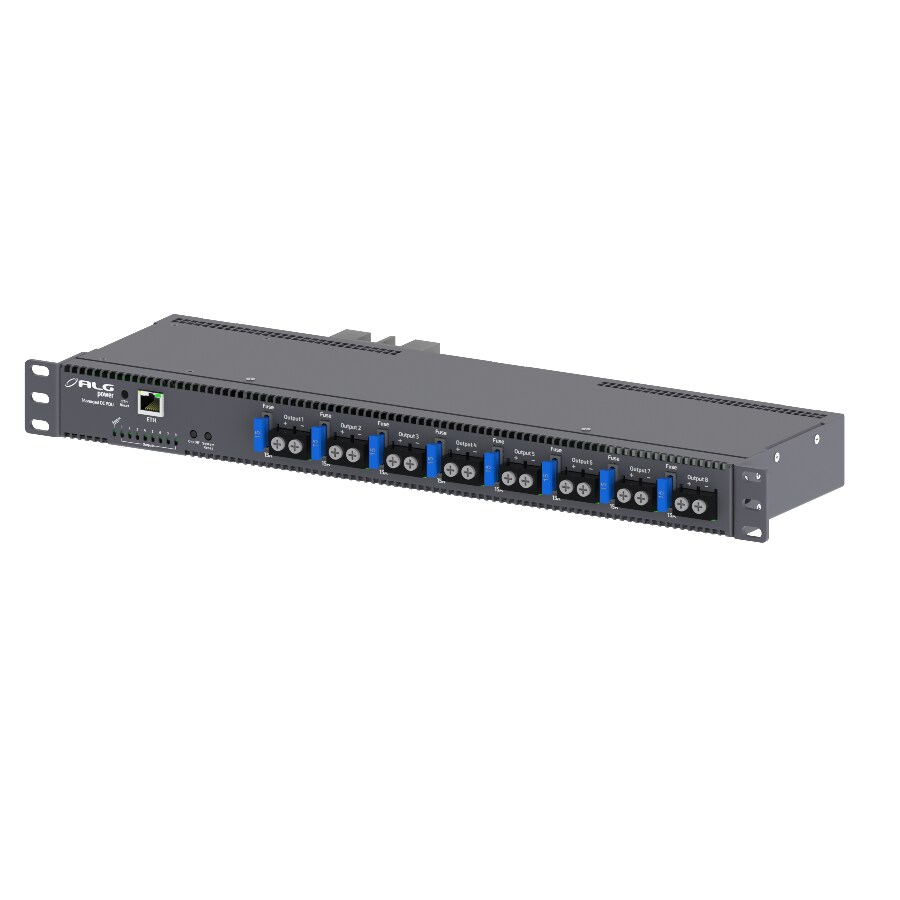

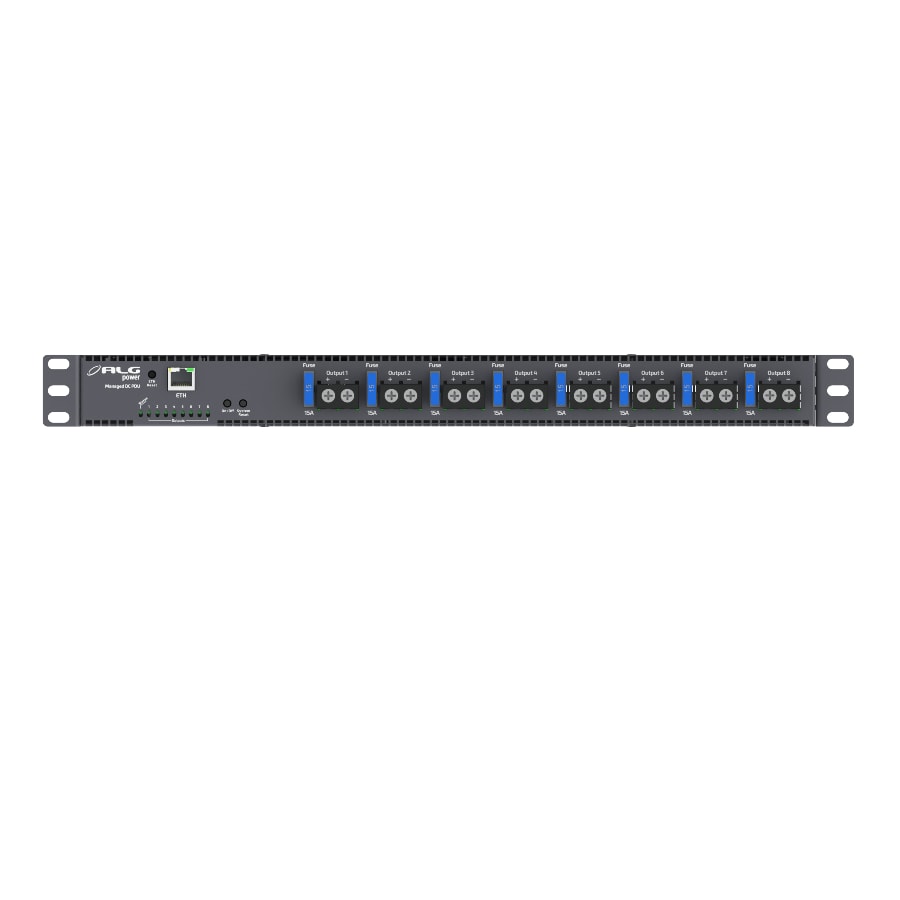

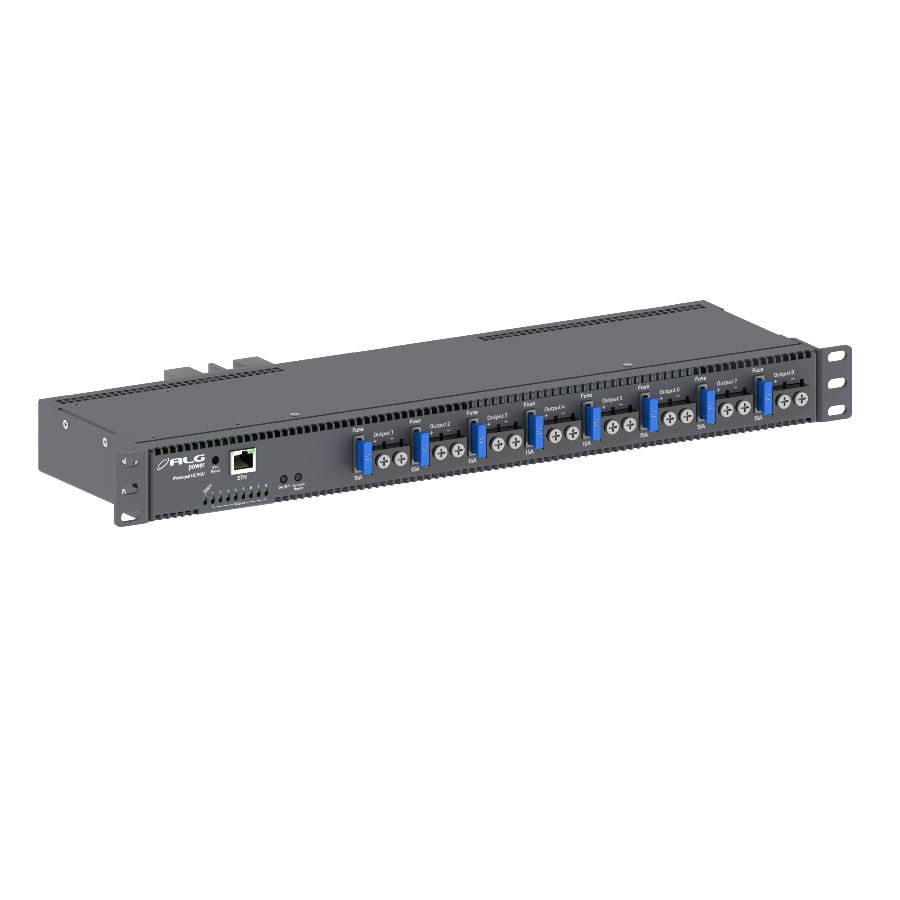

AlgCom Managed DC PDU
Specifications
Specifications 37030030001
| INPUT | |
| Input Voltage (Range) | 10 - 60 VDC |
| Frequency | DC |
| Input Current | Up to 80 A |
| Connection | The connector features a 5 mm screw, compatible with fork and ring terminals. |
| Input Protections | 15 A fuse for each output. |
| OUTPUT | |
| Output Voltage (Range) | 10 - 60 VDC |
| Current per Output | Up to 10 A |
| Total Outputs | 8 |
| Connection | Connector with 4mm Screw, Compatible with Ring and Fork Terminals. |
| Output Protections | 8 fuses of 15 A (1 for each output) for short-circuit and overload protection. |
| Disconnects the PDU for Overcurrent, Overvoltage, and Undervoltage (User-defined on the Web Page). | |
| MANAGEMENT INTERFACE | |
| Ethernet | 10/100 Mbps |
| Suported Protocols | TCP/IP – SNMP V2 |
| Firmware Updates | Remote update capability for the management interface. |
| Alarms | Alarms for overcurrent, overvoltage, and undervoltage on input power, overcurrent per output, and output fault. (Values can be user-defined through the Web Page) |
| Monitoring | Measurement of voltage, current, and power individually for each output, as well as the activation status. |
| Ability to customize the name of each output, facilitating the identification of connected devices | |
| Commands | Ability to send remote commands to turn on/off and restart outputs, individually and in groups. |
| Scheduling | Possibility to configure up to 10 schedule activations for outputs, to be defined by time and day of the week. |
| Watchdog | Possibility to configure up to 10 watchdogs to monitor equipment availability. If the configured watchdog criteria are met, the respective output will be restarted, and the counter incremented. |
| Automatic Load Shutdown | Each output is user-defined, with the option of manual or automatic restart. |
| Manual Output On/Off | Commands can be executed through a button located on the front panel. Pressing it allows turning on/off all outputs. |
| Manual Factory Reset | Commands can be executed through a button located on the front panel. Pressing it allows restoring network settings and operational configurations to factory values. |
| General Specifications | Managed AC PDU |
| Input to Ground Isolation | 500 VDC |
| Output to Ground Isolation | 500 VDC |
| Operating Temperature | -10 °C to 60 °C |
| Operating Humidity | 20 to 90% (non-condensing) |
| Alarm (Green LED) | Activated and Energized Outputs |
| Alarm (Blinking Green LED) | Failure in the Corresponding Output |
| MTBF | >120.000 hours |
| Installation Mode | 1U Height for 19" Rack Mounts |
| Dimensions (H x W x D) / Weight | 43 x 440 x 170 mm / 2,2 kg 1.69 X 17.32 X 6.69 inch / 4.85 lbs. |
