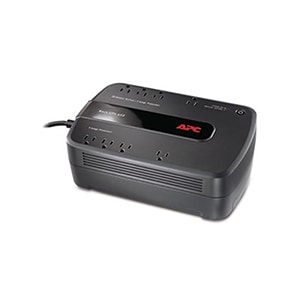

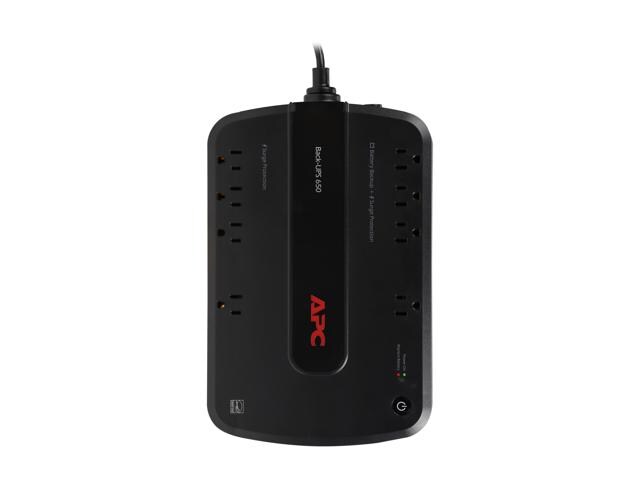

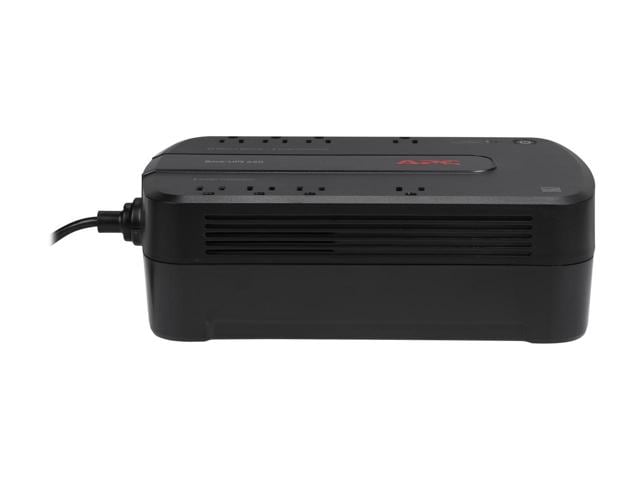

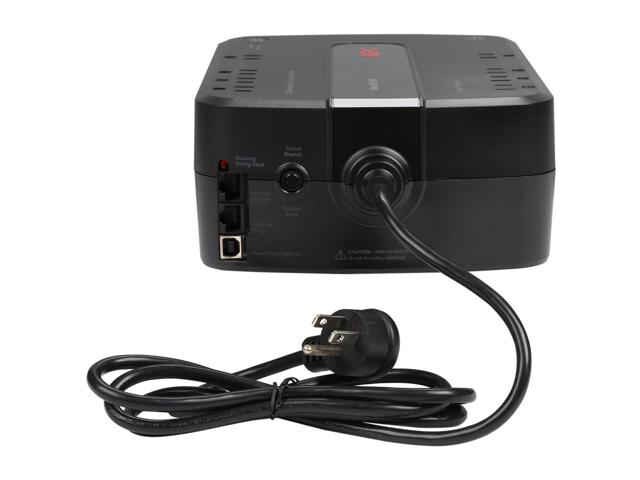

Apc Schneider Electric It Container APC by Schneider Electric Back-UPS 650 VA Desktop UPS - 650 VA/390 W - 120 V AC - 3 Minute Stand-by Time -...
- SKU: BE650G1
$110.99 $123.00
- Manufacturer: APC
- Data Sheet: Download
Product Information
APC Back-UPS, 390 Watts / 650 VA, Input 120V / Output 120V, Interface Port USB
Specifications
| Output | |
| Output Power Capacity | 390 Watts / 650 VA |
| Max Configurable Power | 390 Watts / 650 VA |
| Nominal Output Voltage | 120V |
| Output Frequency (sync to mains) | 60 Hz |
| Waveform Type | Stepped approximation to a sinewave |
| Output Connections | (4) NEMA 5-15R (Battery Backup), (4) NEMA 5-15R (Surge Protection) |
| Required Output Current Protection | 15A |
| Input | |
| Nominal Input Voltage | 120V |
| Input Frequency | 50/60 Hz |
| Input Connections | NEMA 5-15P |
| Cord Length | 6 feet (1.83 meters) |
| Input voltage range for main operations | 88 - 139V |
| Maximum Input Current | 12A |
| Input Breaker Capacity | 15A |
| Batteries & Runtime | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time | 24 hour(s) |
| Replacement battery cartridge | RBC17 |
| RBC™ Quantity | 1 |
| Communications & Management | |
| Interface Port(s) | USB |
| Control Panel | LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge Energy Rating | 365 Joules |
| Filtering | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Dataline Protection | RJ-45 Modem/Fax/DSL/10-100 Base-T protection,Co-axial Video / Cable protection |
| Physical | |
| Maximum Height | 3.40 inches (86 mm) |
| Maximum Width | 7.10 inches (180 mm) |
| Maximum Depth | 11.20 inches (284 mm) |
| Net Weight | 13.64 lbs. (6.20 kg) |
| Color | Black |
| SCC Codes | 1073130425652 3 |
| Environmental | |
| Operating Environment | 32 - 104°F (0 - 40°C) |
| Operating Relative Humidity | 5 - 95% |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | 5 - 113°F (-15 - 45°C) |
| Storage Relative Humidity | 5 - 95% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Audible noise at 1 meter from surface of unit | 45.00 dBA |
| Online Thermal Dissipation | 15.00 BTU/hr |
| Conformance | |
| Regulatory Approvals | CSA C22.2 No. 107.1,FCC Part 15 Class B,FCC Part 68,NOM,TUV-C,UL 1778 |
| Standard Warranty | 3 years repair or replace |
| Environmental Compliance | RoHS,REACH: Contains No SVHCs |
