Product Information

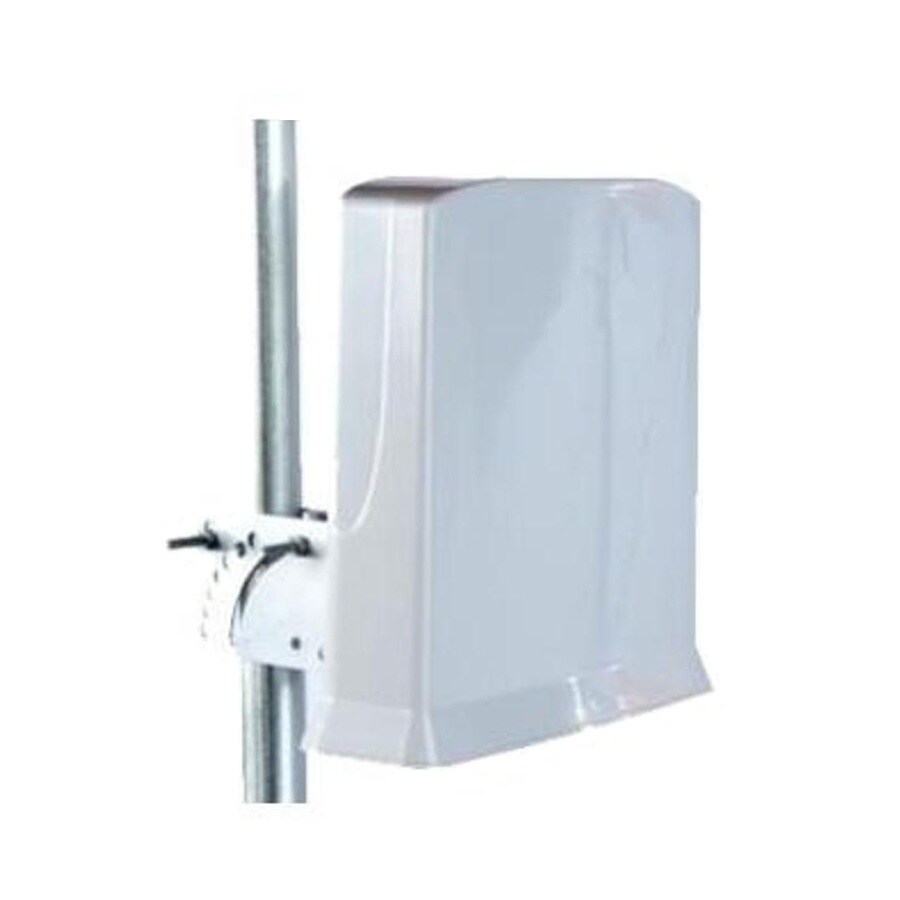

ARC Wireless ARC-IP2416S01
Specifications
Specifications ARC-IP2416S01
Electrical Specifications
| Frequency Range | 2.3-2.5 GHz |
| Gain (Typ) | 16.0 dBi typical |
| Polarization | Single linear, vertical |
| 3dB Beamwidth Vertical/ Horizontal | 26 deg/26 deg |
| VSWR | ≤1.5:1 typical, 1.7:1 max |
| Front-to-Back Ratio | ≤30 dB |
| Cross Polarization | ≤20 dB |
| Power Rating | 6 watts |
| Impedance | 50 ohms |
| Lightning Protection | DC Ground |
| Connector Type | R/A SMA Jack |
Physical/Environmental Specifications
| Length x Width x Depth | 11.12 in x 4.05 in x 10.49 in (28.2 cm x 10.3 cm x 26.6 cm) |
| Radio Area Dimensions | 8.62 in x 9.30 in x 1.16 in (21.9 cm x 23.6 cm x 2.95 cm) |
| Weight | 3.2 lbs (1.5 kg) |
| Groundplane | Aluminum |
| Radome | UV stabilized ABS plastic, gray |
| Wind Survivability | 125mph (201kph) |
| Wind Load | .77 ft2 (0.072 m2 ) |
| Operating Temperature | -49°F to 149°F (-45°C to 65°C) |
| Pole Mount Diameter | 1.3 in—2.0 in (3.3 cm—5.1 cm) |
