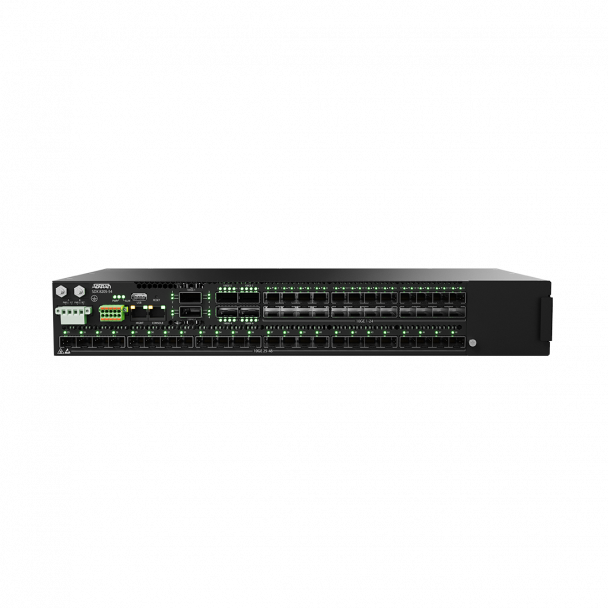

SDX 8205-54 Aggregation Switch supporting 6x100G uplinks & 48x10G interfaces. (4) of the 100G interfaces are QSFP28 interfaces and (2) are QSFP-DD capable. The unit is DC-powered with side to side airflow. The unit ships with 19in mounting brackets.
- SKU: 11971221F1
$18,995.20
+ $786.24 Tariff
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
SDX 8205-54 10G S2S
Specifications
Specifications
| Uplink Interfaces | 2x100GE QSFP-DD/28 4x100GE QSFP28 48x10GE SFP+ |
| Each Port Supports: | QSFP: 1x100 GE 1x40 GE 4x25 GE (breakout cables) 4x10 GE (breakout cables) SFP+: 1x10 GE 1x1 GE |
| Switch Capacity | 880 Gbps |
| Jumbo Frames MTU | 9216 Bytes |
| MAC Addresses | 750K |
| Rack Units | 1.5RU |
| Mounting Brackets | 19, 21, 23-in |
| Airflow Options | S2S |
| Dimensions (DxWxH) | 230 x 387 x 66 mm 9.05 x 15.23 x 2.59 in |
| Weight | 23 lbs/10 kg |
| Powering Options | -48VDC Redundant Feed |
| Typ Power Consump- tion w/o Optics | TBD |
| Typ Power Consump- tion with Optics | TBD |
| Max Power Consumption with Optics | TBD |
| Temperature Range | -40 to 65°C |
| Relative Humidity | up to 95% non-condensing |
