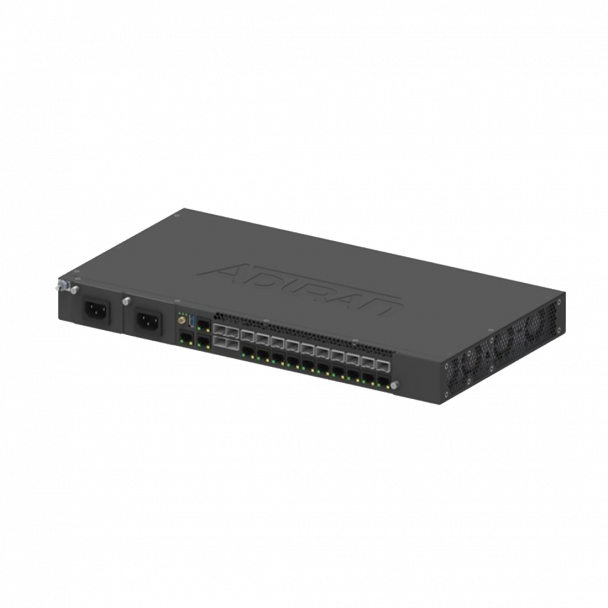

SDX 8120-14 Aggregation Switch supporting 4x10G SFP+ uplinks and 10x1G optical SFP or copper RJ45. The unit is DC-powered with side to side airflow. The unit ships with 19in mounting brackets
- SKU: 11971230F1
$8,904.00
+ $368.55 Tariff
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
SDX 8120-14 10G CE DC
Specifications
Specifications 11971230F1
| Uplink Interfaces | 4x10GE SFP+ 10x1GE SFP |
| Each Port Supports: | SFP+: 1x10 GE 1x1 GE |
| Switch Capacity | 140 Gbps |
| Jumbo Frames MTU | 9216 Bytes |
| MAC Addresses | 750K |
| Rack Units | 1.5RU |
| Mounting Brackets | 19, 21, 23-in |
| Airflow Options | S2S |
| Dimensions (DxWxH) | 230 x 387 x 66 mm 9.05 x 15.23 x 2.59 in |
| Weight | 23 lbs/10 kg |
| Powering Options | -48VDC Redundant Feed |
| Typ Power Consump- tion w/o Optics | TBD |
| Typ Power Consump- tion with Optics | TBD |
| Max Power Consumption with Optics | TBD |
| Temperature Range | -40 to 65°C |
| Relative Humidity | up to 95% non-condensing |
