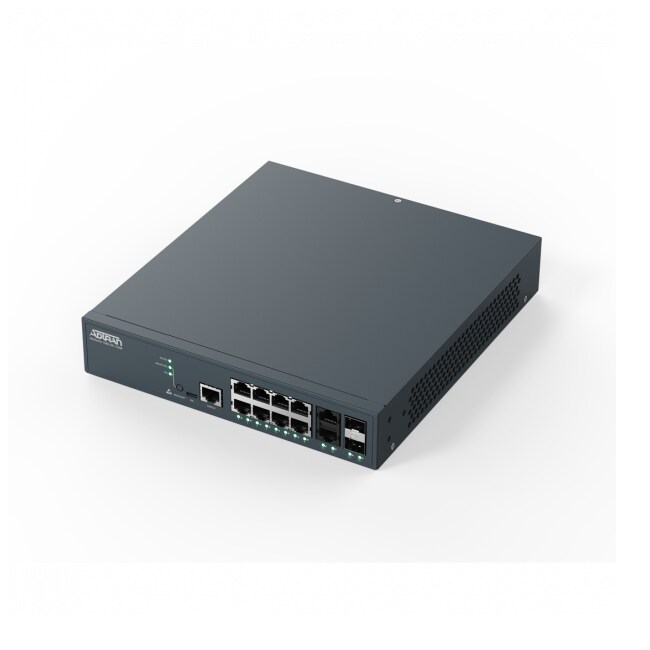

12 Port Managed Layer 2/3 lite Gigabit PoE Eth. Switch. Includes 8 RJ45 and 2 SFP/RJ45 ports. 65W PoE budget supporting 802.3af and 802.3at. Desktop, wallmount included. 19in rackmount brackets sold separately (1700518F1).
- SKU: 17101561PF2
$554.08
+ $11.47 Tariff
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
NETVANTA 1560-08-65W
Specifications
Specifications 17108108PF2
| Ethernet Ports | ■ NetVanta 1560-08 (65W & 150W): ◆ 10 x 10/100/1000Base-T ◆ 2 x 1Gbps SFP Port ■ NetVanta 1560-24 (370W & 740W): ◆ 24 x 10/100/1000Base-T ◆ 2 x 10 Gbps SFP+ Ports ■ NetVanta 1560-48 (370W & 740W): ◆ 48 x 10/100/1000Base-T ◆ 4 x 10 Gbps SFP+ Ports |
| Console Port | ■ RJ-45 ■ Micro USB |
| Switching Performance | ■ Non-blocking Layer 2/3 Switching ■ 32,000 MAC addresses ■ 4,095 VLANs ■ Up to 176 Gbps forwarding bandwidth |
| Layer 2 Support | ■ 802.1q VLAN switching and Trunking ■ 802.1d Spanning Tree ■ 802.1w Rapid STP ■ 802.1s Multiple STP ■ ERPS G.8032 supporting up to 100 rings ■ 802.3ad Link Aggregation ■ Jumbo Frames (10240) ■ IGMP v1/v2/v3 Snooping/Querier/Proxy ■ MLD v1/v2 Snooping ■ 802.3x Flow Control ■ GVRP/MRP/MVRP ■ Loop Protection |
| Layer 3 Support | ■ DHCP relay ■ UPnP ■ 1000 ARP Entries ■ 128 Static Routes (IPv4 and IPv6) |
| Diagnostics | ■ Port and Flow Mirroring ■ Uni Directional Link Protection ■ LLDP (802.1ab) ■ LLDP-MED ■ Ping, Traceroute ■ sFlow ■ Cable Diagnostics |

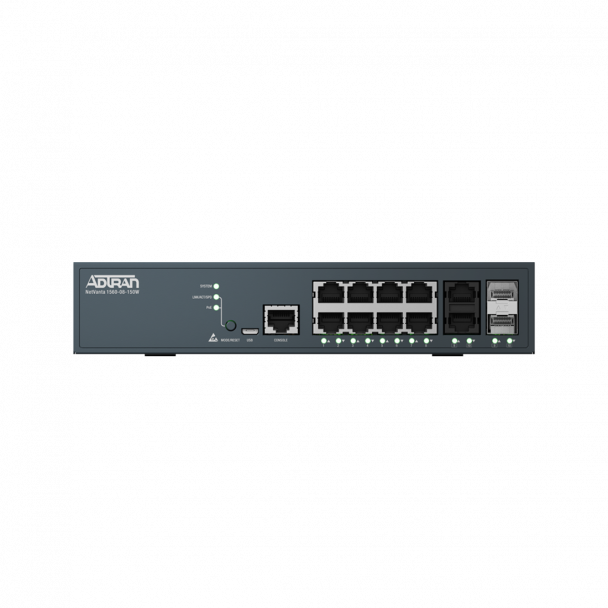

| Front Panel Status LEDs | ■ Status ■ LAN: Link, Activity ■ LED Port Button: Toggle Port LEDs between Link, Activity, and POE Status |
| Quality of Service | ■ 802.1p, Drop Precedence Level, DSCP, Priority Code Point ■ Eight hardware queues per port ■ Classification and remarking ACLs ■ Strict Priority Scheduling ■ Weighted Round Robin (WRR) ■ Policing and Shaping per port ■ Port and Queue based ■ WRED ■ QoS Control List ■ Drop Eligible Indicator ■ Ingress and Egress Maps ■ Storm Policing |
| VLAN | ■ 4K VLANs simultaneously ■ Port-based VLANs ■ 802.1Q Tagged Trunked VLANs ■ Voice VLANs ■ MAC-based VLAN ■ Management VLAN ■ Q-in-Q VLAN ■ Private VLANs ■ Protocol-based VLAN |
| Security | ■ 802.1x Port Authentication ■ L2 VLAN client isolation ■ Port Security ■ IP source guard ■ RADIUS/TACACS+ ■ DoS Protection ■ DHCP Snooping ■ Hardware ACLs ■ Users and Privilege Levels ■ ARP Inspection |
| Administration | ■ CLI (Console/Telnet/ SSH) ■ SNMP v1,v2c,v3 ■ Web-based GUI ■ Dual image ■ SYSLOG ■ RMON ■ sFlow ■ RADIUS ■ TACACS+ ■ NTP ■ n-Command Support |
| PoE | ■ 802.3af (PoE), 802.3at (PoE+) and Legacy PoE ■ Max 30 Watts per Port ■ 802.3az Energy Efficient Ethernet ■ Power Management ■ PoE Scheduling |
| Environment | ■ Operating Temperature: 0° to 50°C (32° to 122°F) ■ Storage Temperature: -20° to 70°C (-40° to 158°F) ■ Relative Humidity: Up to 95%, non-condensing |
| NetVanta 1560-08 (65W & 150W) | ■ Chassis: 1U Metal Enclosure, ■ Desktop, Wall and Rackmountable ■ Dimensions: 1.73 in. x 8.66 in. x 9.53 in. (4.4 cm x 22 cm x 24.2 cm) (H x W x D) ■ Weight: 4.63 lbs (2.1 Kg) ■ Voltage: 100-240 VAC, 50/60 Hz ■ Max Power: 170 Watts ■ PoE Power: 65W & 150W |
| Agency Approvals | ■ FCC Part 15 Class A ■ IECS-003 Class A ■ ETSI EN 300 386 ■ UL/CSA 60950-1 and IEC60950-1 ■ CE Marking ■ RoHS Compliant ■ RCM mark for Australia and New Zealand |
| Warranty | ■ Limited Lifetime Warranty ◆ Includes access to phone product support |
