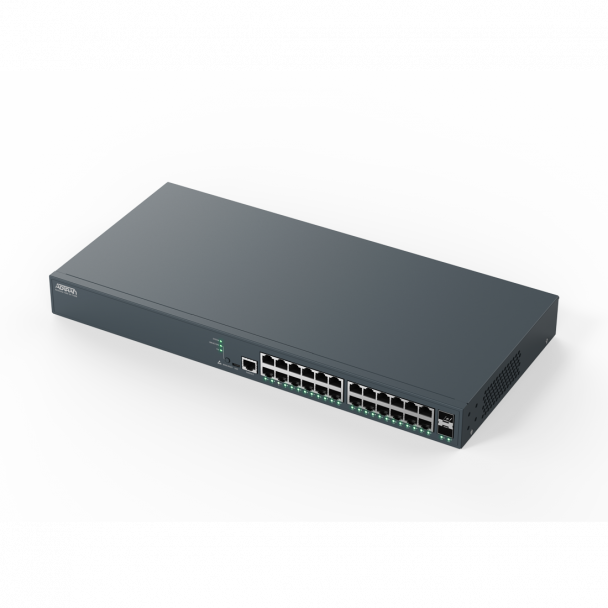

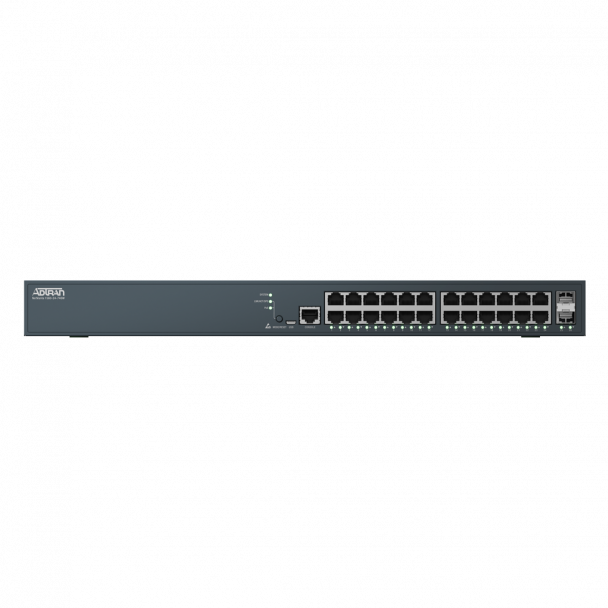

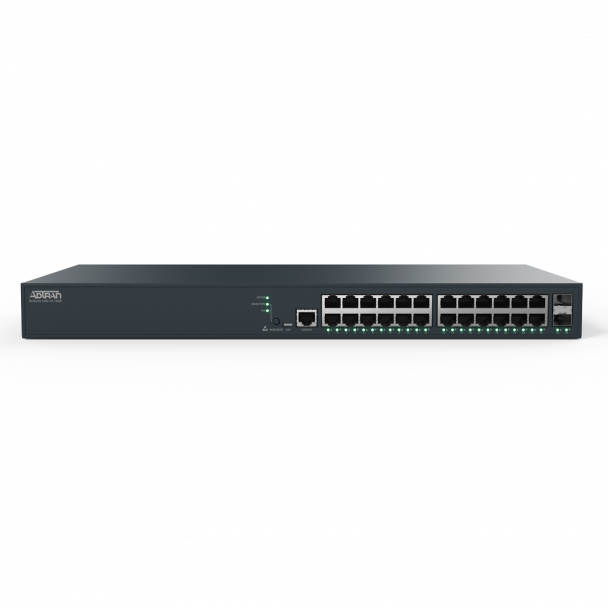

26 Port Managed Layer 2/3 lite Gigabit Eth. Switch. Includes 24 RJ45 and 2 SFP+ ports, 19in rackmount brackets. Wallmount brackets available (1700520F1).
- SKU: 17101564F1
$1,418.64
+ $29.36 Tariff
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
NETVANTA 1560-24
Specifications
Specifications 17101564F1
| Physical Interfaces | |
| Ethernet Ports | ■ NetVanta 1560-24 (370W & 740W): ◆ 24 x 10/100/1000Base-T ◆ 2 x 10 Gbps SFP+ Ports |
| Console Port | ■ RJ-45 ■ Micro USB |
| Switching Performance | ■ Non-blocking Layer 2/3 Switching ■ 32,000 MAC addresses ■ 4,095 VLANs ■ Up to 176 Gbps forwarding bandwidth |
| Layer 2 Support | 802.1q VLAN switching and Trunking ■ 802.1d Spanning Tree ■ 802.1w Rapid STP ■ 802.1s Multiple STP ■ ERPS G.8032 supporting up to 100 rings ■ 802.3ad Link Aggregation ■ Jumbo Frames (10240) ■ IGMP v1/v2/v3 Snooping/Querier/Proxy ■ MLD v1/v2 Snooping ■ 802.3x Flow Control ■ GVRP/MRP/MVRP ■ Loop Protection |
| Layer 3 Support | ■ DHCP relay ■ UPnP ■ 1000 ARP Entries ■ 128 Static Routes (IPv4 and IPv6) |
| Physical and Power | NetVanta 1560-24 (370W & 740W) ■ Chassis: 1U, 19in. (48.26cm) ■ Rackmountable ■ Dimensions: 1.73 in. x 17.4 in. x 8.31 in. (4.4 cm x 44.2 cm x 21.1 cm) (H x W x D) ■ Weight: 8.6 lbs. (3.9 kg) ■ Voltage: 100-240 VAC, 50/60 Hz ■ Max Power: 900 Watts ■ PoE Power: 370W & 740W |
| Agency Approvals | ■ FCC Part 15 Class A ■ IECS-003 Class A ■ ETSI EN 300 386 ■ UL/CSA 60950-1 and IEC60950-1 ■ CE Marking ■ RoHS Compliant ■ RCM mark for Australia and New Zealand |
| Warranty | ■ Limited Lifetime Warranty ◆ Includes access to phone product support |
