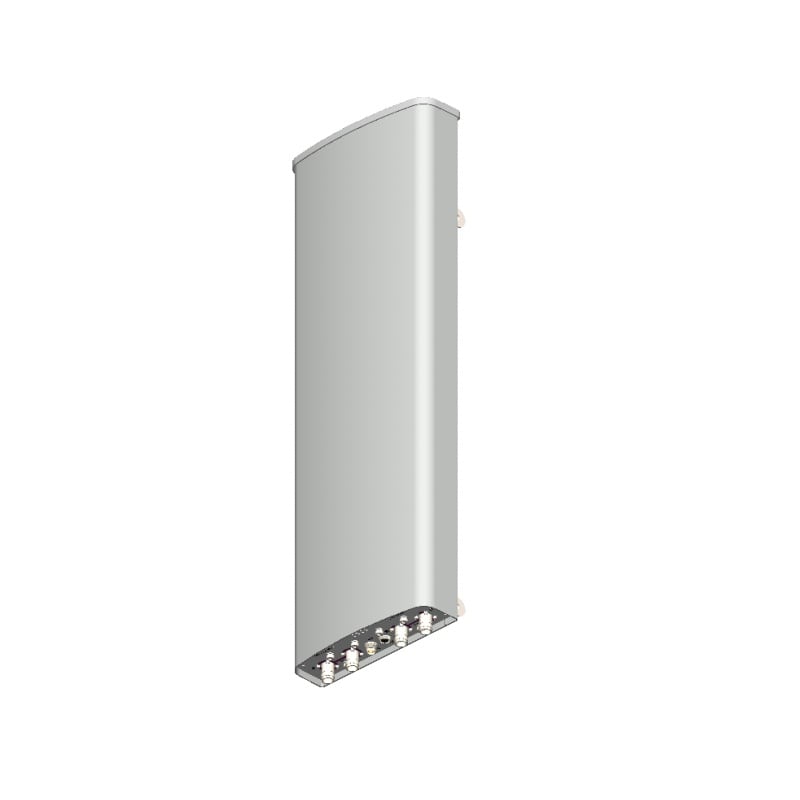

Alpha Wireless: 3300-3800Mhz 4x4 65 degree 17.9dBi w/ MET, 4.3/10
- SKU: AW3161-M-F
$939.00
- Manufacturer: Alpha Wireless
- Data Sheet: Download
Product Information
Alpha Wireless - 4 Port B42, 43 & 48 - 65⁰- MET Panel Antenna
Specifications
Specifications AW3161-M-F
| Electrical Specifications | |
| Frequency Range | 3300 - 3800MHz |
| Polarization | ±45° Slant Linear |
| Gain | |
| Min Tilt | 17.3 (T0) dBi |
| Mid Tilt | 17.0 (T5) dBi |
| Max Tilt | 16.7 (T10) dBi |
| Overall Tilts | 17dBi |
| Azimuth Beamwidth | 65° |
| Azimuth Beam Squint | 3° |
| Elevation Beamwidth | 7° |
| Electrical Downtilt | T0⁰ - T10⁰ |
| Electrical Downtilt Deviation | 1° |
| Impedance | 50 Ohms |
| VSWR | 1:5 |
| Return Loss | 14dB |
| Isolation | 28dB |
| Front to Back Ratio (total power ±30°) | 30dB |
| Upper Sidelobe Suppression (peak to 20°) | 18dB |
| Cross Polar Discrimination at Sector | 16dB |
| Maximum Effective Power per Port | 150W |
| Mechanical Specifications | |
| Dimensions | (33.5" x 11" x 3.3") |
| Net Weight (antenna) | 6 kg (19.8 lbs) |
| Net Weight (mount) | 1.5 kg (3.4 lbs) |
| Shipping Weight | 23.2 lbs |
| Connector Quantity | 4.3-10 or N Type |
| Connector Position | Bottom |
| Windload Frontal | 220 N |
| Windload Lateral | 80N |
| Survival Wind Speed | 200kmh (125mph) |
| Radome Material | UV-Stabilized PVC |
| Product Compliance Environmental | RoHS |
| Lightning Protection | DC Grounded |
| Cold Temperature Survival | -40°C (-40°F) |
| Hot Temperature Survival | +70°C (158°F) |
