Product Information
Product Features:
- Independent and close network make it more secure for transmitting sensitive data.
- Works in the 3.5GHz CBRS spectrum with less interference and no additional cost.
- Support Modus protocol conversion between RS232/485 and IP-based devices.
- Digital I/O with event handling allows you to integrate sensors and alarms in the field.
- DC 9-36V and -22°F to 158°F working temperature range means it can work in a harsh environment.

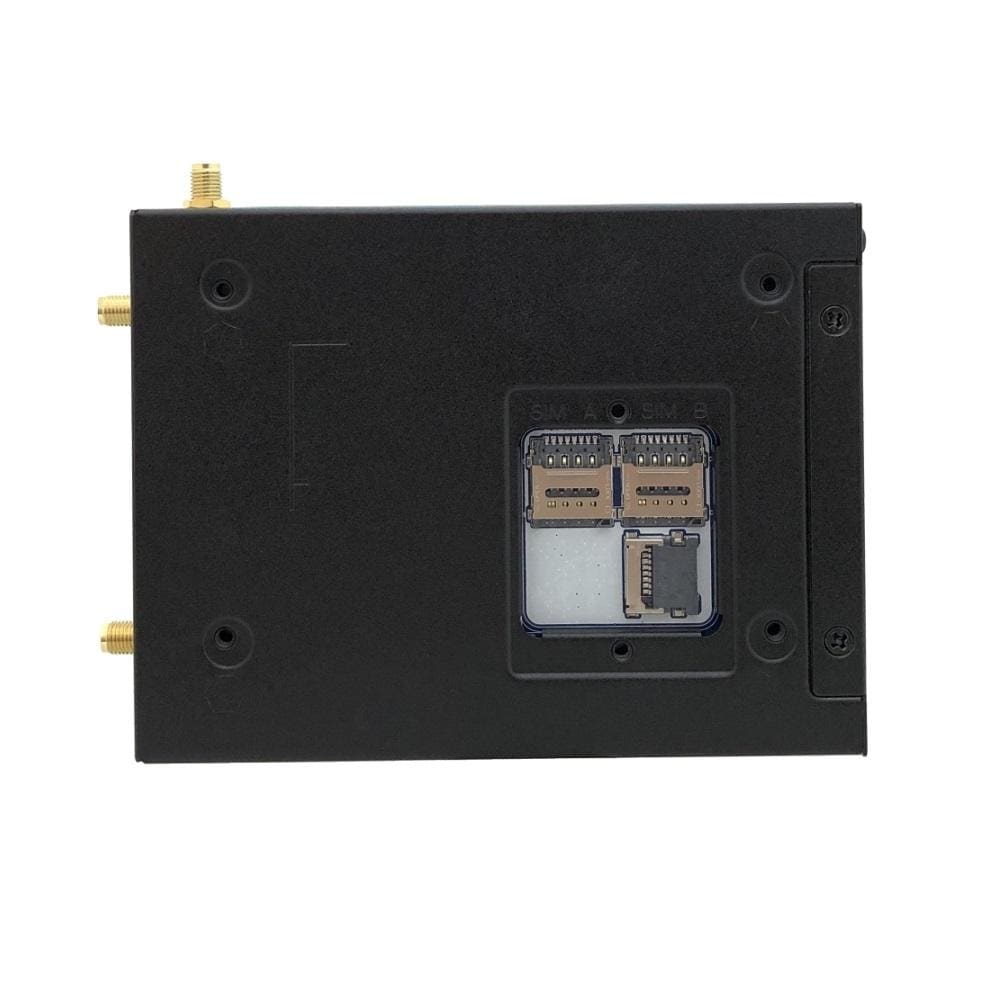

- 2x Micro-SIM slots (3FF)
- 2x GbE RJ45 ports
- 2x RS232/485
- 1x DI
- 1x DO
- 1x Type-A USB port
- 1x Micro-SD slot
- GPS

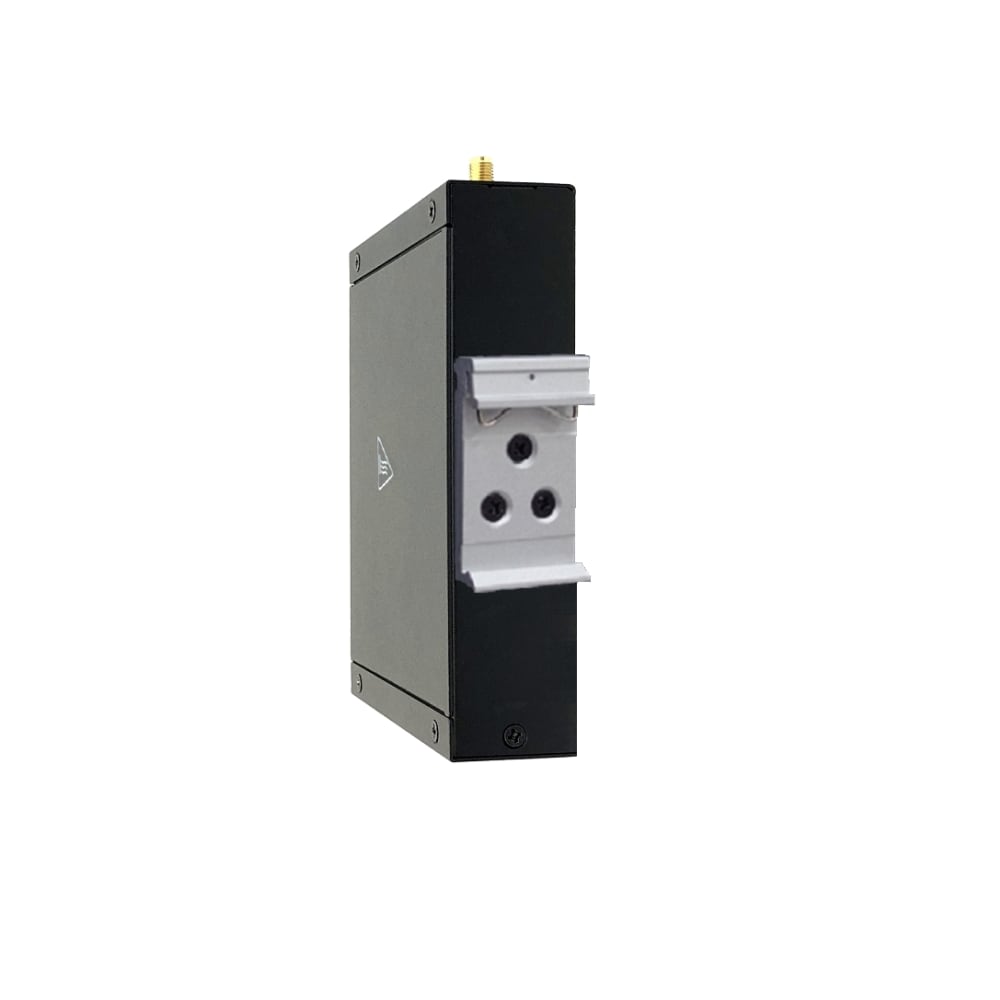

- DIN Mount
Specifications
Specifications IOG700-CC501
| Device Interface | |
| LTE Module | 1*Cat-12 LTE-TDD, 2*SIM |
| LTE Band | Band 42/43/48(CBRS) 2x CA (Downlink): B42+B42 B48+B48 2x CA (Uplink): B42+B42 B48+B48* 3x CA (Downlink): B42+B42+B42 B48+B48+B48 |
| Ethernet | 1(2)*RJ45 Gigabit Ethernet |
| Field Bus | 2*RS232/485 (Terminal Block) |
| Log Storage | 1*USB, 1*Micro SD |
| I/O | 1*DI (“Logic 0”: 0~2V, “Logic 1”: 5V~30V), 1*DO (Relay Mode, up to 30V/1A) |
| Power Input | 1* DC 9V~36V (Terminal Block) |
| Antenna Con. | 2*SMA (F)-LTE, 1* SMA(F)-GNSS |
| WAN & Uplink | |
| WAN | CBRS LTE, Ether-WAN; Failover |
| Cellular | CBRS LTE, IP Pass-through, IPv4/v6 |
| Ether-WAN | Dynamic IP, Static IP, PPPoE , PPTP, L2TP |
| Network Monitor | ICMP/DNS Query |
| Protocol | |
| LAN & VLAN | DHCP Server/Relay, Port/Tag based VLAN |
| IPv6 | Dual Stack, Static IPv6, DHCPv6, PPPoEv6 |
| Port Forward | Virtual Server, Virtual Computer, DMZ, VPN Pass-through |
| Routing | Static, Dynamic - RIP1/RIP2, OSPF, BGP |
| Field Comm. | |
| Virtual COM | RFC2217, TCP Client, TCP Server, UDP |
| Modbus | Gateway for Modbus TCP/RTU/ASCII Master/Slave Access; Slave for Device Status/Information Access |
| Data Logging | Sniffer, Off-line / Full-time Proxy, mixed modes |
| Object | |
| Scheduling | Time Schedule List |
| Grouping | Host Grouping List |
| Ext. Server | Email, Syslog, RADIUS, SCEP, FTP, DDNS, IGMP |
| Certificate | My Certificate, Trusted Certificate, Issue Certificate |
| Service | |
| Cellular Toolkit | Data Usage, SMS, SIM PIN, USSD, Network Scan |
| Event Handling | User Defined Manage/Notify Event; Action & Trigger by SMS, Mail, Syslog, SNMP Trap, Modbus, I/O |
| GNSS | GPS Location Tracking / Viewer |
| Security | |
| VPN Tunneling | IPSec, OpenVPN, PPTP, L2TP, GRE |
| Scenario | Site/Host to Site/host; Hub and Spoke; Dynamic VPN |
| VPN Capability | IPSec: up to 16 tunnels |
| Firewall | SPI Firewall with Stealth Mode, IPS |
| Access Control | Packet Filter, URL Blocking, MAC Filter |
| Administration | |
| Configuration & Mgmt. | Web, Telnet & SSH, Command Script, SNMPv3 Std. & Proprietary MIB, TR069 |
| System: | Upgrade, Backup & Restore, Reboot & Reset, SysLog |
| Diagnostic | Packet Analyzer, Diagnostic Tools |
| Environment | |
| Operation Temperature | -22°F-158°F (-30°C-70°C) |
| Storage Temperature | -40°F-185°F (-40°C-85°C) |
| Humidity | 10%~95% (non-condensing) |
| Enclosure | Metal, DIN-Rail, Mounting Bracket (sold separately) |
| Dimension | 31x 99 x131mm (w/o DIN-Rail kit) 31x108x131mm (with DIN-Rail kit) |
| Weight | 1 lbs |
| Dimension (L x W x H) | 12" x 5" x 3" inch |
