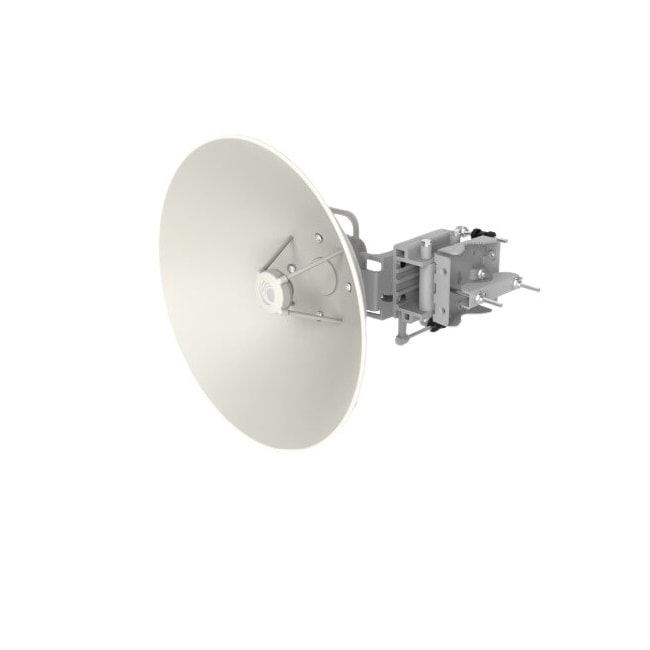

Cambium Networks 28GHz cnWave C100 CPE - Radio
- SKU: C280500C001A
$651.02
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
28 GHz cnWave C100 CPE Radio - 4 Pack Packaging
Specifications
Specifications C280500C001A
| Weight | 6.39 lbs |
| Dimensions (LxWxH) | Radio only: 34 x 14 x 8 cm (13.9 x 5.5 x 3.1 in.) |
| Frequency Range | 24.25 – 29.50 GHz |
| Channel Width | 50*, 56, 100*, 112 MHz channels |
| MAC (Media Access Control) Layer | 5G NR Air Interface |
| Physical Layer | OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP, SNMP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro™ |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License for attached Access Point) |
| Maximum EIRP | +48 dBm |
| Hybrid ARQ | Yes, DL and UL |
| Maximum Deployment | Up to 5 km (3.2 miles |
| Latency | 1–2 ms, typical |
| Quality of Service Four levels* | Four levels* |
| Antenna Connection | Integrated Reflector Dish |
| Integrated Antenna Peak Gain | 36 dBi |
| Beam width - Azimuth | 2º |
| Beam width - Elevation | 2º |
| Physical | |
| Mean Time Between Failure | > 40 years |
| Environmental | IP67, IP66 |
| Temperature / Humidity | -40°C to 60°C (-40°F to 140°F), 100% non-condensing |
| Weight | Dish + Radio: 3.8 kg (8.4 lbs); with Precision bracket: 6.5 kg (14.3 lbs) |
| Wind Loading - Front Facing | @ 145 km/h (90 mph): < 207 N |
| @ 200 km/h (124 mph): < 395 N | |
| Dimensions | Radio only: 34 x 14 x 8 cm (13.9 x 5.5 x 3.1 in.) Assembled unit: 46 cm (18.1”) diameter, 24 cm (9.4”) depth |
| Power Consumption | 20W maximum |
| Input Voltage | 40–60 VDC |
| Mounting Brackets | C000000159A - 28 GHz cnWave Precision Bracket Kit C000000160A - 28 GHz cnWave Fine Adjust Bracket Kit |
| ISED Canada | RSS-191, SRSP 342.25 & SRSP 325.25 |
| FCC | CFR47 Part 101 & CFR47 Part 30 |
| CE | EN 302 326-2, v2.1.0 |
