Product Information

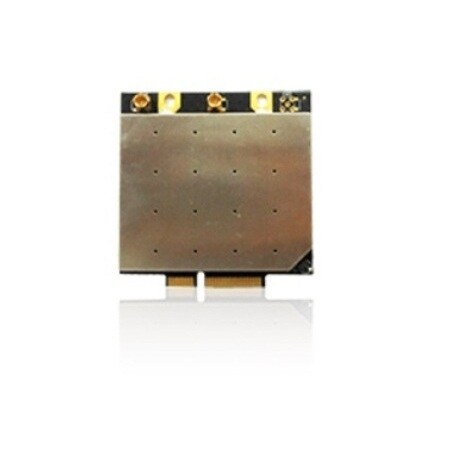

Compex WLE600V5-23
Specifications
Specifications WLE600V5-23
| Chipset | QCA9882 |
| Host Interface | PCI-Express 1.1 Standard |
| Operating Voltage | 3.3 VDC, 5V (compulsory and external) |
| Power Consumption | 7W |
| Antenna Connector | 2 x MMCX Antenna Connector |
| Frequency Range | 5.150 ~ 5.875 GHz |
| Modulation Techniques | OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| RoHS Compliance | Yes |
| Temperature Range | Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC |
| Humidity | Operating:5% to 95% (non-condensing) |
| Dimension (W x H x D) | 50.95 x 50 x 3.2 (H x W x D) |
