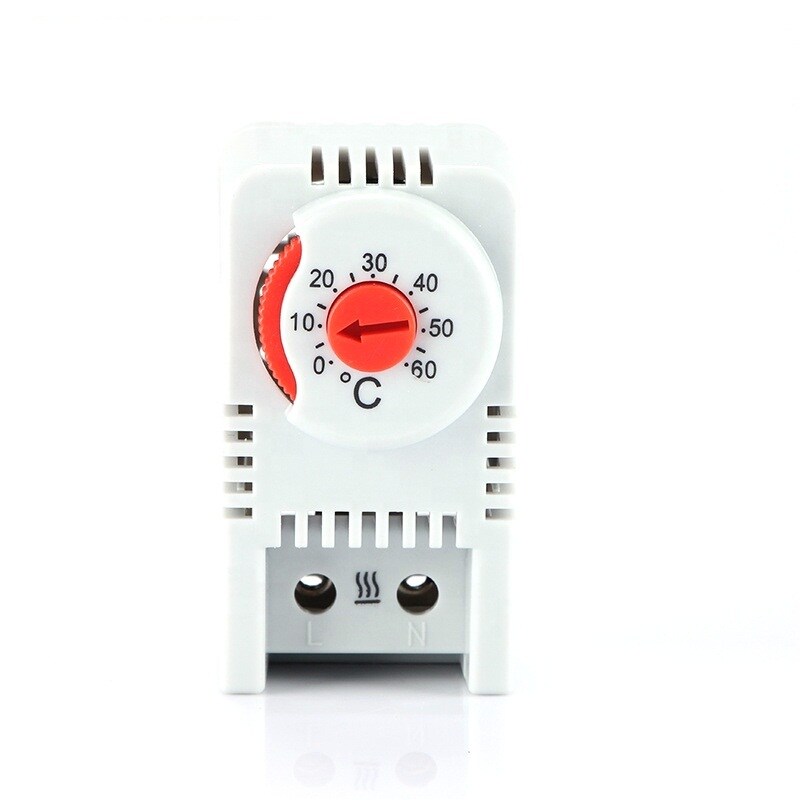

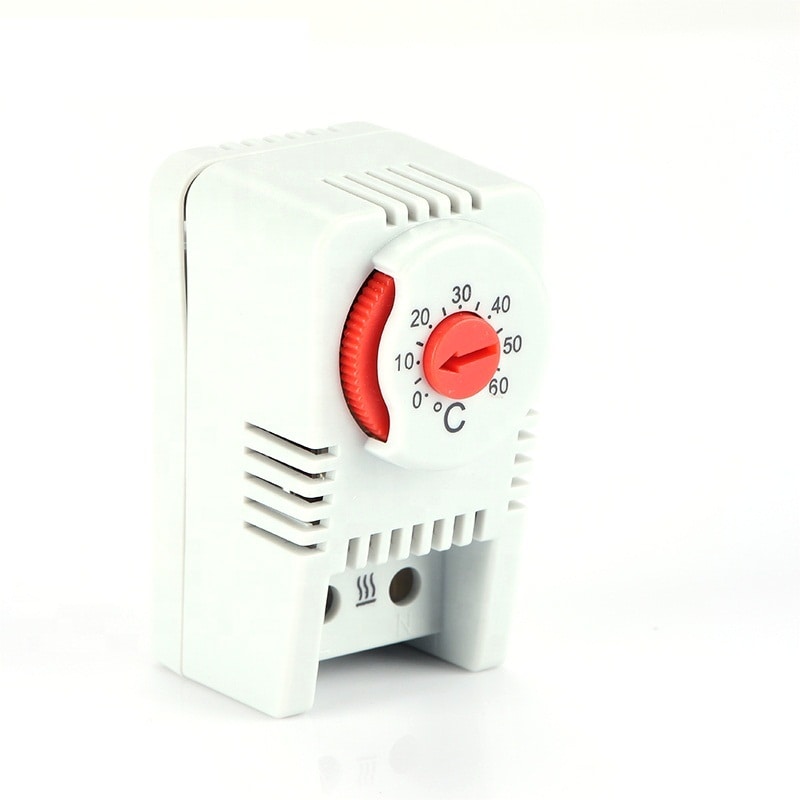

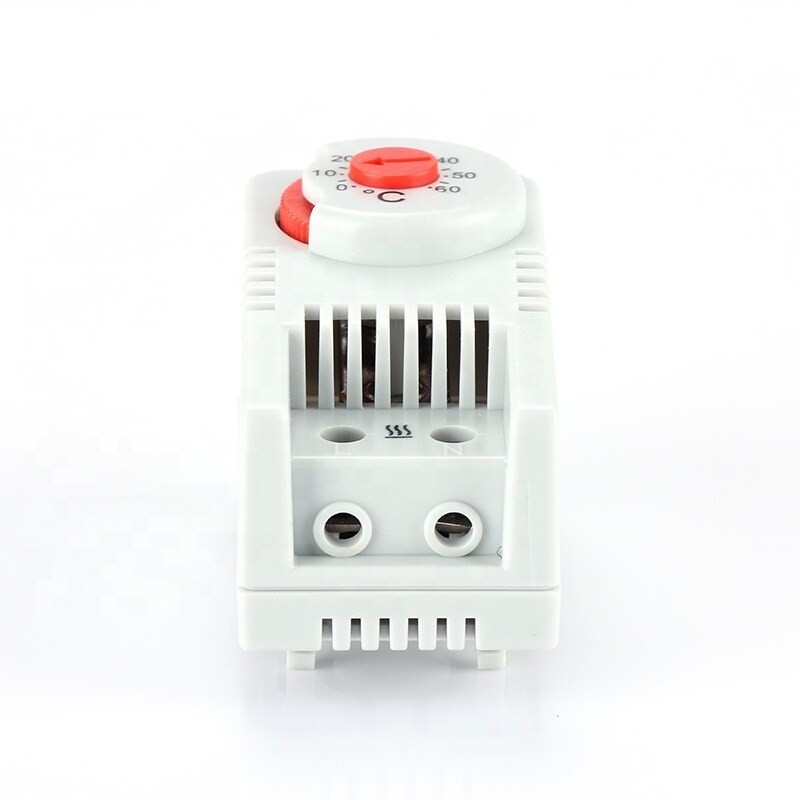

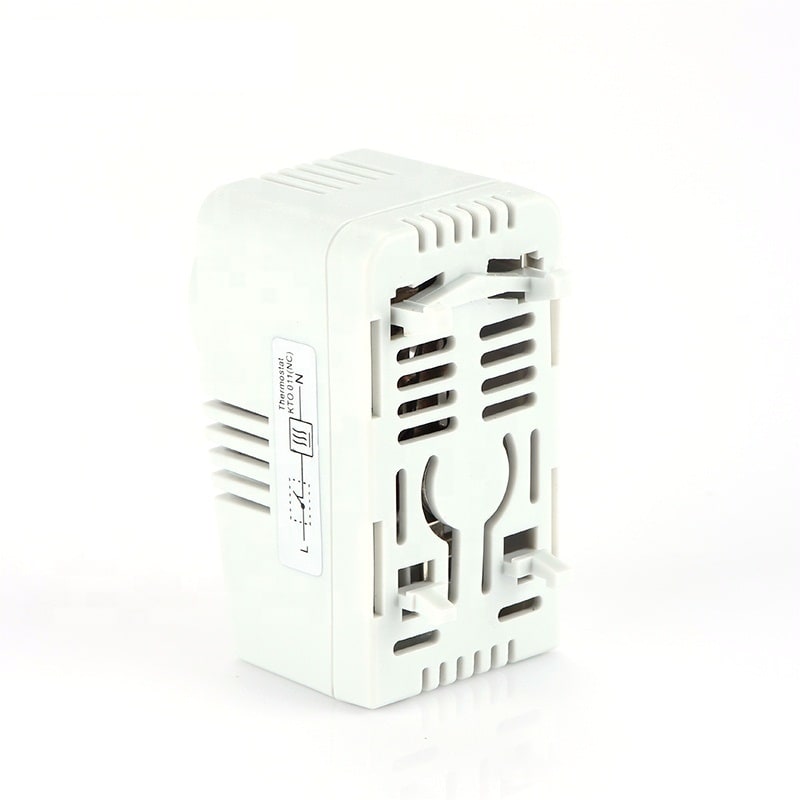

DOSSY DSTO01-H
- SKU: DSTO01-H
$1.12 $15.00
- Manufacturer: DOSSY
Product Information
Fan Heater Thermostat Normal Close
Specifications
Specifications DSTO01-H
| Color | Red |
| Switch temperature difference | 7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Contact resistance | <10mΩ ( Incidental connection line) |
| Service life | > 100,000 cycles |
| Max. Switching capacity | 250VAC, 10 (2) A 120VAC, 15 (2) A 30W DC at 24V to 72V DC |
| Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm² |
| Installation | 35mm DIN Installation Guide |
| Dimensions | 60x33x47mm |
| Weight | 44g/pcs |
| Fitting postion | Variable |
| Opearing/storage temperature | -20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F) |
| Protection IP | IP20 |
