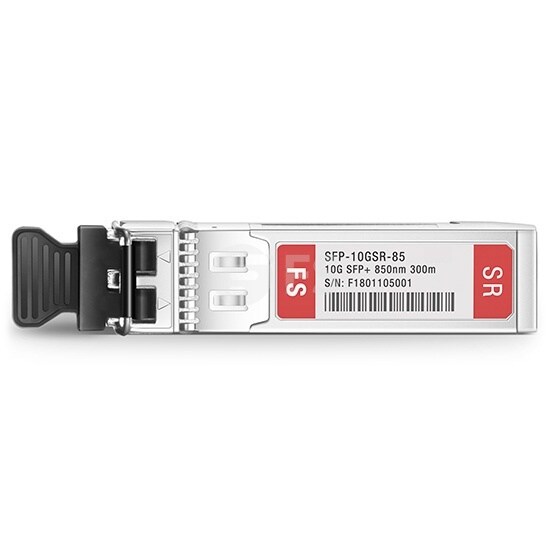

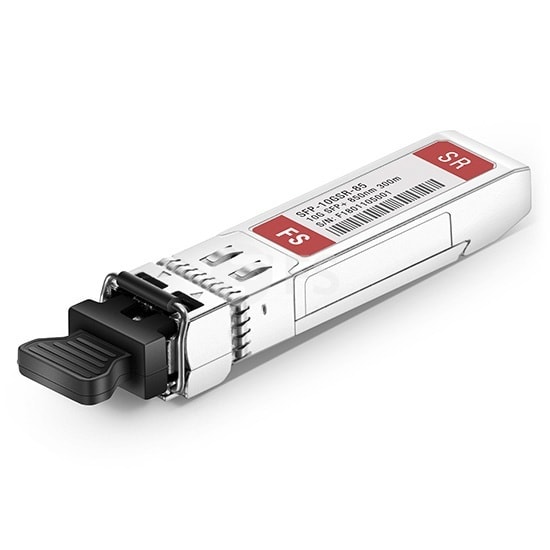

FS.com SFP-10GSR-85
- SKU: SFP-10GSR-85
$26.00
Product Information
10GBASE-SR SFP+ 850nm 300m DOM LC MMF Transceiver Module for FS Switches
Specifications
Specifications SFP-10GSR-85
| Cisco Compatible | SFP-10G-SR |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 300m@OM3/400m@OM4 |

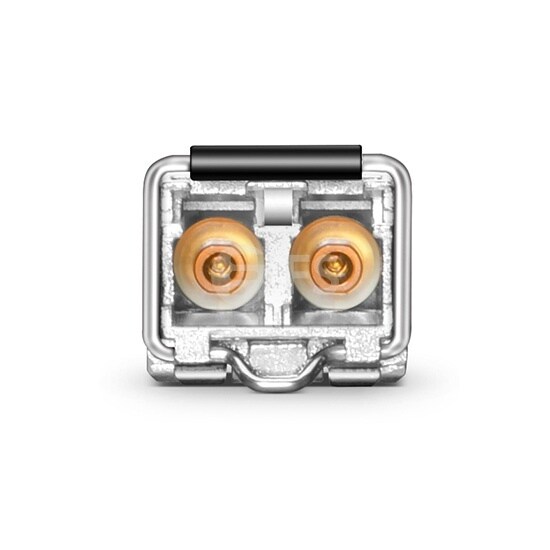

| Connector | LC Duplex |
| Media | MMF |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| DDM/DOMSupported | Commercial |
| Temperature Range | -5 to 70°C (23 to 158°F) |
| TX Power | -7.3~-1dBm |
| Receiver Sensitivity | < -11.1dBm |
| Typical Power Consumption | ≤0.6W |
| Receiver Overload | 0.5dBm |
| Bit Error Ratio (BER) | 1E-12 |
| Extinction Ratio | >3dB |
| EMC (Electro Magnetic Compatibility) | Supported |
| MTBF | 1,000,000 Hours |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Weight | 0.075 lbs |
| Dimensions (W x D x H) | 0.52" × 2.22" × 0.33" in |
