FS.com SFP-10GLR-31
- SKU: SFP-10GLR-31
$35.10
Product Information

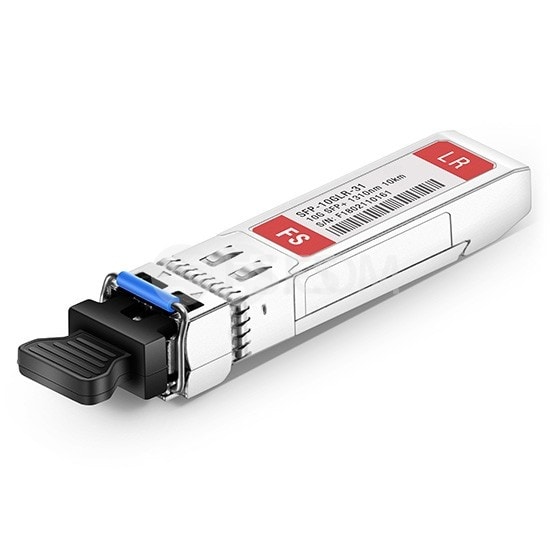

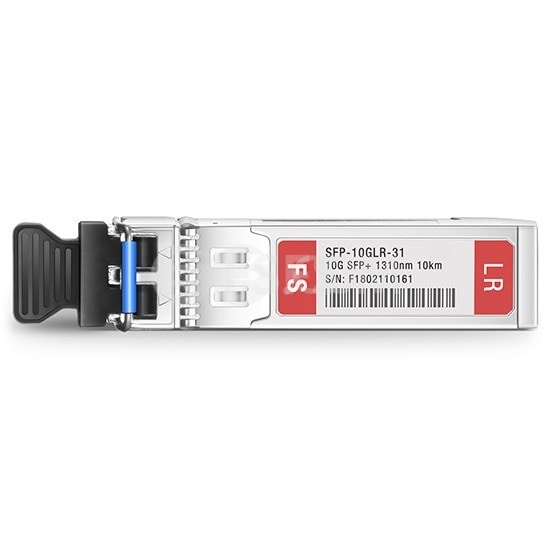

10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver Module for FS Switches
Specifications
Specifications SFP-10GLR-31
| FS Genuine | SFP-10GLR-31 |
| Vendor Name | FS |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10km |
| Connector | LC Duplex |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| DDM/DOM | Supported |
| Commercial Temperature Range | -5 to 70°C (23 to 158°F) |
| TX Power | -8.2~0.5dBm |
| Receiver Sensitivity | <-14.4dBm |
| Power Consumption | <1W |
| Receiver Overload | 0.5dBm |
| Bit Error Ratio (BER) | 1E-12 |
| Extinction Ratio | >3.5dB |
| EMC (Electro Magnetic Compatibility) | Supported |
| MTBF | 1,000,000 Hours |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
