Product Information

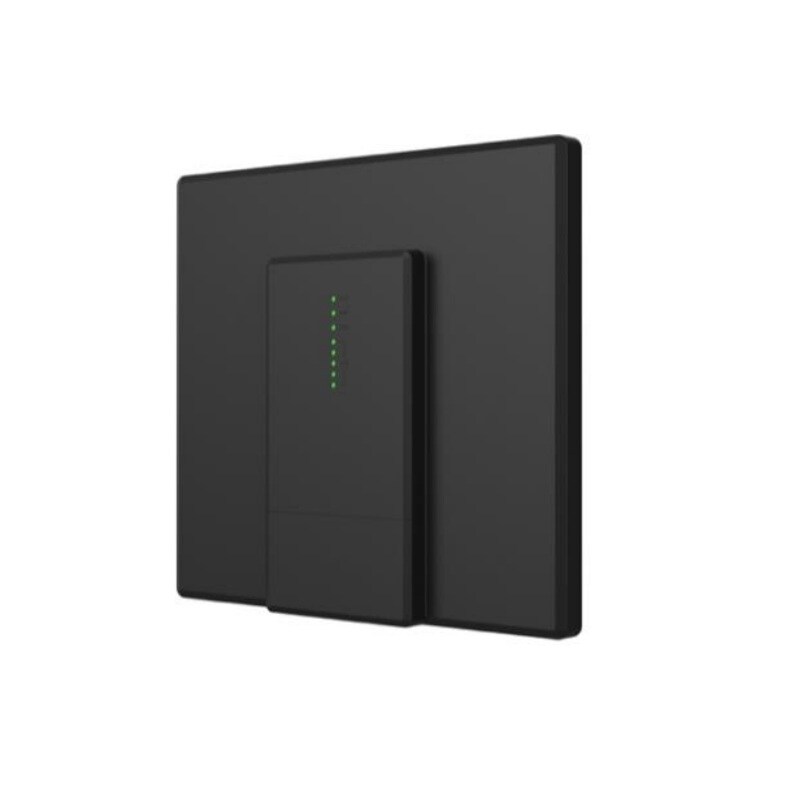

Global Telecom Titan2000 CAT12/15 LTE Advanced Modem
Specifications
Specifications Titan2000
| Dimension | 260mm * 260mm * 29mm |
| Antenna Type | IPEX-1 Connectors (x8) |
| Power | Gigabit PoE 48V x 0.5A |
| Weight | 1.5 kg |
| Power consumption | Average: 6W，Peak: 12W |
| Temperature | Operating temperature -35~55 ºC, Storage temperature -40~85 ºC |
| Standard | 3GPP LTE Release13 |
| Duplex mode | TDD & FDD with 8Rx/2Tx Design |
| Frequency | B2, B4, B5, B12, B17, B25, B26, B41, B66, B71 |
| Bandwidth | 1.4 MHz, 3 MHz, 5MHz, 10MHz, 15 MHz, 20 MHz |
| Modulations | DL: QPSK, QAM16, QAM64, QAM256 UL: QPSK, QAM16, QAM64 |
| DL MIMO & CA | 8x4 MIMO & CA Up to 4CC |
| UL Support | UL CA (2CC) & QAM64 |
| Tx Power | 23dBm ±1dB per Tx (Up to 2 Tx) |
| Networking Interface | Standard PoE |
| Management | Plug and Play Support Http, Https, Telnet, SSH, OMA-DM, SIMOTA |
| Operating system | Driverless and Host-less Support Linux, Mac OS, Android, Windows XP, Vista, and Windows 7/8/10 |
