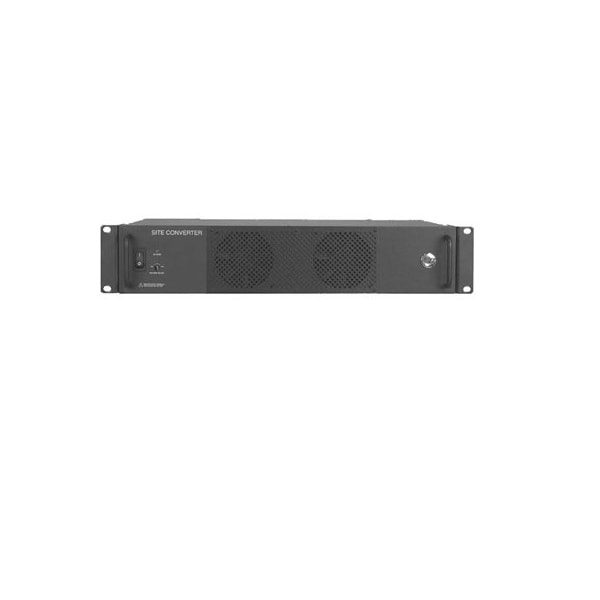

ICT Site Converter Series 20-60V - 12V / 70 Amp Isolated Converter

ISP Supplies supplies the Innovative Circuit Technology Site Converter Series 70 amp isolated converter, rack mountable. 20-60 VDC input voltage range, 12-14 VDC output voltage range. The ICT Site Converter Series of high current, high efficiency rack mount DC to DC converters are designed for dual-voltage site applications where a 24 or 48 volt DC input needs to be converted to a 12 or 24 volt DC output to power two-way radios, repeaters, RF amplifiers, trunking systems, or other sensitive electronic equipment. The wide-ranging input of 20 to 60 volts DC allows the ICT Site Converter to support a variety of input voltages. There are four models available to support peak current of 35 or 50 amps at 24 volt output and 70 or 100 amps at 12 volt output. Efficiency is 90%, meaning less energy will be lost in the conversion process. The ICT Site Converter is fully isolated, and can be used in positive or negative ground environments.

Feature Highlights:

• 90% conversion efficiency

• Converts 20-60 volts DC input to 24 or 12 volts DC output

• 24 volt output models for 35A and 50A, 12 volt models for 70A and 100A

• Fully isolated design for positive or negative ground installations

• 2RU 19 inch rack mount chassis with adjustable mounting position

• Adjustable output voltage trim

• Front panel power switch

• Remote alarm and remote shutdown contacts

• 2 year warranty

• –30 to +60 °C operating temperature range
