Product Information

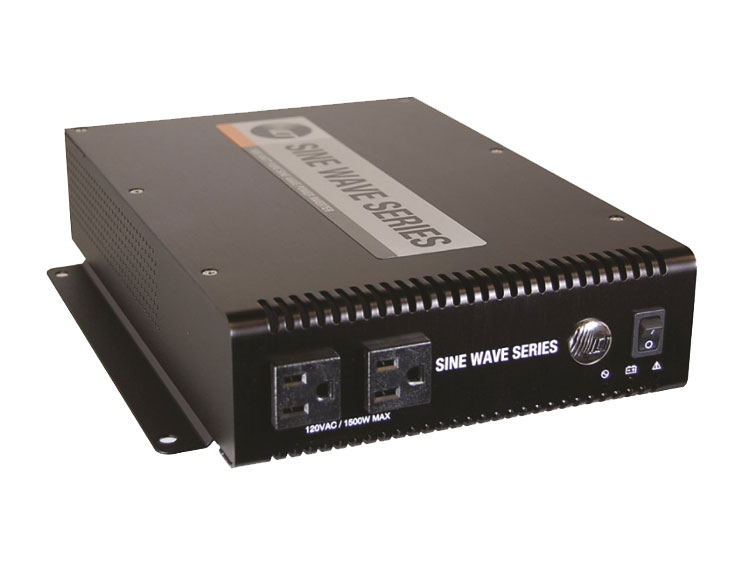

The ICT Sine Wave Series inverter is designed for applications in communications sites and industrial power, providing 1500 watts of pure sine wave AC power. Flange mounts are standard, and an optional 19" Rack Mount Tray holds 1 or 2 Sine Wave Series units. The inverter features standard Form C contacts and hardwired AC connectors at the rear. With the Ethernet option, users can remotely monitor and control outputs, enabling power cycling of connected AC loads as needed.
For alternative energy applications a 1741-compliant DC wiring box with electrical knockouts is available. The optional static transfer switch senses AC grid conditions and automatically switches to DC power when the grid fails.
Product Features:- 1500 watts of pure sine wave output
- 12, 24, or 48 VDC input
- 93% peak efficiency
- Low idle current draw
- Front AC outlets and rear AC wiring position
- Heavy duty DC input bus bars
- Form C alarm contacts
- Standard flange mounting
- Optional TCP/IP Ethernet port for remote management
- Optional transfer relay
- Optional 2RU Rack Mount Tray for 1 or 2 inverters
- Optional DC wiring box for code compliant installations
- 2 year warranty
Specifications
Specifications:
| Weight | 8.0 Lbs | 3.6 Kg |
| Frequency Range | 60Hz ±0.2Hz |
| Power | |
| Surge Power (2 seconds) | 3000 Watts |
| Continuous Output Power | 1500 Watts |
| Peak Efficiency | 93% |
| Input Voltage Range | 21.0VDC - 32.0VDC |
| Battery Low Shutdown | 21.0VDC |
| Switched Off Power Draw | <15 mW |
| Output Voltage Range | 115VAC ± 5VAC |
| Harmonic Distortion (typical) | <3% |
| Mechanical | |
| Dimensions | 12.90"L x 8.08"W x 2.56"H |
| DC Input Connectors - Rear | Bus bars, 5/16" holes |
| AC Outlets - Front | 2 x NEMA 5-15P |
| AC Outlets - Rear | Touch Safe Terminal Block |
| Remote Alarm Connectors | Terminal Block (#16 to #24 AWG) |
| Environment | |
| Operating Temperature Range | -30C to +60C Derate 1%/C > 40C |
| Humidity | 10% - 90% RH (non-cond.) |
