IlSintech KF4A
- SKU: KF4A
$5,500.00
Product Information

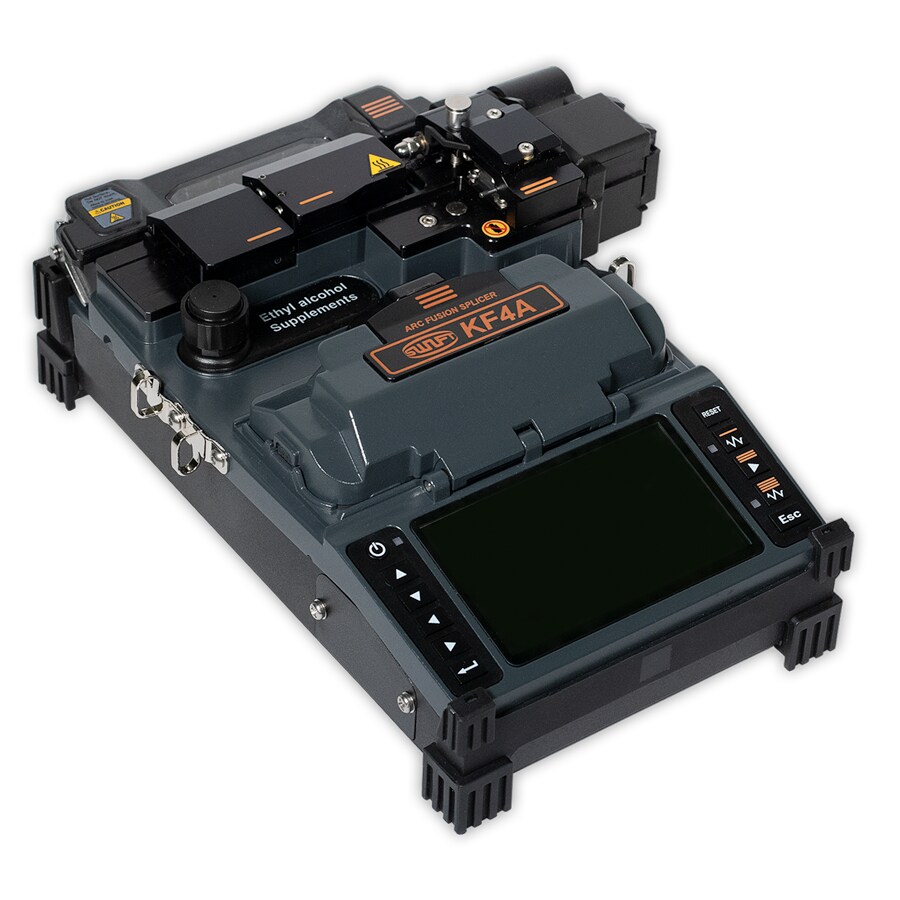

Swift KF4A Active Cladding Alignment, ALLINONE. Kit Includes: * Swift KF4A Arc Fusion Splicer Body * EI-24 Spare Electrodes * CT-01 Cooling tray * KF-3400 Battery * 3300 Allen Wrenches * HS-900 Fiber Holder, 900 micron (1 Pair) * KF4-SC Splice on Connector Holder, SC/FC * KF4-ILC Splice on Connector Holder, LC * AC Charger * Carrying Case - Hard Case
Specifications
Specifications KF4A
| Fiber alignment | IPAAS Clad to Clad Alignment |
| Applicable type of fibers | 0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable |
| Fiber count | Single fiber |
| Applicable fiber dimensions | Cladding diameter : 125μm, Coating diameter : 150μm~3mm |
| Fiber setting and cleaved length | 0.20in to 0.63in |
| Splicing modes | Splice mode: 300, Heat mode: 100 |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS:0.04dB, NZDS: 0.04dB |
| Return loss | > 60dB |
| Splicing time | Typical 7sec with SM |
| Sleeve heating time | Typical 13sec with IS-60 mode, IS-60 sleeve |
| Applicable protection sleeve | 2.4in, 1.5in and micro sleeves |
| Storage of splice result | Data : 5,000ea Up to, Image : 5,000ea Up to |
| Tension test | 1.96N to 2.25N |
| Operating condition | Altitude: 0~5,000m above sea level, Temperature: -14°F~122°F, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof |
| Storage condition | Temperature: 40°F~176°F, Humidity: 0~95% |
| Dimension | 132(W) x 212(L) x 73(H)mm (Without rubber protector) |
| Weight | 1.5kg(Including battery) |
| Viewing method and display | 2 AXIS Two CMOS cameras with 4.3-inch color LCD monito |
| Fiber view and magnification | X/Y : 110X , Max :220X |
| Power supply | Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC Charger |
| No. of splice cycles with battery | Typical 200 cycles |
| Electrode life | 21,000 splices |
| Blade Life | 75000 |
| Terminals | USB |
