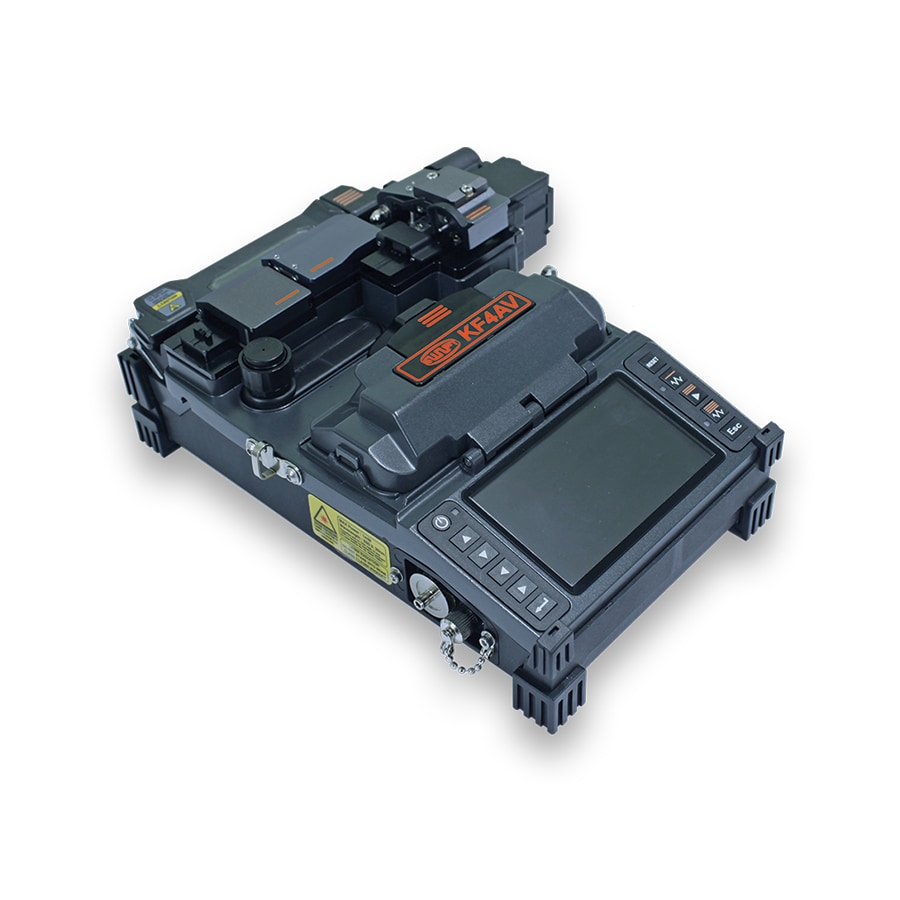

Ilsintech Swift KF4A All in One Active Clad Arc Fusion Splicer
- SKU: KF4AV
$6,100.00
- Manufacturer: IlSintech
- Data Sheet: Download
Product Information
IlSintech Swift KF4AV All in One Active Clad Arc Fusion Splicer
Specifications
Specifications KF4AV
| Fiber alignment | IPAAS Clad to Clad Alignment |
| Applicable type of fibers | 0.25mm; 0.9mm; 2.0mm; 3.0mm Indoor cable |
| Fiber count | Single fiber |
| Applicable fiber dimensions | Cladding diameter: 125㎛; Coating diameter: 150㎛~3mm |
| Fiber setting and cleaved length | 0.20in to 0.63in |
| Splicing modes | Splice mode: 300; Heat mode: 100 |
| Typical splice Loss | SM: 0.02dB; MM: 0.01dB; DS:0.04dB; NZDS: 0.04dB |
| Return loss | > 60dB |
| Splicing time | Typical 7sec. with SM |
| Splice loss estimate | Available |
| Sleeve heating time | Typical 13sec. with IS-60 mode, IS-60 sleeve |
| Applicable protection sleeve | 40mm (2.4in); 60mm (1.5in) micro sleeves |
| Storage of splice result | Data: up to 5,000ea; Image: up to 5,000ea |
| Tension test | 1.96N to 2.25N |
| Operating condition | Altitude: 0~5,000m above sea level; Temperature: -10˚C~50˚C (-14˚F~122˚F); Humidity: 0~95%; Wind: 15m/s; non-condensing, dust proof, water proof, shock proof |
| Storage condition | Temperature: -40˚C~80˚C (40˚F~176˚F); Humidity: 0~95% |
| Dimension | 132(W) x 212(L) x 73(H)mm (without rubber protector) |
| Weight | 1.5kg (Including battery) |
| Viewing method and display | 2 AXIS Two CMOS cameras with 109mm (4.3in) color LCD monitor |
| Fiber view and magnification | X/Y: 110X; Max:220X |
| Power supply | Li-ion battery (DC 14.8V, 3400mAh); 100 ~ 240V AC Charger |
| No. of splice cycles with battery | Typical 200 cycles |
| Electrode life | Up to 38,000 splices |
| Blade life | Up to 75,000 fibers |
| Terminals | USB |
