IlSintech LCD-SM-UPC-09-SA
- SKU: LCD-SM-UPC-09-SA
$15.28
- Manufacturer: IlSintech
Product Information

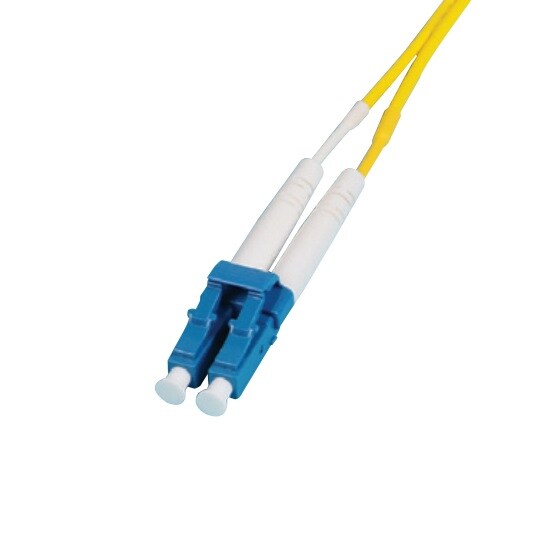

Splice On Connector, LC Duplex, SM, UPC, 900 micron
Specifications
Specifications LCD-SM-UPC-09
| Connector Style | LC |
| Diameter | 900um |
| Polish Type | UPC |
| Repeating Operation Test | 500 Cycle, ≤ 0.2dB |
| Insertion Loss | ≤ average 0.3dB (≤ max 0.2dB) |
| Return Loss | ≥ 50dB |
| Temperature Range | -40°C~85°C |
| Fiber | Singlemode 9/125 |
| Tensile Strength | < 40N for 0.9mm, 0.2mm fiber |
| Cable | 0.9mm, 2.0mm Cable |
