Product Information

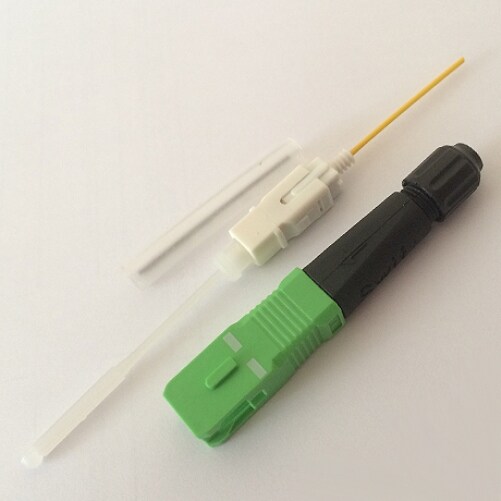

Splice On Connector, SC, SM, APC, 2mm and 3mm
Specifications
Specifications SC-SM-APC-20/30
| Fiber | SM 9/125 | |
| Return Loss | ≥ 50dB, ≥ 60dB | - |
| Insertion Loss | ≤ average 0.2dB (≤ max 0.3dB) | |
| Tensile Strength | ≥34.3N(≥3.5kgf) for 0.9mm Fiber ≥60N(6.1Kgf) for 2.0, 3.0mm code, Indoor Cable | |
| Repeating Operation Test | 500 Cycle, ≤ 0.2dB | |
| Temperature Range | -40°C~85°C | |
| Cable | 2.0, 2.4, 3.0mm cable, indoor cable (2mm x 3mm) | |
