Jirous JRMC-1200-10/11 Duopack 10.1-11.7GHz 1200mm 41.5dBi 2pc
- SKU: JRMC-1200-10/11Ra DuoPack
$3,499.00
- Manufacturer: Jirous
- Data Sheet: Download
Product Information

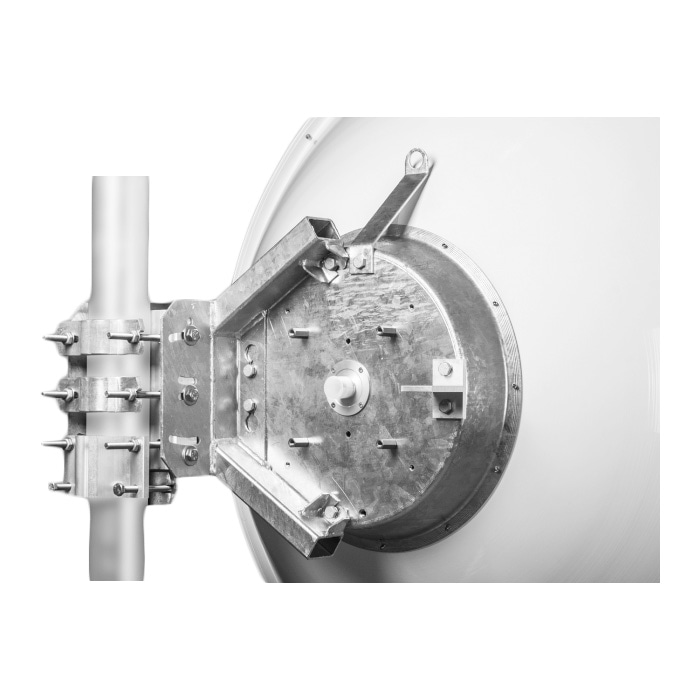

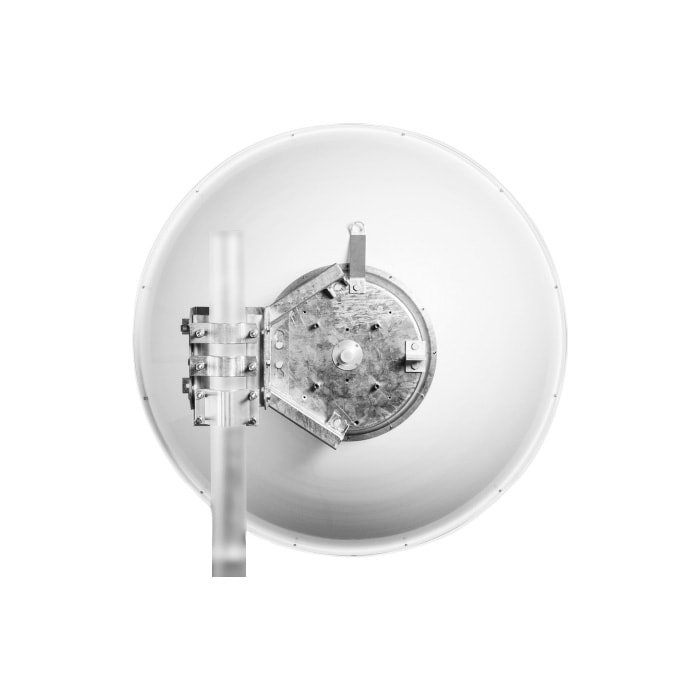

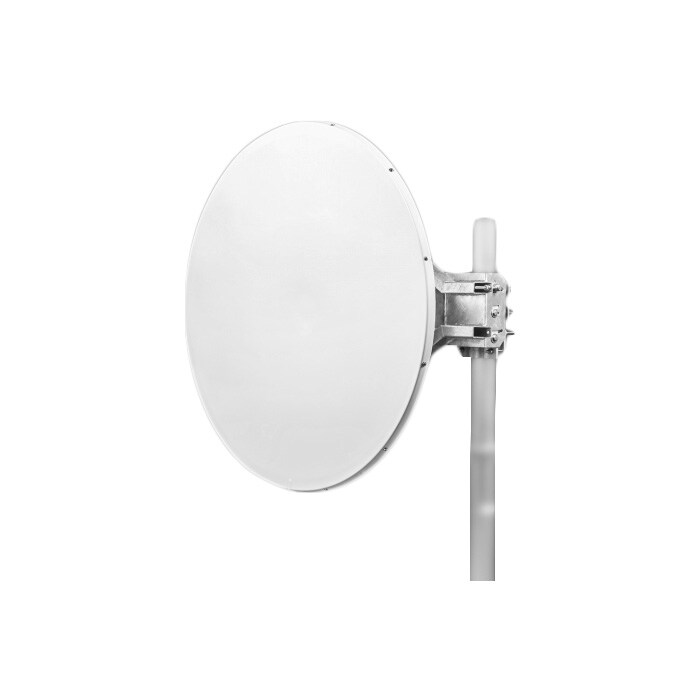

Jirous Parabolic antenna 10.1-11.7 GHz 1200mm (4-Foot) Dish 41.5 dBi (Pair)
Specifications
Specifications JRMD-1200-10/11
| Electrical Parameters: | |
| Frequency range | 10.0 – 12.0 GHz |
| Gain – Low frequency | 39.5 ± 1 dBi |
| Gain – High frequency | 40.5 ± 1 dBi |
| Front to back ratio | ≥ 60.5 dB |
| Beamwidth-3 dB | 1.5° |
| Return loss | ≥ 16 dB/10.3 – 11.7 GHz |
| Polarization | Linear, vertical/horizontal |
| Electrical Compliance | US FCC Part 101A | 10.550 – 10.680 GHz US FCC Part 101B | 10.7 – 11.7 GHz Class 2 ETSI EN 302-217-4-2 |
| Mechanical Parameters: | |
| Parabola | Ø 1200 mm , aluminium alloy |
| Radom | UV steady plastic ABS |
| Input / output | Circle waveguide Ø 19 mm |
| Installation for mast | ø 80 - 120 mm ø 60 - 80 mm – with wind bracing set |
| Operating wind load | - without wind bracing set 110 km/h (68 mph) - with wind bracing set 140 km/h (87 mph) |
| Survival wind load | 210 km/h (130 mph) |
| Weight of antenna | 39.1 kg (86.0 lbs.) |
| Shipping dimensions – 1 pc | 1300 x 800 x 1430 mm / 70.3 kg (154.7 lbs) |
| Shipping dimensions – 2 pcs | 1300 x 1100 x 1430 mm / 108.7 kg (239.6 lbs) |
