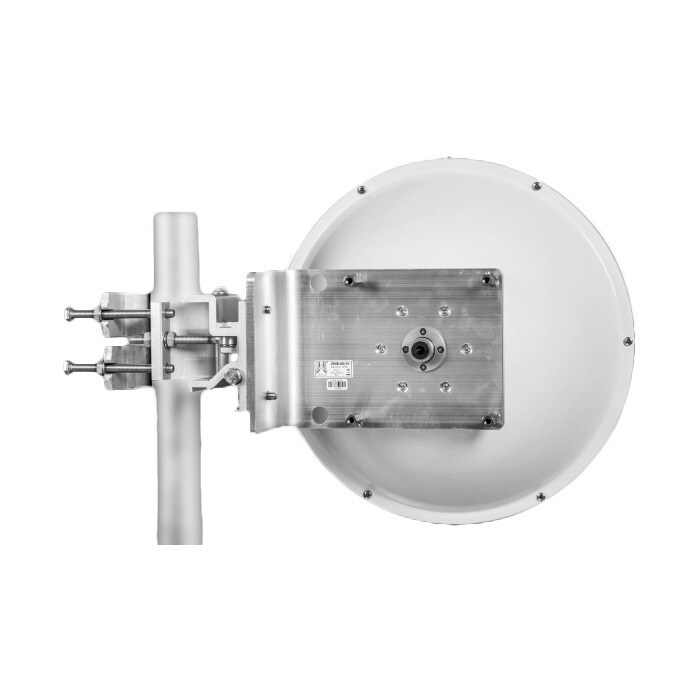

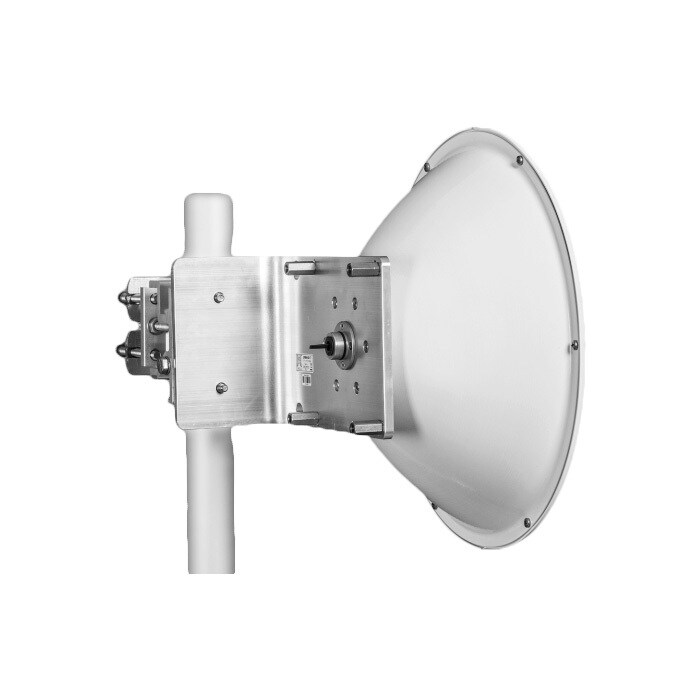

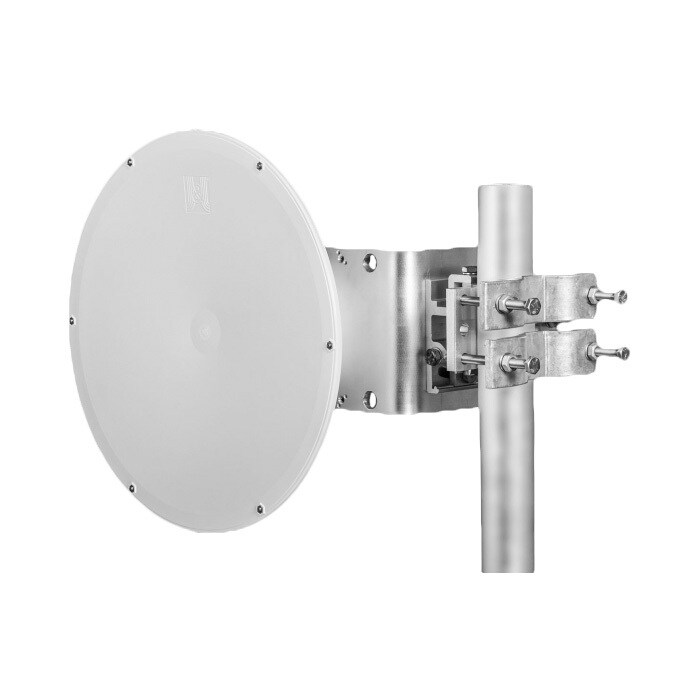

Jirous JRMC-400-24/26 Ra 24/26GHz Parabolic Antenna
Specifications
Specifications JRMB-400-24
| Electrical Spec | |
| Frequency range | 24.0 – 26.5 GHz |
| Gain | Low Band: 37.4 ± 1 dBi High Band: 38.2 ± 1 dBi |
| Front to back ratio | ≥ 64 dB |
| Beamwidth -3 dB | 2.0° ± 0.5° |
| Return loss | ≥ 18 dB |
| Polarization | Linear, Vertical / Horizontal |
| ETSI standard | US FCC Cat. B Class 3 ETSI EN 302-217-4-2 c1.5.1 |
| Mechanical Spec | |
| Parabola | Ø 400 mm, Aluminium alloy |
| Cover | UV steady plastic ABS |
| Input / output Circle waveguide | Ø 8 mm |
| Installation for mast | Ø 40 - 120 mm |
| Operating wind load | 180 km/h |
| Survival wind load | 240 km/h |
| Weight of antenna of holder | 4.9 kg (10.8 lbs.) 3.5 kg (7.7 lbs.) |
| Shipping dimensions | 485 mm x 485 mm x 350 mm |
