Product Information

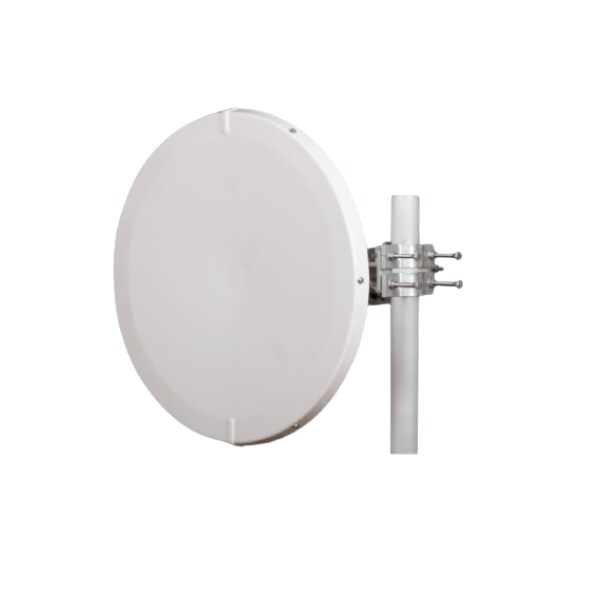

17-18GHz 680mm Parabolic Dish Antenna with Precision Holder for Racom Units
Specifications
Specifications JRMC-680-17/18 Ra
| Frequency range | 17.1 – 19.7 GHz |
| Gain – Low frequency 38.6 ± 1 dBi | |
| Gain – High frequency | 40.0 ± 1 dBi |
| Front to back ratio | ≥ 68 dB |
| Beamwidth-3 dB | 1.5° ± 0.5° |
| Return loss | ≥ 17 dB |
| Polarization | Linear, vertical/horizontal |
| Electrical Compliance | US FCC Cat. AClass 3 ETSI EN 302-217-4-2 v1.5.1 |
| Mechanical | |
| Parabola | ø 68 cm, Aluminium alloy |
| Radome | UV steady plastic ABS |
| Input/output | Circle waveguide Ø 11 mm |
| Installation on mast | ø 40 - 120 mm |
| Operating wind load | 180 km/h (112 mph) |
| Survival wind load | 240 km/h (149 mph) |
| Weight of antenna of holder | 6.35 kg (14 lbs.) 3.2 kg (7.0 lbs.) |
| Shipping dimension | 800 x 800 x 350 mm/ 13.6 kg (30 lbs.) |
