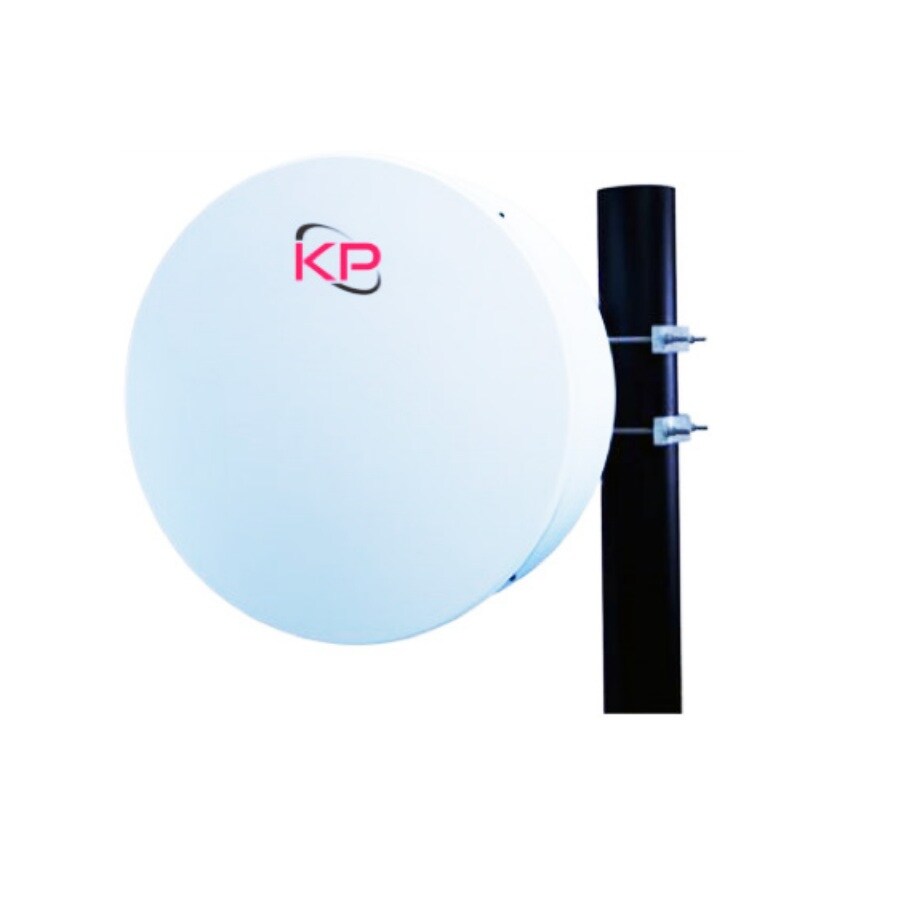

KP Performance Antennas 2 Ft High Performance Parabolic Antenna, Mimosa B11
- SKU: KP-11PDMM-2
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
ISP Supplies supplies the KP Performance Antennas 2 ft high performance parabolic antenna. This antenna is specifically designed for the Mimosa B11. The KP-11PDMM-2 is a 2 foot, 34 dBi parabolic antenna operating from 10.7 - 11.7 GHz. This high performance ETSI Class 2, FCC Cat B antenna includes a Mimosa B11® mounting kit and comes preassembled from the factory. This parabolic antenna also features dual polarization and boasts excellent front to back of 60 dB.
Features
• Stable gain over ultra-wide bandwidth of 10.7 - 11.7 GHz
• Comes preassembled from the factory for quickest time to tower
• Includes radome ensuring robust and reliable performance under the most challenging condition
• Optimized F/B & side-lobe suppression minimizes interference
• Includes Mimosa B11® mounting kit
• Installs in minutes to reduce service calls and installation time
• Heavy-duty bracket with fine elevation and azimuth adjustment
• Heavy-duty hardware survives 250Km/h wind speeds
Specifications
Specifications KP-11PDMM-2
| Electrical | |
| Frequency Band | MHz 10.7-11.7 |
| Gain (Low | Mid | High) | dBi 34 | 34.3 | 34.4 |
| Polarization | Dual |
| Horizontal HPBW | Degree 3.4 |
| Vertical HPBW | Degree 3.4 |
| Front-to-Back Ratio @ 180°±30° | dB 60 |
| Cross-polarization Ratio over HPBW | dB 30 |
| VSWR | 1.5 typ | 1.8 max |
| Return Loss | dB 14 typ | 11 max |
| Port-to-Port Isolation | dB 30 typ | 24 max |
| Max. Input Power per Port | W 100 |
| Impedance | Ohms 50 |
| Mechanical | |
| Diameter, nominal | 2ft | 0.6m |
| Antenna Color | White |
| Antenna Input | WR90 waveguide |
| Radome Material | UV resistant ABS |
| Temperature Range | -40° to +60° C |
| Wind Speed Operational | 145 km/h | 90 mph |
| Fine Azimuth Adjustment | + / - 10 degrees |
| Wind Speed Survival | 250 km/h | 155 mph |
| Fine Elevation Adjustment | + / - 10 degrees |
| Wind Load, Axial (FA) | 899 N | 202 lbs |
| Mounting Pipe Diameter | 2 – 4.5 in | 5.1 – 11.4 cm |
| Wind Load, Side (FS) | 445 N | 100 lbs |
| Net Weight | 40 lbs |
| Twisting Moment (MT) | 194 ft-lbs | 263 Nm |
| Regulatory Compliance | |
| FCC P | art 101 Cat. B |
| Industry Canada Compliance | undeclared |
| ETSI | 302217 R1 C2 |
| RoHS-compliant | Yes |
