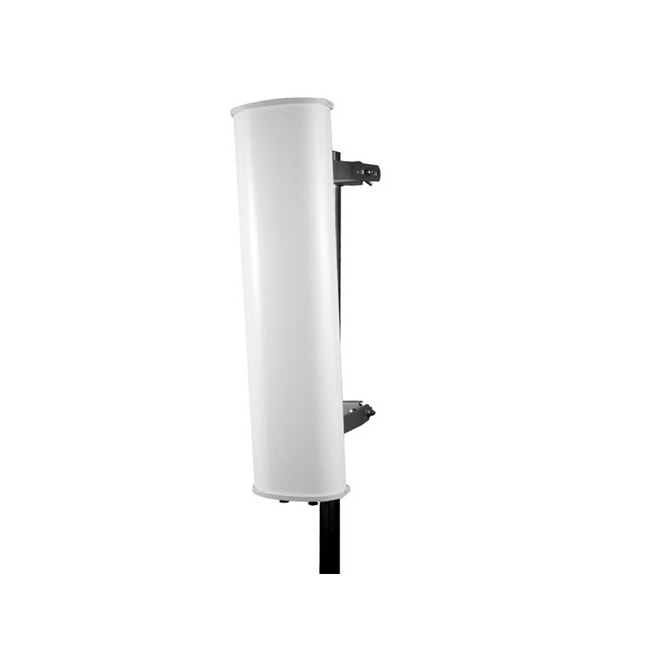

2GHz 120°±45°Slant 14.5 dBi/Designed for LTE
- SKU: KP-2DP120S-45
$348.72 $387.47
+ $74.59 Tariff
Product Information
2GHz 120°±45°Slant 14.5 dBi/Designed for LTE
Specifications
Specifications KP-2DP120S-45
| Frequency Range | 2.3 GHz to 2.7 GHz |
| Polarization Type | 45 Deg. Slant |
| Gain | 14 dBi |
| Vertical Beamwidth | 8° |
| Horizontal Beamwidth | 120° |
| Electrical Downtilt | 1° |
| F/B Ratio | 28 dB |
| VSWR | 2:1 |
| Cross Polar Ratio | 25 dB |
| Port Isolation | 25 dB |
| Connector Type | 2 x Type N Female |
| Dimension | 29 in L x 12 in W x 9 in H |
| Weight | 20 lbs |
