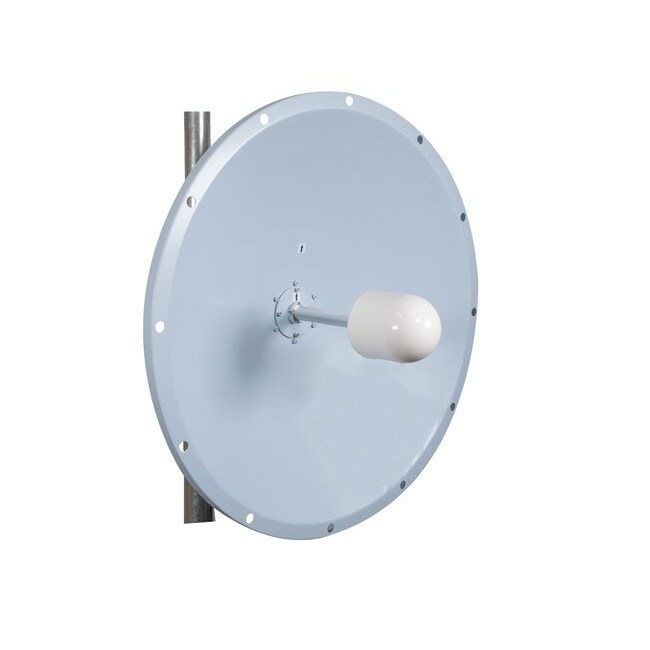

3.5- 3.8GHz, 2ft, Dual Polarizaiton, N-type Connector, Parabolic Antenna
- SKU: KP-35PD2-N
$253.43 $281.59
+ $54.21 Tariff
Product Information
Specifications
Specifications KP-35PD2-N
| Frequency Range | 3.5 GHz to 3.8 GHz |
| Dish Diameter | 25" (2-Foot) |
| Polarization Type | H/V |
| Gain | 24 dBi |
| Vertical Beamwidth | 9° |
| Horizontal Beamwidth | 9° |
| Cross Polarization | 30 dB |
| F/B Ratio | 30 dB |
| Connector Type | 2 x N-Type Female on 36" LMR200 Cables |
| Mounting Mast Diameter | 1.2 to 2.5 in(30.48 to 63.50 mm) |
| Temperature Range | -40 to +60 deg C |
| Wind Survivability | 125 MPH (201.17 KPH) |
| Dimension | 23.6 in L x 23.6 in W x 12.6 in H |
| Weight | 6.6 lbs |
